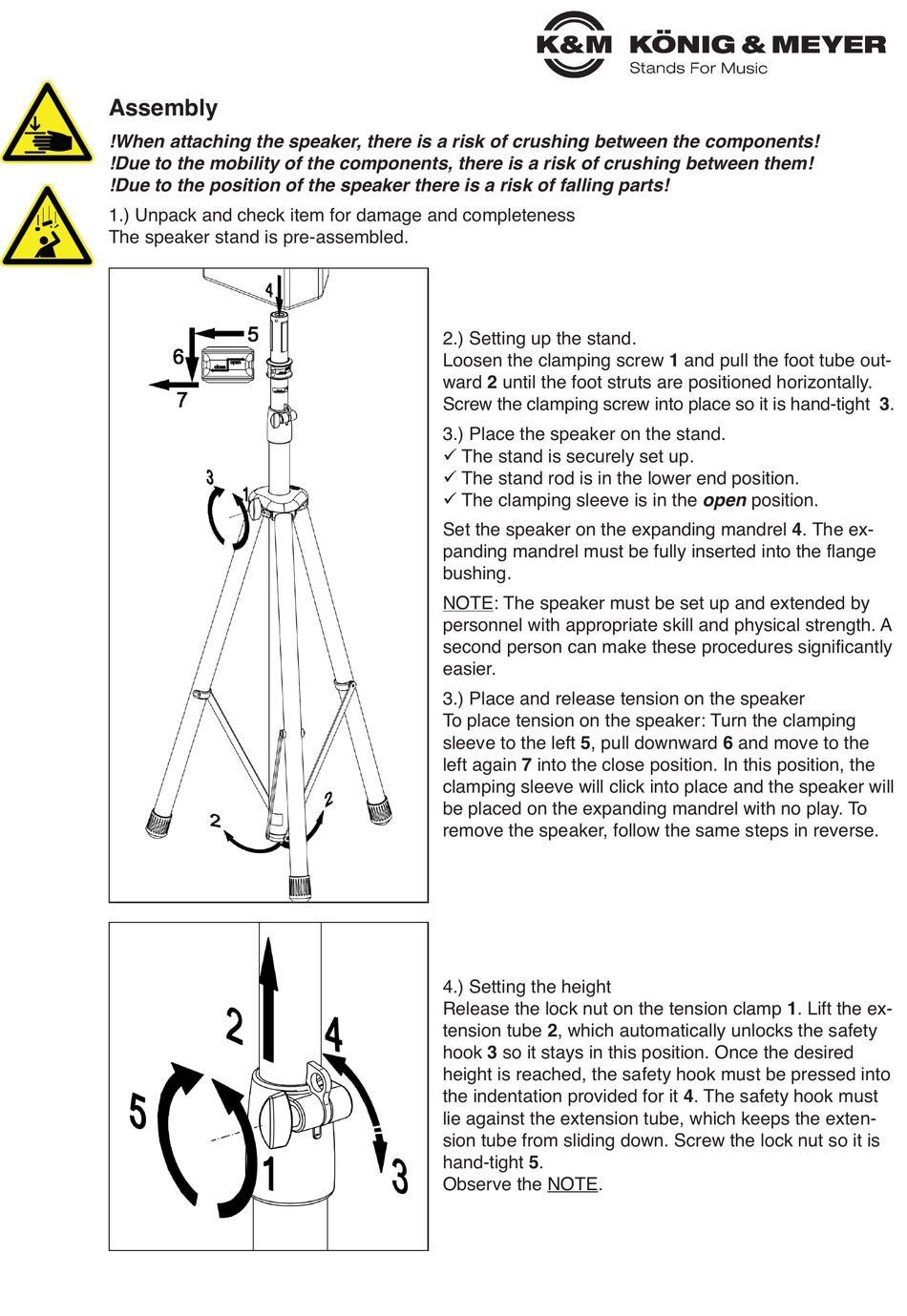

Konig & Meyer Easy Lock 21439 Nutzungsinformation Seite 6

Assembly
!When attaching the speaker, there is a risk of crushing between the components!
!Due to the mobility of the components, there is a risk of crushing between them!
!Due to the position of the speaker there is a risk of falling parts!
1.) Unpack and check item for damage and completeness
The speaker stand is pre-assembled.
2.) Setting up the stand.
Loosen the clamping screw 1 and pull the foot tube out-
ward 2 until the foot struts are positioned horizontally.
Screw the clamping screw into place so it is hand-tight 3.
3.) Place the speaker on the stand.
 The stand is securely set up.
 The stand rod is in the lower end position.
 The clamping sleeve is in the open position.
Set the speaker on the expanding mandrel 4. The ex-
panding mandrel must be fully inserted into the flange
bushing.
NOTE: The speaker must be set up and extended by
personnel with appropriate skill and physical strength. A
second person can make these procedures significantly
easier.
3.) Place and release tension on the speaker
To place tension on the speaker: Turn the clamping
sleeve to the left 5, pull downward 6 and move to the
left again 7 into the close position. In this position, the
clamping sleeve will click into place and the speaker will
be placed on the expanding mandrel with no play. To
remove the speaker, follow the same steps in reverse.
4.) Setting the height
Release the lock nut on the tension clamp 1. Lift the ex-
tension tube 2, which automatically unlocks the safety
hook 3 so it stays in this position. Once the desired
height is reached, the safety hook must be pressed into
the indentation provided for it 4. The safety hook must
lie against the extension tube, which keeps the exten-
sion tube from sliding down. Screw the lock nut so it is
hand-tight 5.
Observe the NOTE.
