DIP switch

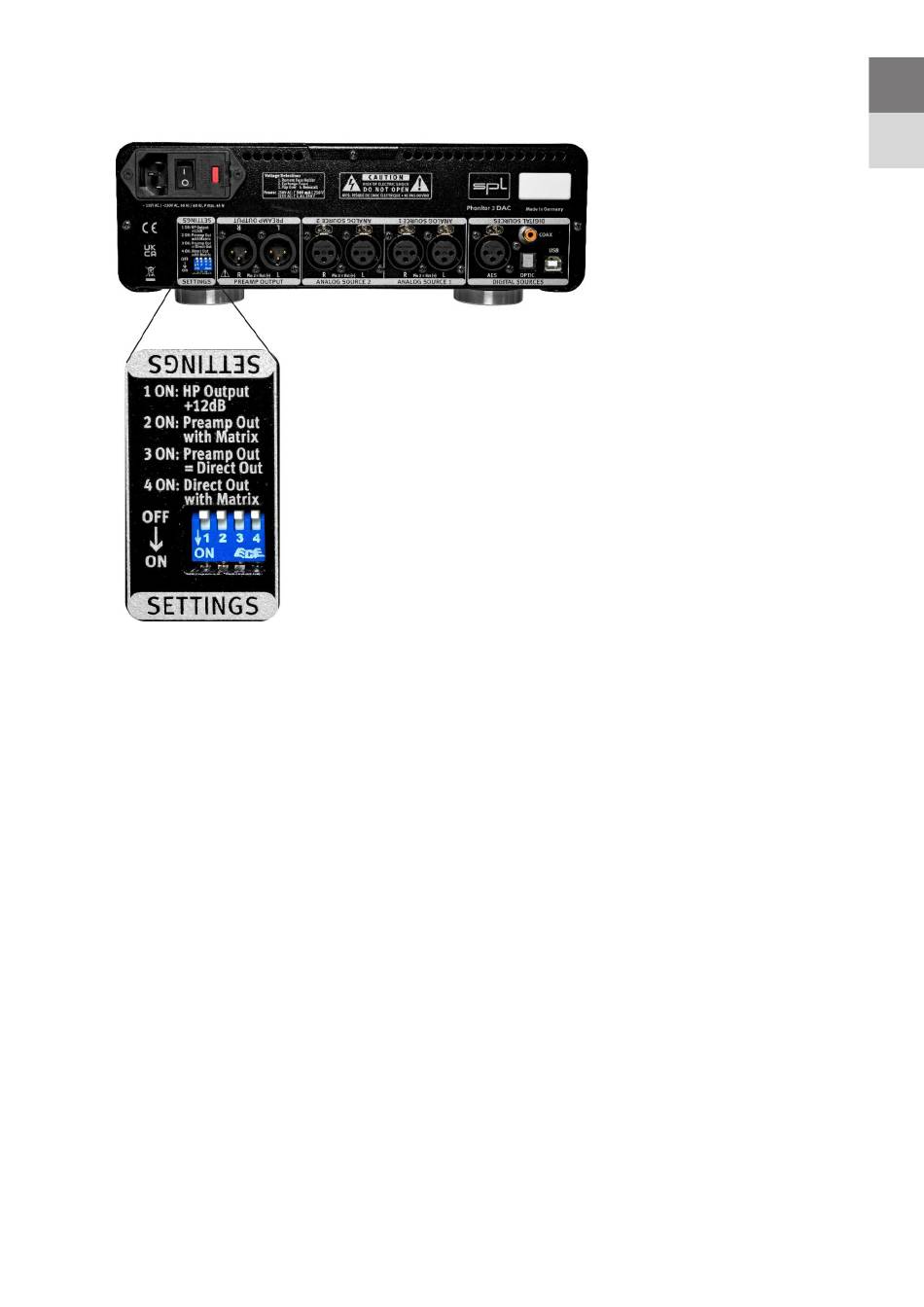

With the DIP switches on the rear of the device, the following
basic settings can be chosen:
DIP switch 1: ON = Headphone output is increased by +12 dB.
DIP switch 2: ON = Preamp Out with Phonitor Matrix
The Phonitor Matrix is activated for the XLR outputs
Preamp Out.
DIP switch 3: ON = Preamp Out becomes Direct Out (without
volume control)
The selected input signal is fed to the XLR output without chan-
ging the volume or other parameters (except phase inversion).
DIP switch 4: ON = Direct Out with Phonitor Matrix
The Phonitor Matrix is activated for the Direct Out XLR outputs.
