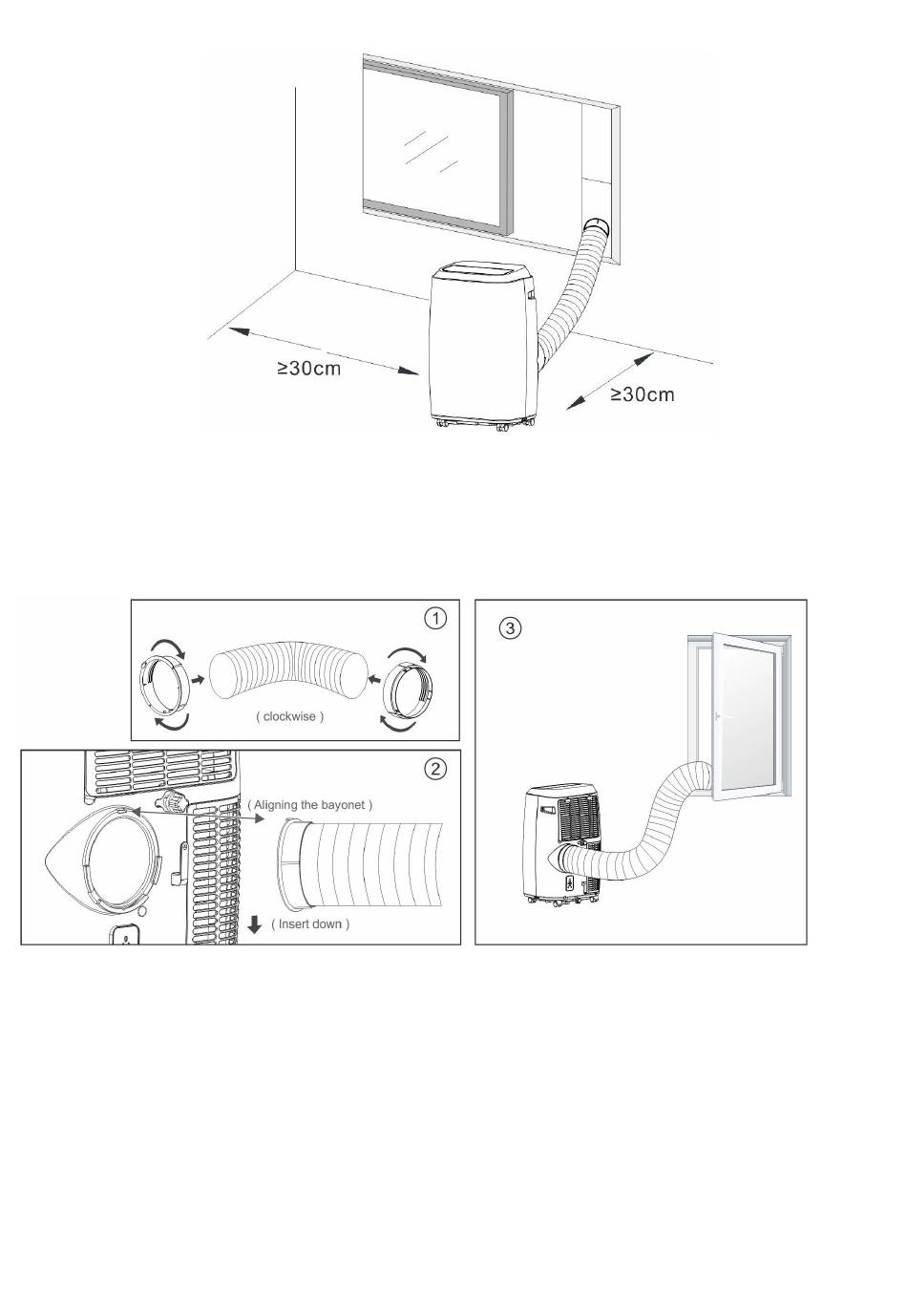

7.2 Introduction to Exhaust Hose Installation
Temporary installation
1. Twist the housing adaptor and the window Connector to the ends of the exhaust hose.
2. Insert the fixing clip of the housing adaptor into the openings at back of the air
conditioner.
3. Put the other end of the exhaust hose to the near windowsill(see Fig.9).
Window Slider Kit Installation
The installation manner of window slider kit is mostly in "horizontal" or "vertical". As
shown Fig.10 and Fig.10a, check the min. and max. size of the window before the installation.
1. Install the window kit on the window (Fig.10, Fig.10a);
Fig.8
Fig.9
