DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the drawing pages of this manual.
1.
Sanding pad
2.
Switch
3.
Lever for quick-fastening of accessories
4.
Oscillation speed adjustmant dial
* Dierences may appear between the product and drawing.
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY/SETTINGS
INFORMATION
EQUIPMENT AND ACCESSORIES
1. Various working tips
2. Sanding paper (80#)
3. Transport case

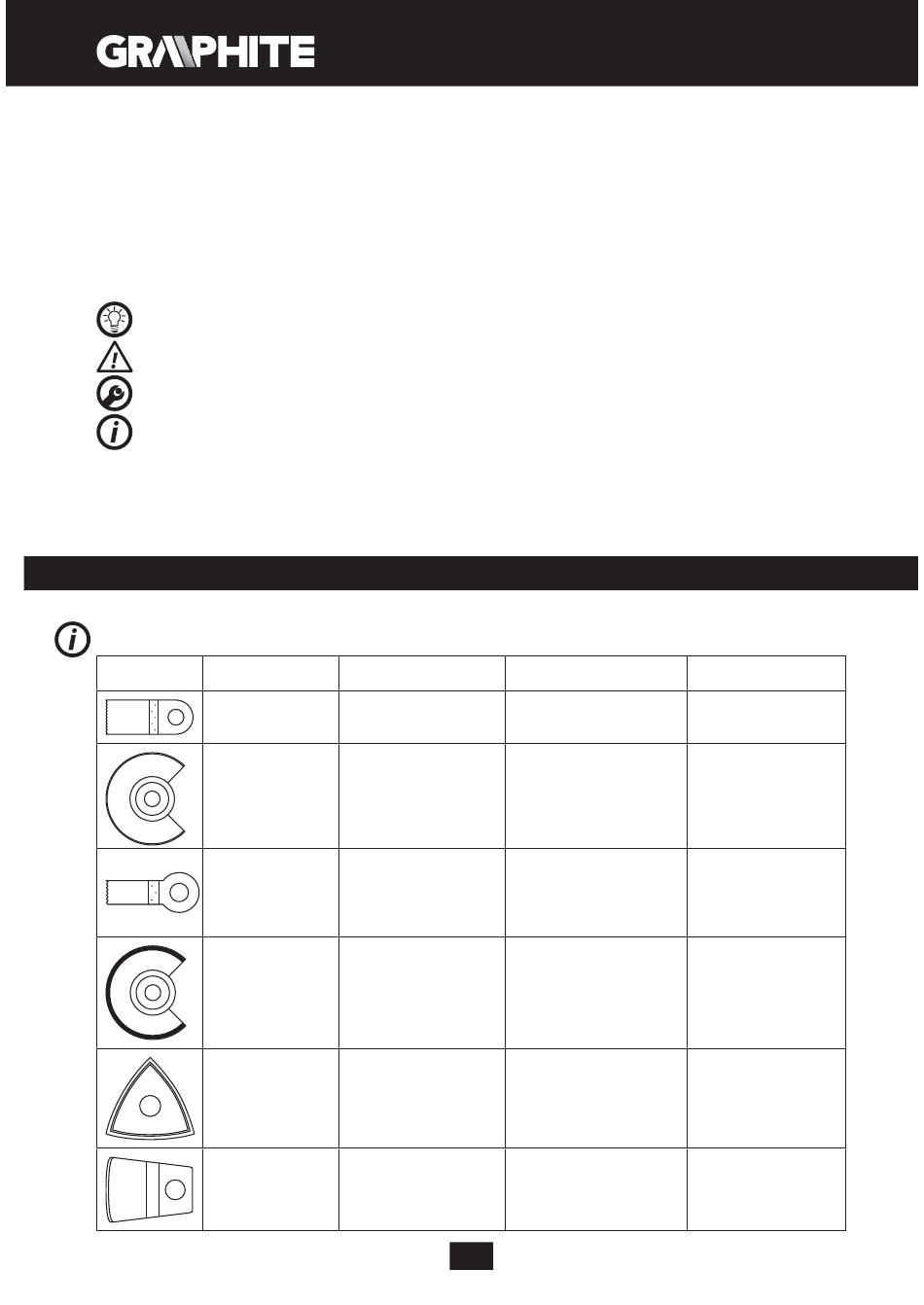

SELECTION OF WORKING TOOL
Below table presents examples of use for various working tools.
Name
HSS blade for metal
Half-round HCS wheel
for wood
HCS blade for wood
Half-round wheel with
tungsten coat
Delta sanding pad
Stiff scraper
- 6 pcs
- 5 pcs
- 1 pce

PREPARATION FOR OPERATION

Type of material
Metal (e.g. nails, bolts,
small sections), non-
ferrous metals
Wood, wood-based
materials, plastics
Wood, wood-based
materials, plastics
Cement joints, soft
ceramic tiles, hard
plastics and other
materials
Wood, wood-based
materials, abrasive
materials
Linings, oors, ceramic
tiles
12
Intended use
Small dividing and plunge
cutting
Dividing and plunge cutting
in corners and hardly
accessible places, near
surface
Dividing and plunge cutting
in corners and hardly
accessible places, near
surface
Cutting short and cutting
o close to edges, in
corners and hardly
accessible places
Sanding in hardly accessible
places and in corners on a
hard ground
Scraping soft materials on a
hard ground
Example
Cutting narrow sections
short, cutting joining
elements, e.g. clamps
Narrow plunge cuts in
solid wood, e.g. for air
grates
Cut outs in furniture
boards, cutting cove
bases short, plunge
cutting for tting oor
panels
Removal of joint, cutting
holes in ceramic tiles
and plastics
Removal of mortar and
glue for ceramic tiles,
sanding solid wood,
polishing
Removal of mortar
residues, glue for lining
or ceramic tiles
