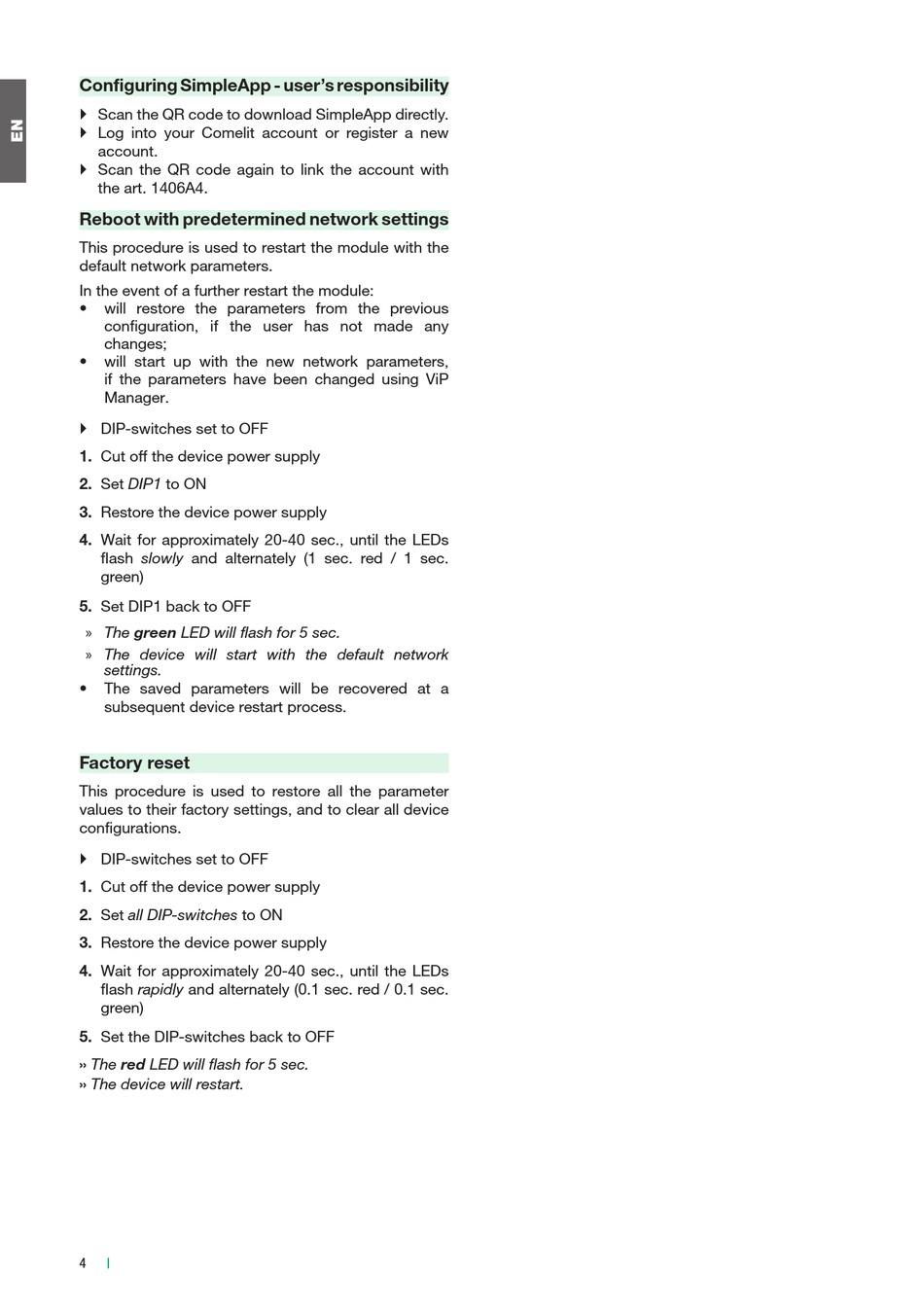

Factory Reset - Comelit Simplebus2 Technisches Handbuch

Configuring SimpleApp - user's responsibility
} Scan the QR code to download SimpleApp directly.
} Log into your Comelit account or register a new
account.
} Scan the QR code again to link the account with
the art. 1406A4.
Reboot with predetermined network settings
This procedure is used to restart the module with the
default network parameters.
In the event of a further restart the module:
• will restore the parameters from the previous
configuration, if the user has not made any
changes;
• will start up with the new network parameters,
if the parameters have been changed using ViP
Manager.
} DIP-switches set to OFF
1. Cut off the device power supply
2. Set DIP1 to ON
3. Restore the device power supply
4. Wait for approximately 20-40 sec., until the LEDs
flash slowly and alternately (1 sec. red / 1 sec.
green)
5. Set DIP1 back to OFF
» The green LED will flash for 5 sec.
» The device will start with the default network
settings.
• The saved parameters will be recovered at a
subsequent device restart process.

Factory reset

This procedure is used to restore all the parameter
values to their factory settings, and to clear all device
configurations.
} DIP-switches set to OFF
1. Cut off the device power supply
2. Set all DIP-switches to ON
3. Restore the device power supply
4. Wait for approximately 20-40 sec., until the LEDs
flash rapidly and alternately (0.1 sec. red / 0.1 sec.
green)
5. Set the DIP-switches back to OFF
›› The red LED will flash for 5 sec.
›› The device will restart.
4
