SPACER SET (OPTION)

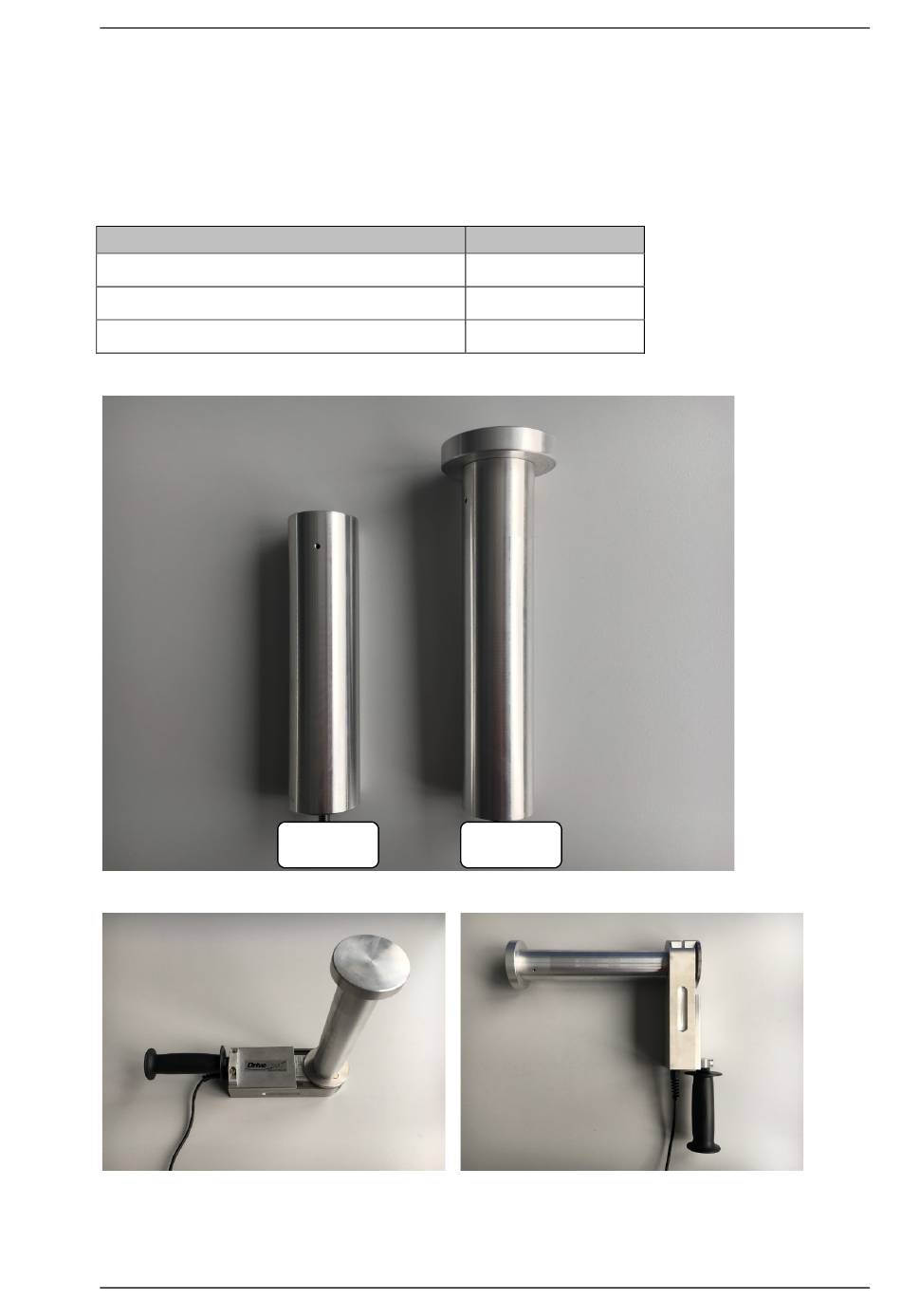

EN12445/12453 requires different opening gaps (300 and 500 mm). The FM100 spacer set
facilitates these measurements. No tools are required.
Spacer combinations:
Spacers applied
None
1 (50 + 250 mm)
1 + 2 (50 + 250 + 200 mm)
vertical measurement
upper side mounting
Version 7.1
Handbuch / Manual FM100
Spacer 2
horizontal measurement
lower (static) side mounting
Total aperture
50 mm
300 mm
500 mm
Spacer 1
