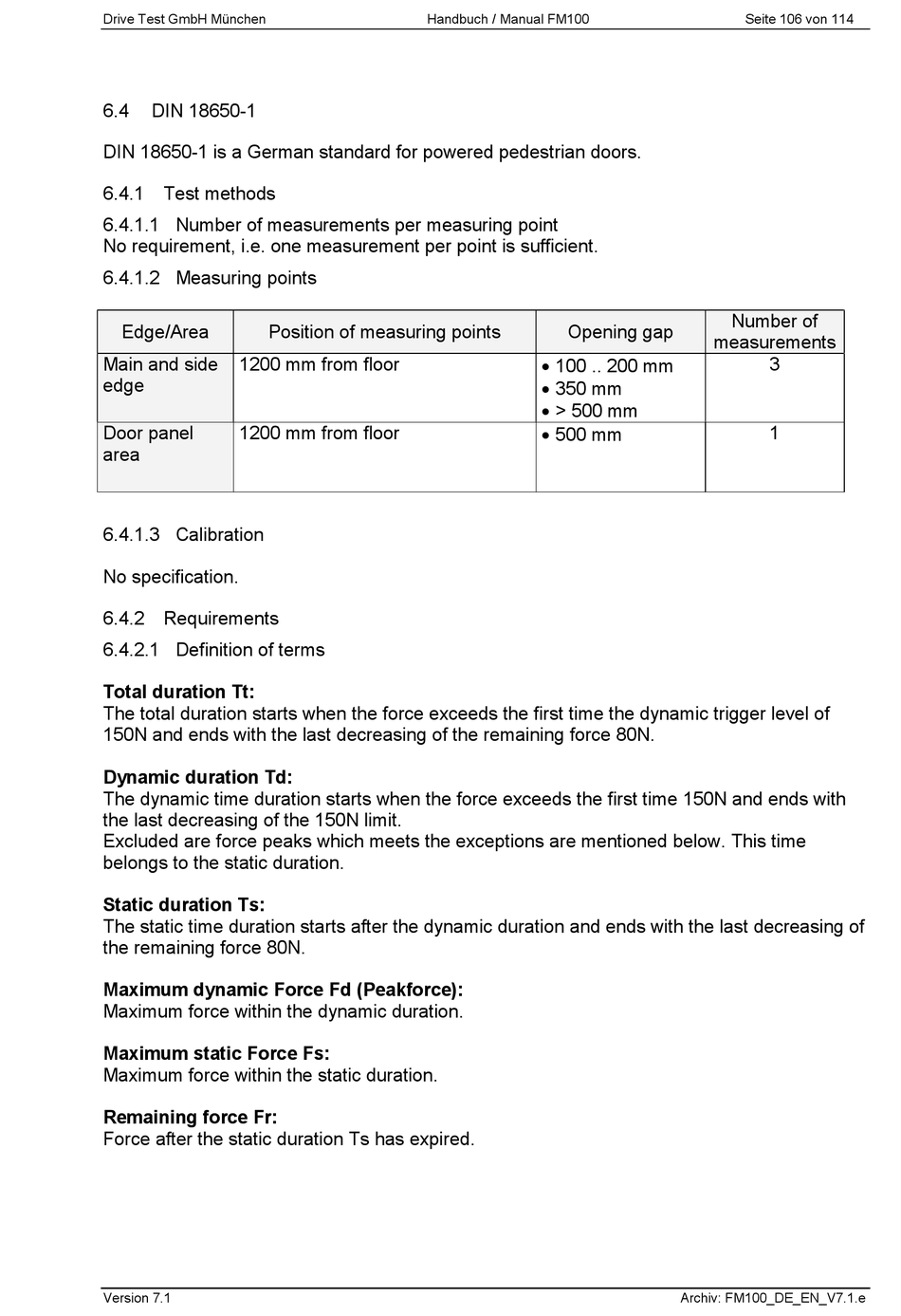

6.4

DIN 18650-1

DIN 18650-1 is a German standard for powered pedestrian doors.

6.4.1 Test methods

6.4.1.1 Number of measurements per measuring point
No requirement, i.e. one measurement per point is sufficient.
6.4.1.2 Measuring points
Edge/Area Position of measuring points
Main and side 1200 mm from floor
edge
Door panel 1200 mm from floor
area
6.4.1.3 Calibration
No specification.

6.4.2 Requirements

6.4.2.1 Definition of terms
Total duration Tt:
The total duration starts when the force exceeds the first time the dynamic trigger level of
150N and ends with the last decreasing of the remaining force 80N.
Dynamic duration Td:
The dynamic time duration starts when the force exceeds the first time 150N and ends with
the last decreasing of the 150N limit.
Excluded are force peaks which meets the exceptions are mentioned below. This time
belongs to the static duration.
Static duration Ts:
The static time duration starts after the dynamic duration and ends with the last decreasing of
the remaining force 80N.
Maximum dynamic Force Fd (Peakforce):
Maximum force within the dynamic duration.
Maximum static Force Fs:
Maximum force within the static duration.
Remaining force Fr:
Force after the static duration Ts has expired.
Version 7.1
Handbuch / Manual FM100
Opening gap
 100 .. 200 mm
 350 mm
 > 500 mm
 500 mm
Seite 106 von 114
Number of
measurements
3
1
