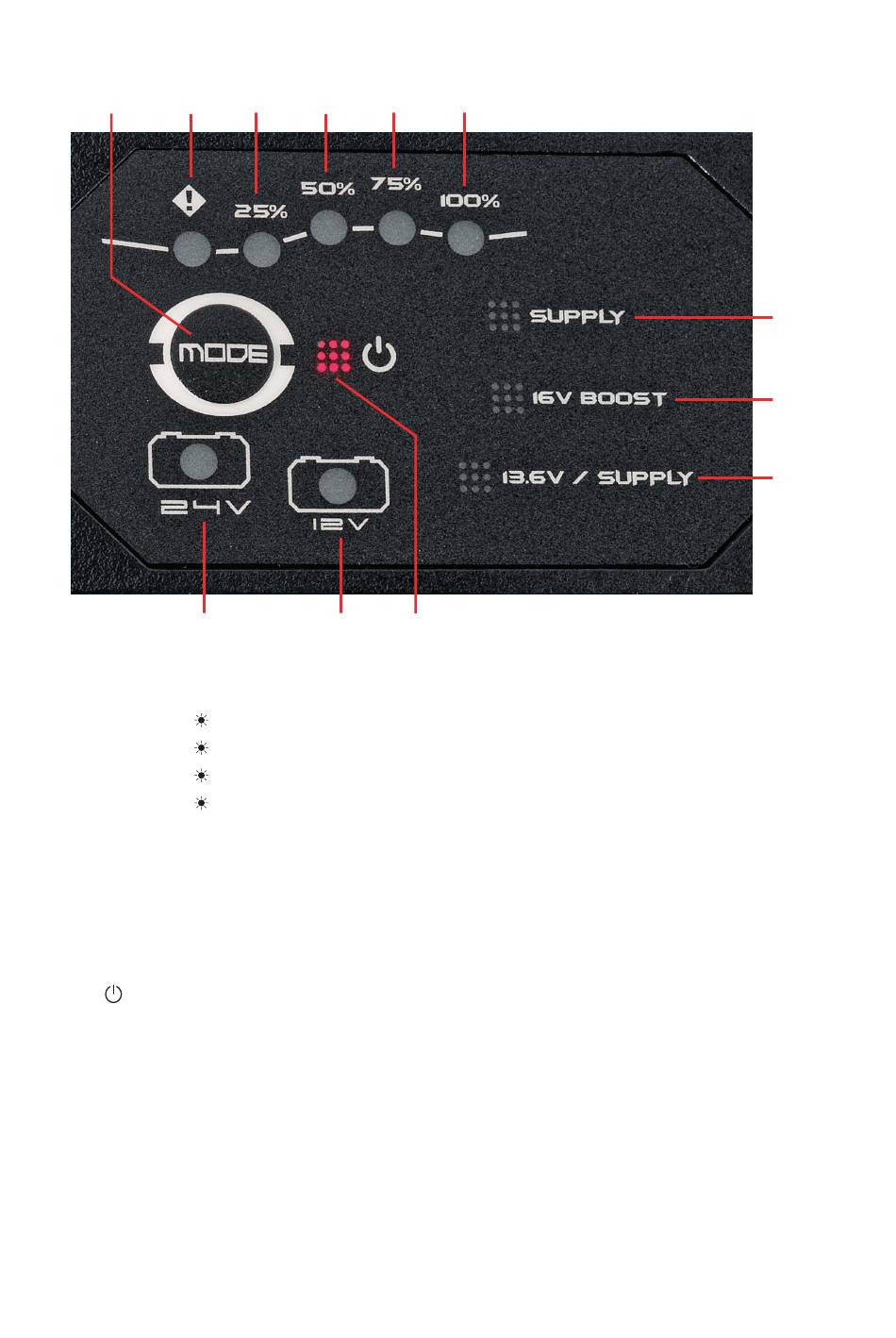

Overview of device components and operating elements.
1 2
12
1. Mode button
2. Reverse polarity warning indicator
3. 25%: (flashes) charging
4. 50%: (flashes) charging
5. 75%: (flashes) charging
6. 100%: (flashes) charging
7. SUPPLY: a special mode, in which the device can be used as a power supply unit for the
equipment when the battery is removed (radio code), 13.6 V / 5 A power supply
(dead battery)
8. 16 V BOOST: Recovery charging with 16.5 V and 1.5 A
9. 13.6 V / SUPPLY: a special mode, in which the device can be used as a power supply
unit for the equipment when the battery is removed (radio code), 13.6 V / 5 A power supply
10. Power LED
11. 12 V: 12 V battery connected
12. 24 V: 24 V battery connected
3 4 5
11 10
6
• (lights up) 25 % charged
• • (lights up) 50 % charged
• • • (lights up) 75 % charged
• • • • (lights up) 100 % charged
