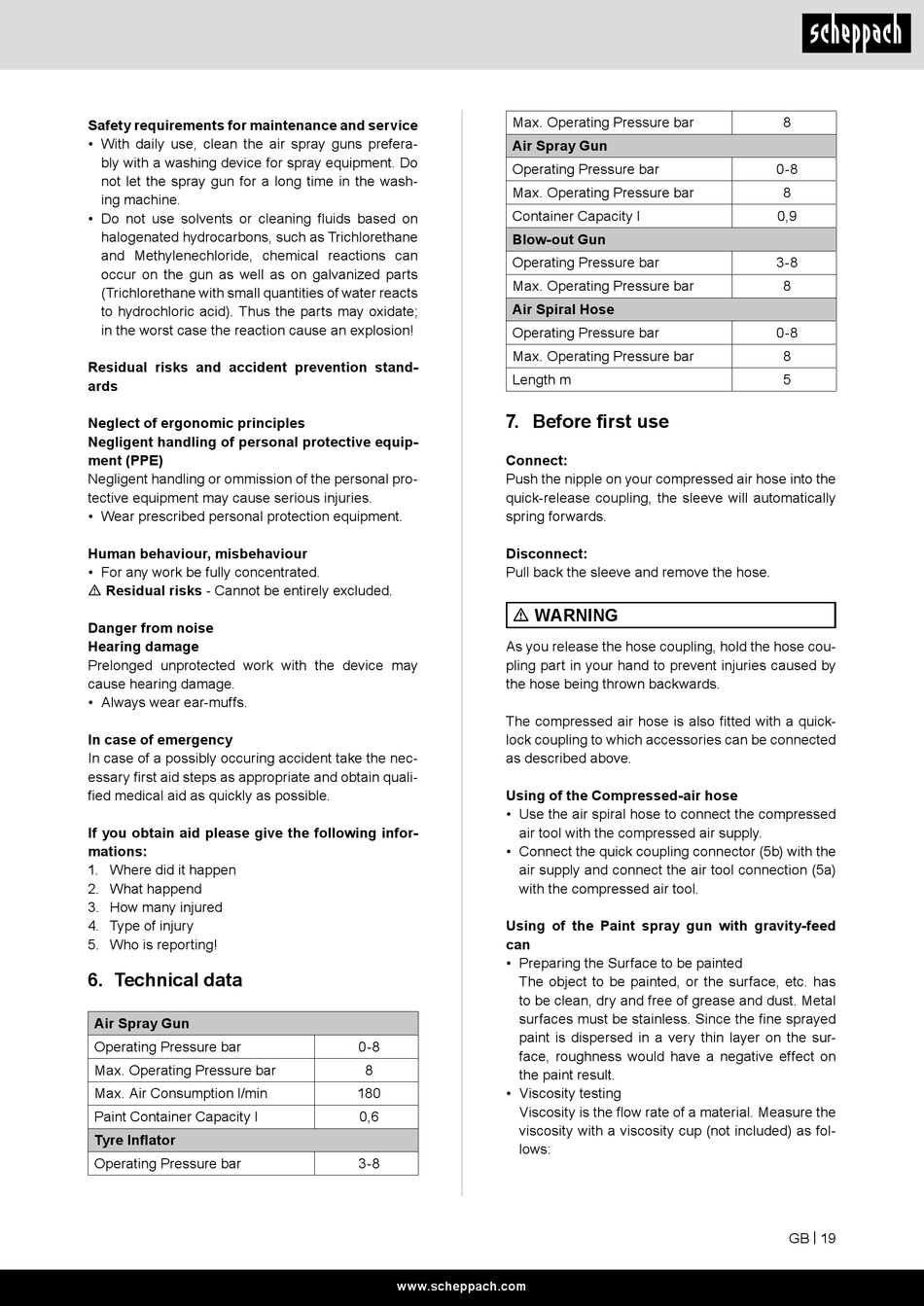

Safety requirements for maintenance and service
• With daily use, clean the air spray guns prefera-
bly with a washing device for spray equipment. Do
not let the spray gun for a long time in the wash-
ing machine.
• Do not use solvents or cleaning fluids based on
halogenated hydrocarbons, such as Trichlorethane
and Methylenechloride, chemical reactions can
occur on the gun as well as on galvanized parts
(Trichlorethane with small quantities of water reacts
to hydrochloric acid). Thus the parts may oxidate;
in the worst case the reaction cause an explosion!
Residual risks and accident prevention stand-
ards
Neglect of ergonomic principles
Negligent handling of personal protective equip-
ment (PPE)
Negligent handling or ommission of the personal pro-
tective equipment may cause serious injuries.
• Wear prescribed personal protection equipment.
Human behaviour, misbehaviour
• For any work be fully concentrated.
m Residual risks - Cannot be entirely excluded.
Danger from noise
Hearing damage
Prelonged unprotected work with the device may
cause hearing damage.
• Always wear ear-muffs.
In case of emergency
In case of a possibly occuring accident take the nec-
essary first aid steps as appropriate and obtain quali-
fied medical aid as quickly as possible.
If you obtain aid please give the following infor-
mations:
1. Where did it happen
2. What happend
3. How many injured
4. Type of injury
5. Who is reporting!

6. Technical data

Air Spray Gun
Operating Pressure bar
Max. Operating Pressure bar
Max. Air Consumption l/min
Paint Container Capacity l
Tyre Inflator
Operating Pressure bar
Max. Operating Pressure bar
Air Spray Gun
Operating Pressure bar
Max. Operating Pressure bar
Container Capacity l
Blow-out Gun
Operating Pressure bar
Max. Operating Pressure bar
Air Spiral Hose
Operating Pressure bar
Max. Operating Pressure bar
Length m

7. Before first use

Connect:
Push the nipple on your compressed air hose into the
quick-release coupling, the sleeve will automatically
spring forwards.
Disconnect:
Pull back the sleeve and remove the hose.
m WARNING
As you release the hose coupling, hold the hose cou-
pling part in your hand to prevent injuries caused by
the hose being thrown backwards.
The compressed air hose is also fitted with a quick-
lock coupling to which accessories can be connected
as described above.
Using of the Compressed-air hose
• Use the air spiral hose to connect the compressed
air tool with the compressed air supply.
• Connect the quick coupling connector (5b) with the
air supply and connect the air tool connection (5a)
with the compressed air tool.
Using of the Paint spray gun with gravity-feed
can
• Preparing the Surface to be painted
The object to be painted, or the surface, etc. has
to be clean, dry and free of grease and dust. Metal
surfaces must be stainless. Since the fine sprayed
paint is dispersed in a very thin layer on the sur-
0-8
face, roughness would have a negative effect on
8
the paint result.
180 • Viscosity testing
Viscosity is the flow rate of a material. Measure the
0,6
viscosity with a viscosity cup (not included) as fol-
lows:
3-8
www.scheppach.com
8
0-8
8
0,9
3-8
8
0-8
8
5
