| English
chargeable battery or non-rechargeable batteries, an in-
ternal energy storage system provides continuous monitor-
ing by the sensors for 72 hours.
The sensors are activated when the measuring tool is started
up for the first time.
Calibration Warning Triggers
If one of the following events occurs, the calibration warning
CAL guard is triggered and the indicator
lights up red:
–
The calibration interval (every 12 months) has expired.
–
The measuring tool was stored outside of the storage
temperature range.
–
The measuring tool was subjected to a strong shock (e.g.
impact with the ground after being dropped).
Bosch Levelling Remote App
You can refer to the
which of the three events triggered the calibration warning.
Without the app, the cause cannot be identified, as the indic-
ator CAL guard ( 3) lighting up indicates merely that the lev-
elling accuracy needs to be checked.
Once the warning has been triggered, the indicator
guard ( 3) lights up until the levelling accuracy has been
checked and the indicator switched off.
Procedure in the Event of a Calibration Warning Being
Triggered
Check the levelling accuracy of the measuring tool (see "Ac-
curacy Check of the Measuring Tool", page 22).
If the maximum deviation has not been exceeded in any of
the tests, switch the indicator CAL guard ( 3)
press and hold the receiver mode button
( 9)
button at the same time for at least 3 s. The
Bluetooth®
CAL guard ( 3)
indicator will go out.
Should the measuring tool exceed the maximum deviation
during one of the tests, please have it repaired by a
after-sales service.

Accuracy Check of the Measuring Tool

I nfluences on Accuracy
The largest influence is exerted by the ambient temperature.
In particular, temperature differences that occur from the
ground upwards can refract the laser beam.
Since the temperature stratification is greatest at ground
level, you should always mount the measuring tool on a tri-
pod for measuring distances of 20 m or more. I n addition,
position the measuring tool in the centre of the work surface,
wherever this is possible.
I n addition to external influences, device-specific influences
(e.g. falls or heavy impacts) can also lead to deviations. For
this reason, check the levelling accuracy each time before
beginning work.
First check the levelling accuracy of the horizontal laser line,
then the levelling accuracy of the vertical laser lines.
Should the measuring tool exceed the maximum deviation
during one of the tests, please have it repaired by a
after-sales service.
1 609 92A 5AZ | (16.10.2019)

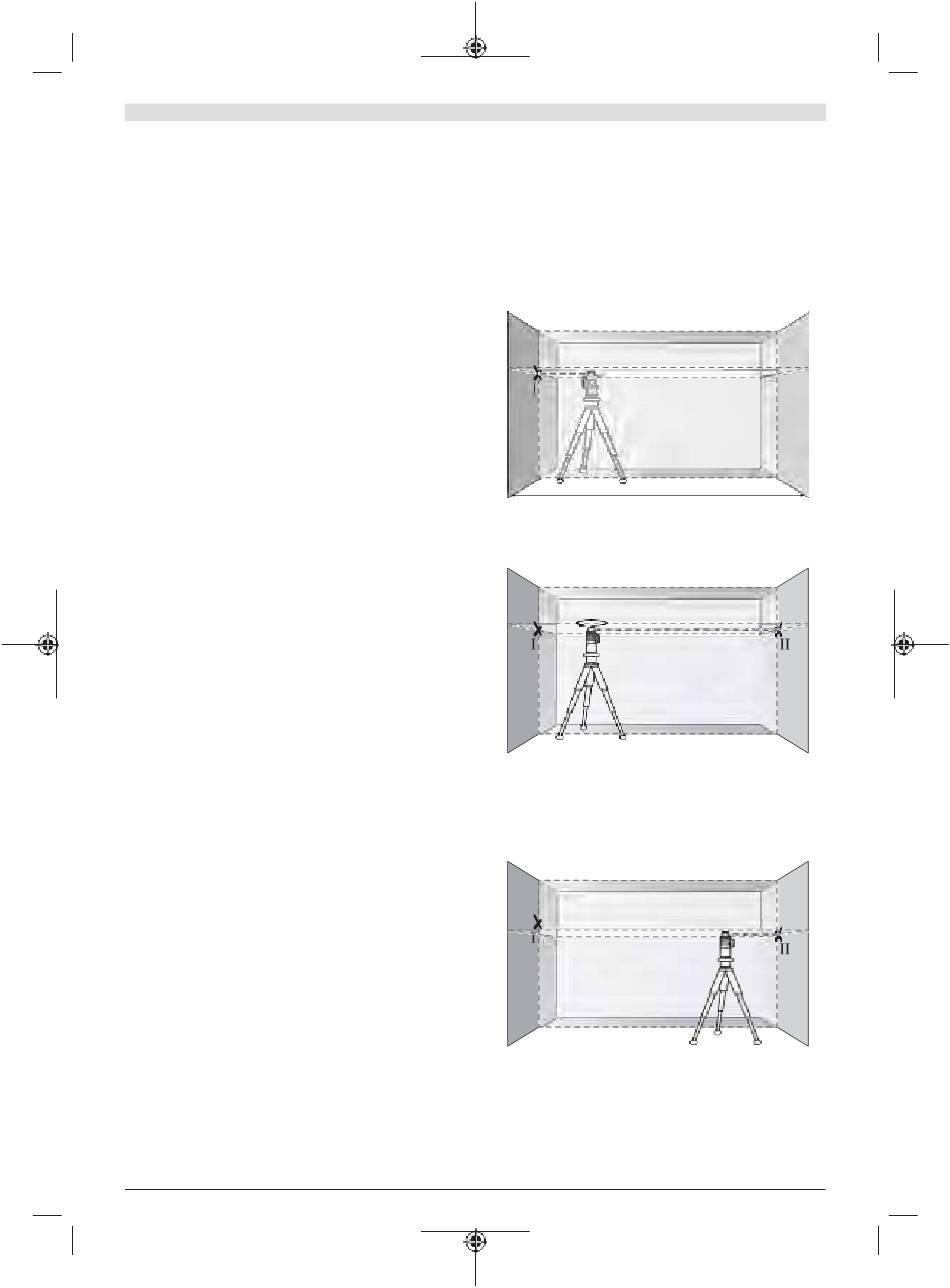

Checking the Horizontal Levelling Accuracy of the
Transverse Axis
For this check, you will need a free measuring distance of
5
m on firm ground between two walls (designated A and B).
–
Mount the measuring tool close to wall A on a tripod, or
place it on a firm, flat surface. Switch on the measuring
tool in the mode with automatic levelling. Select the oper-
ating mode for generating a horizontal laser plane and a
CAL guard ( 3)
vertical laser plane directly in front of the measuring tool.
A
to see
CAL
–
Aim the laser at the closer wall A and allow the measuring
tool to level in. Mark the middle of the point at which the
laser lines cross on the wall (point I).
A
off. To do so,
( 5)
and the
Bosch
–
Turn the measuring tool 180°, allow it to level in and mark
the point where the laser lines cross on the opposite wall
B (point
–
Position the measuring tool
wall B, switch it on and allow it to level in.
A
–
Align the height of the measuring tool (using the tripod or
by placing objects underneath as required) so that the
point where the laser lines cross exactly hits the previ-
Bosch
ously marked point
5 m
180°
Ⅱ ).
–
without rotating it
Ⅱ on wall B.
B
B
–
close to
B
