actiforce ControlForce 2 Montageanleitung Seite 4

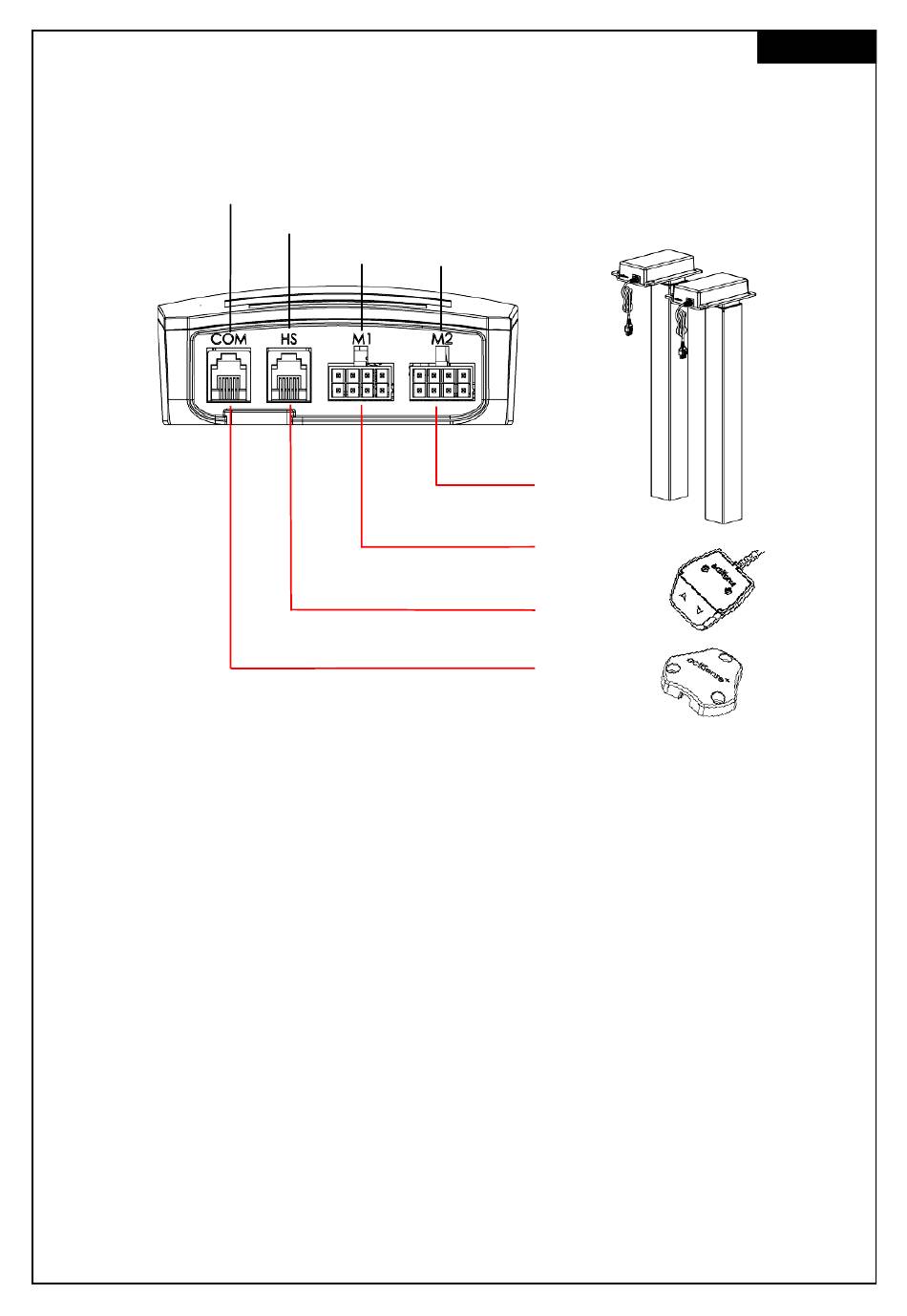

Key Overview for ControlForce 2 (CF2) / ControlForce 2 Pro (CF2 Pro)
Single Desk Operation
Sensor
First Use - Instructions
• Connect both legs to the Motor Channels,
• Connect the power plug of Controller to power socket.
• Connect the Hand-Switch to the
• Hold the down button of the Hand-Switch until the legs moved to the lowest position and reverse
their drive direction.
• The desk is initialized and ready for operation.
Sensor Connection (Optional)
• Plug In Sensor into the
• Sensor is active.
Hand-Switch
Motor 1 Motor 2
"
" " port
HS .
" " port.
COM
Leg 2
Leg 1
Hand-Switch
Sensor
(Optional)
" " "
M1 and M2 accordingly.
