The ALDEBARAN® 360 GRAD FLEX-C 2.0 has four individual light modules that can be mechanically adjusted to the re-
quirements of the place of use. For this purpose, the modules can be adjusted in several stages after unlocking to the desired
position between 0° and approx. 90° inclination.
1. Unlocking the modules
Before you can adjust the inclination of the luminaire,
the magnetically locked modules must be unlocked. To
do this, grasp the sides of each individual light module
with both hands and pull it towards your body (see
Figure 1 and 2).
2. Adjust the inclination of the luminaire
In order to bring the luminaire into the desired inclination,
pull the lower locking bolt and move the base plate
upwards until the modules reach the desired inclination.
To fix the set position, the locking bolt must engage in
the specified bores.
WARNING! Risk of injury!
The snap-in bolt of the quick-release fastener must engage in the intended position. This is how you avoid accidents
and injuries.
3. Fold up the luminaire
The luminaire can be returned to its original position by reversing the steps previously described.
The ALDEBARAN® 360 GRAD FLEX-C 2.0 can be switched on and off using the two pressure switches (E) in the switch
box of the supply line and the luminosity can also be regulated using the potentiometer (D). Turning the controller clock-
wise increases the luminosity, turning it anti-clockwise reduces the brightness of the luminaire.

Fault

A light module without function
Two light modules without function
All four light modules without
function
Luminaire cannot be dimmed
Strong deviation in the brightness of
a light module
WARNING! Electric current!
Before any maintenance, cleaning and care, the device must always be disconnected from the power supply by
pulling the mains plug.

Alignment of the modules

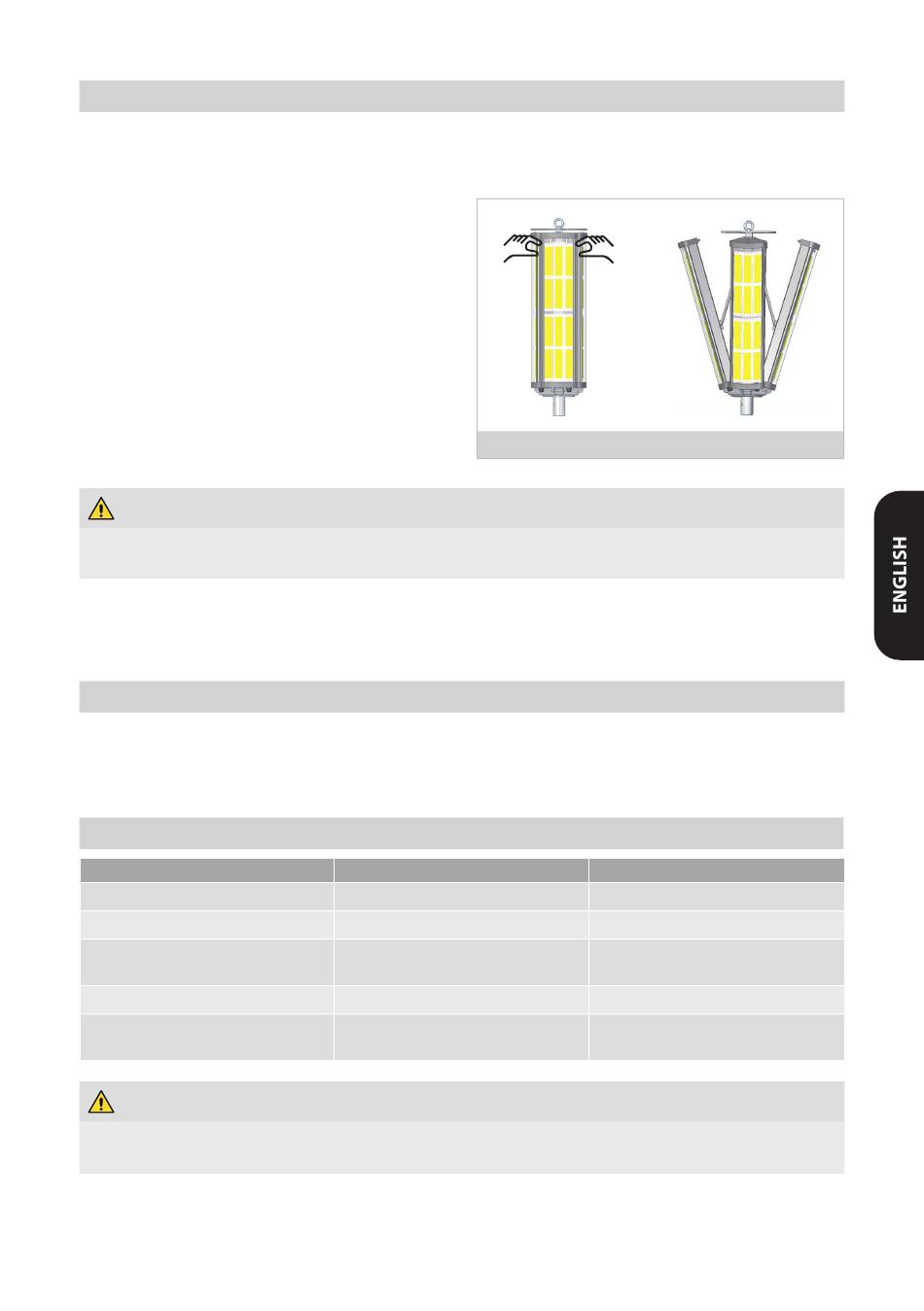

Fig. 1 (Transport mode)

Handling

Fault
Possible cause
Defect in the light module
Pressure switch OFF
No voltage
Potentiometer defect
Defective active cooling
Fig. 2
Solution
Repair required
Checking the controls (pressure switch)
Check the power supply
Repair required
Repair required
