Connecting The Supply Line; Adjusting The Luminaire To The Lighting Situation - Seto Aldebaran XLD Gebrauchsanleitung

ATTENTION!
In the case of versions of the luminaire with other plug-in systems (not Schuko®), the voltage according to the rating
plate must be observed.
The supplied cable (BASIC, SWITCH, DIM) depends on the version selected.
To connect the supply line to the luminaire, insert the cable socket of the supply line into the cable plug of the luminaire
and turn the threaded ring of the cable socket "hand-tight" (approx. 50 cNm) clockwise.
To disconnect the cable, unscrew the threaded ring of the cable socket anti-clockwise and pull the connectors apart.
DANGER! Electric current!
Before connecting or disconnecting the supply line,
make sure that the luminaire is disconnected from the
power supply.
ATTENTION!
The luminaire may only be operated with the original
cable. Cables for replacement or repair can only
be obtained from the manufacturer or its service
representative.
WARNING!
• Lay the cables in such a way that there are no tripping hazards and they are protected from mechanical damage
such as tearing off or being run over.
• If necessary, secure the cables with tape or cable ties.
• Make sure the luminaire is securely set up and fastened before use.
• Also observe the applicable regulations on occupational safety!
Electric connection
Connect the mains plug of the connecting cable to your mains connection socket.
The luminaire is ready for operation once it has been connected to the mains power supply.

Adjusting the luminaire to the lighting situation

You can adapt the ALDEBARAN® XLD individually to your lighting situation. For this purpose, diffusers are available to you.
The diffusers can be inserted into the grooves provided in the plastic corners of the luminaire and are then immediately
ready for use.
a. With diffuser
This gives you the opportunity to illuminate the close-up area homogeneously.
b. Without diffuser
Allows you to get better illumination at a distance.

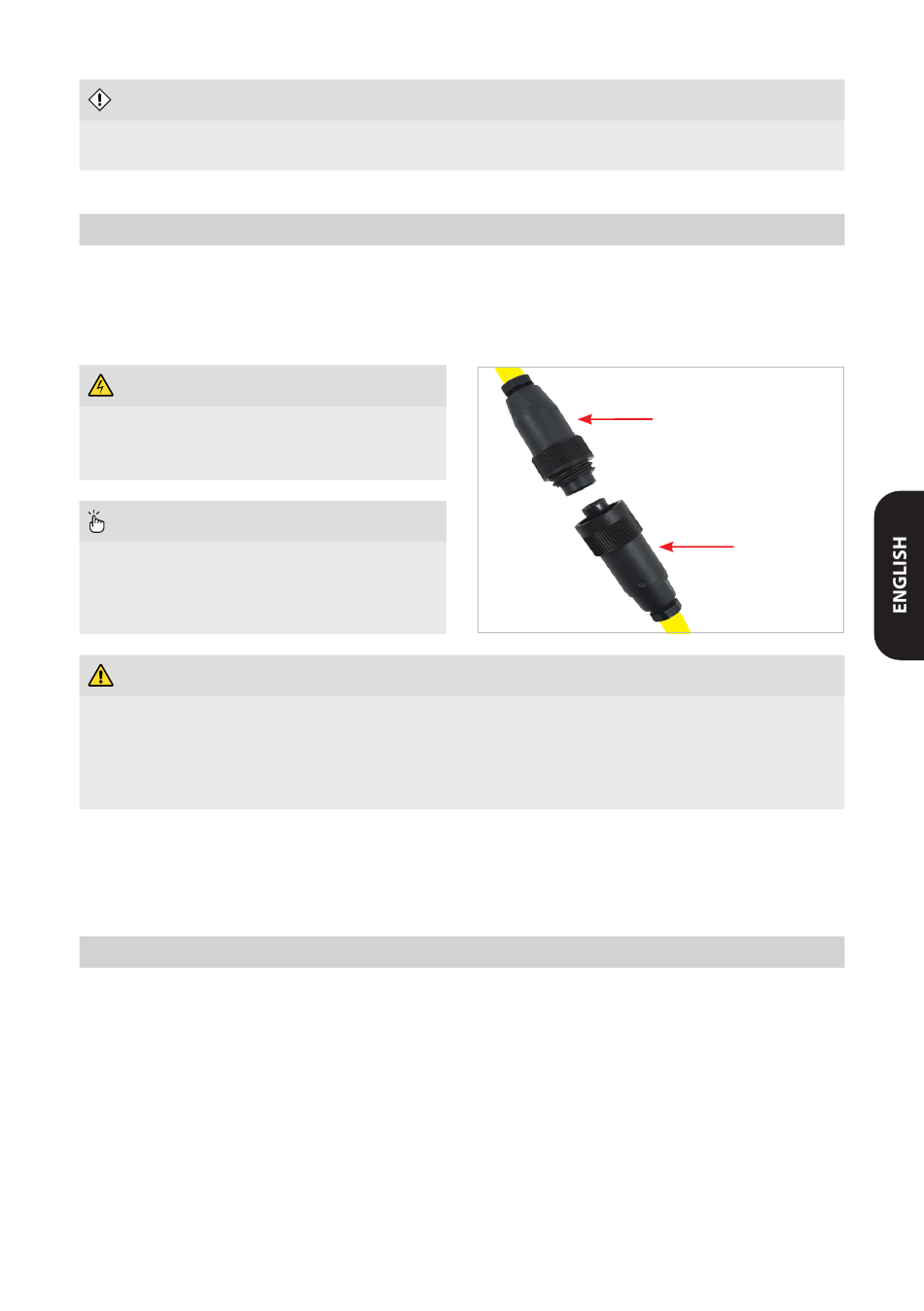

Connecting the supply line

Cable plug
(Luminaire)
Cable socket
(Supply line)
13
