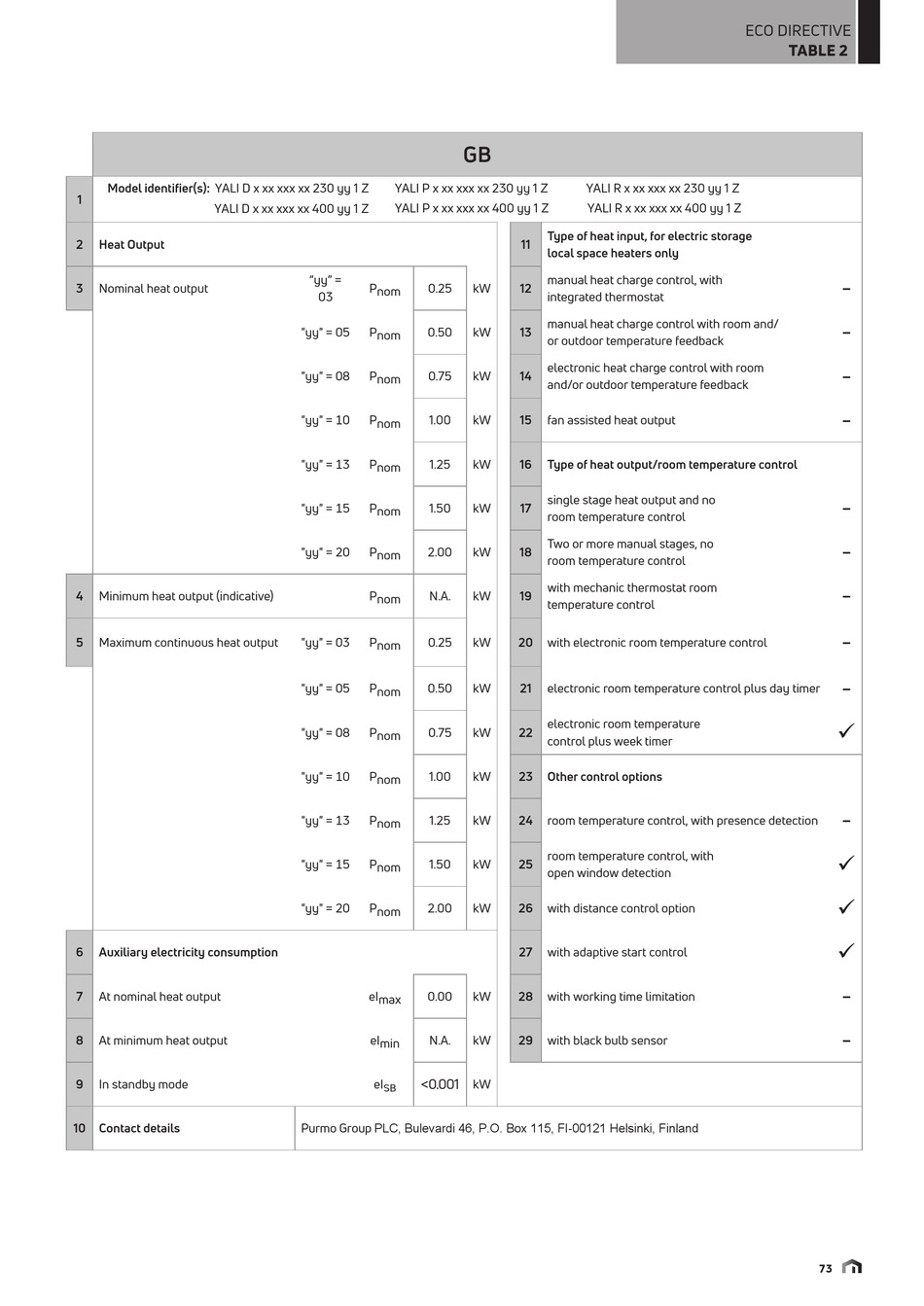

Purmo YALI DIGITAL PLUS Installations- Und Bedienungsanleitung Seite 73

Model identifier(s): YALI D x xx xxx xx 230 yy 1 Z
1
YALI D x xx xxx xx 400 yy 1 Z
2 Heat Output
3 Nominal heat output
4 Minimum heat output (indicative)
5 Maximum continuous heat output
6 Auxiliary electricity consumption
7
At nominal heat output
8 At minimum heat output
9 In standby mode
10 Contact details
GB
YALI P x xx xxx xx 230 yy 1 Z
YALI P x xx xxx xx 400 yy 1 Z
"yy" =
P nom 0.25 kW
03
"yy" = 05 P nom 0.50 kW
"yy" = 08 P nom 0.75 kW
"yy" = 10 P nom 1.00 kW
"yy" = 13 P nom 1.25 kW
"yy" = 15 P nom 1.50 kW
"yy" = 20 P nom 2.00 kW
P nom N.A. kW
"yy" = 03 P nom 0.25 kW
"yy" = 05 P nom 0.50 kW
"yy" = 08 P nom 0.75 kW
"yy" = 10 P nom 1.00 kW
"yy" = 13 P nom 1.25 kW
"yy" = 15 P nom 1.50 kW
"yy" = 20 P nom 2.00 kW
eI max 0.00 kW
eI min N.A. kW
<0.001
eI kW
SB
Purmo Group PLC, Bulevardi 46, P.O. Box 115, FI-00121 Helsinki, Finland
YALI R x xx xxx xx 230 yy 1 Z
YALI R x xx xxx xx 400 yy 1 Z
Type of heat input, for electric storage
11
local space heaters only
manual heat charge control, with
12
integrated thermostat
manual heat charge control with room and/
13
or outdoor temperature feedback
electronic heat charge control with room
14
and/or outdoor temperature feedback
15 fan assisted heat output
16 Type of heat output/room temperature control
single stage heat output and no
17
room temperature control
Two or more manual stages, no
18
room temperature control
with mechanic thermostat room
19
temperature control
20 with electronic room temperature control
21 electronic room temperature control plus day timer
electronic room temperature
22
control plus week timer
23 Other control options
24 room temperature control, with presence detection
room temperature control, with
25
open window detection
26 with distance control option
27 with adaptive start control
28
with working time limitation
29 with black bulb sensor
ECO DIRECTIVE
TABLE 2
–
–
–
–
–
–
–
–
–

–



–
–
73
