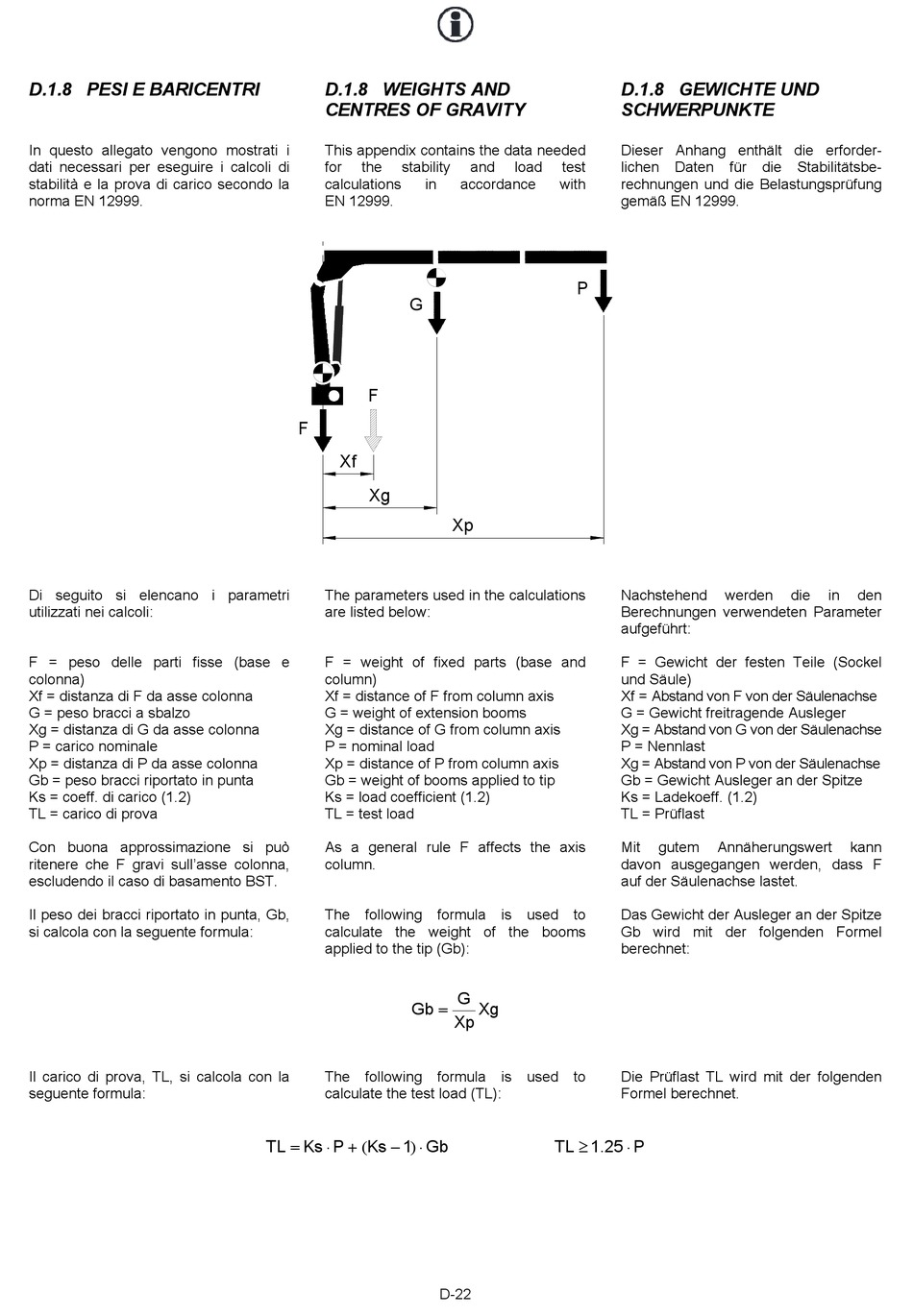

D.1.8 PESI E BARICENTRI

In questo allegato vengono mostrati i
dati necessari per eseguire i calcoli di
stabilità e la prova di carico secondo la
norma EN 12999.
Di seguito si elencano i parametri
utilizzati nei calcoli:
F = peso delle parti fisse (base e
colonna)
Xf = distanza di F da asse colonna
G = peso bracci a sbalzo
Xg = distanza di G da asse colonna
P = carico nominale
Xp = distanza di P da asse colonna
Gb = peso bracci riportato in punta
Ks = coeff. di carico (1.2)
TL = carico di prova
Con buona approssimazione si può
ritenere che F gravi sull'asse colonna,
escludendo il caso di basamento BST.
Il peso dei bracci riportato in punta, Gb,
si calcola con la seguente formula:
Il carico di prova, TL, si calcola con la
seguente formula:
D.1.8 WEIGHTS AND
CENTRES OF GRAVITY
This appendix contains the data needed
for
the
stability
calculations
in
EN 12999.
G
F
F
Xf
Xg
The parameters used in the calculations
are listed below:
F = weight of fixed parts (base and
column)
Xf = distance of F from column axis
G = weight of extension booms
Xg = distance of G from column axis
P = nominal load
Xp = distance of P from column axis
Gb = weight of booms applied to tip
Ks = load coefficient (1.2)
TL = test load
As a general rule F affects the axis
column.
The following formula is used to
calculate the weight of the booms
applied to the tip (Gb):
Gb 
The following formula is used to
calculate the test load (TL):
TL
Ks
P
(
Ks
1
)
Gb
and
load
test
accordance
with
P
Xp
G
Xg
Xp
 .
TL
1
25
D-22
D.1.8 GEWICHTE UND
SCHWERPUNKTE
Dieser Anhang enthält die erforder-
lichen
Daten
für
die
rechnungen und die Belastungsprüfung
gemäß EN 12999.
Nachstehend
werden
die
Berechnungen verwendeten Parameter
aufgeführt:
F = Gewicht der festen Teile (Sockel
und Säule)
Xf = Abstand von F von der Säulenachse
G = Gewicht freitragende Ausleger
Xg = Abstand von G von der Säulenachse
P = Nennlast
Xg = Abstand von P von der Säulenachse
Gb = Gewicht Ausleger an der Spitze
Ks = Ladekoeff. (1.2)
TL = Prüflast
Mit
gutem
Annäherungswert
davon ausgegangen werden, dass F
auf der Säulenachse lastet.
Das Gewicht der Ausleger an der Spitze
Gb wird mit der folgenden Formel
berechnet:
Die Prüflast TL wird mit der folgenden
Formel berechnet.
P
Stabilitätsbe-
in
den
kann
