Gerätebeschreibung

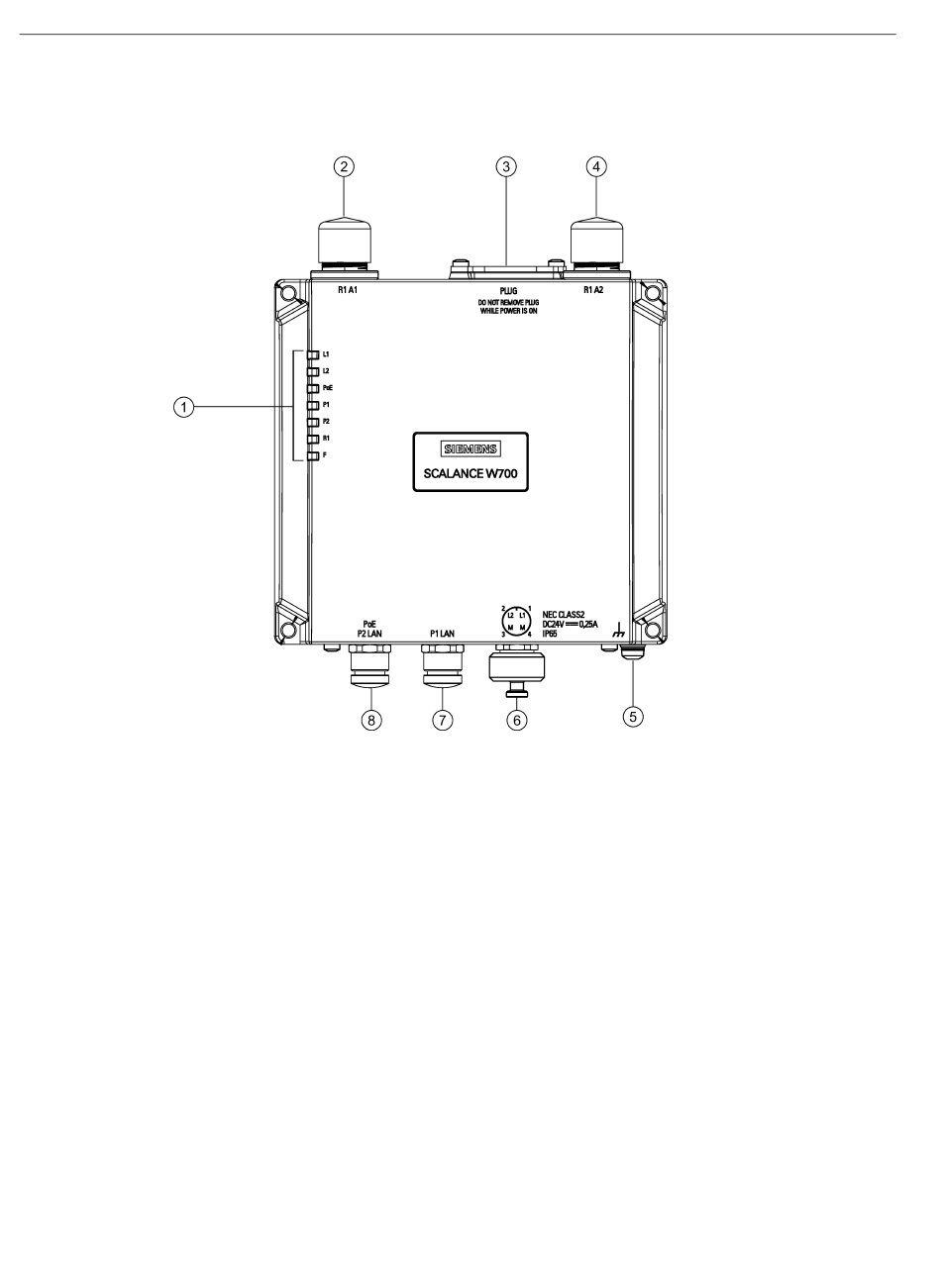

4.2 Geräteansicht
4.2
Geräteansicht
①
②
③
④
⑤
⑥
⑦
⑧
22
LED-Anzeige
Antennenanschluss R1A1
PLUG-Steckplatz / Reset-Taster
Antennenanschluss R1A2
Erdung
Anschluss für Spannungsversorgung
Ethernet-Anschluss P1
Ethernet-Anschluss P2 (PoE-fähig)
SCALANCE W778-1 / W738-1
Betriebsanleitung, 03/2022, C79000-G8900-C450-07
