5 Wiring overview

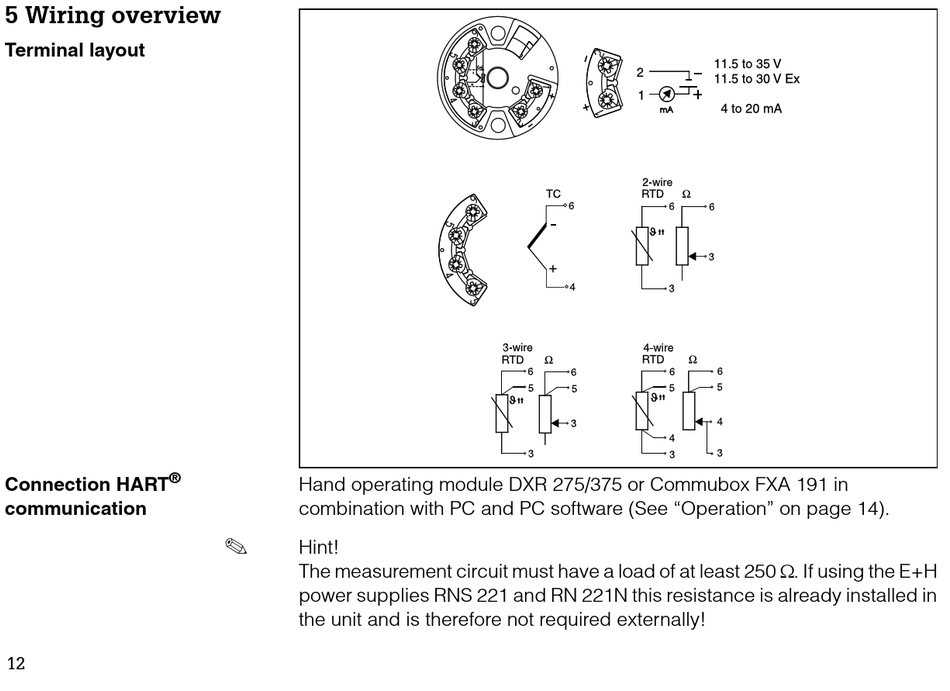

Terminal layout
®
Connection HART
communication
12
Hand operating module DXR 275/375 or Commubox FXA 191 in
combination with PC and PC software (See "Operation" on page 14).
!
Hint!
The measurement circuit must have a load of at least 250 Ω. If using the E+H
power supplies RNS 221 and RN 221N this resistance is already installed in
the unit and is therefore not required externally!
