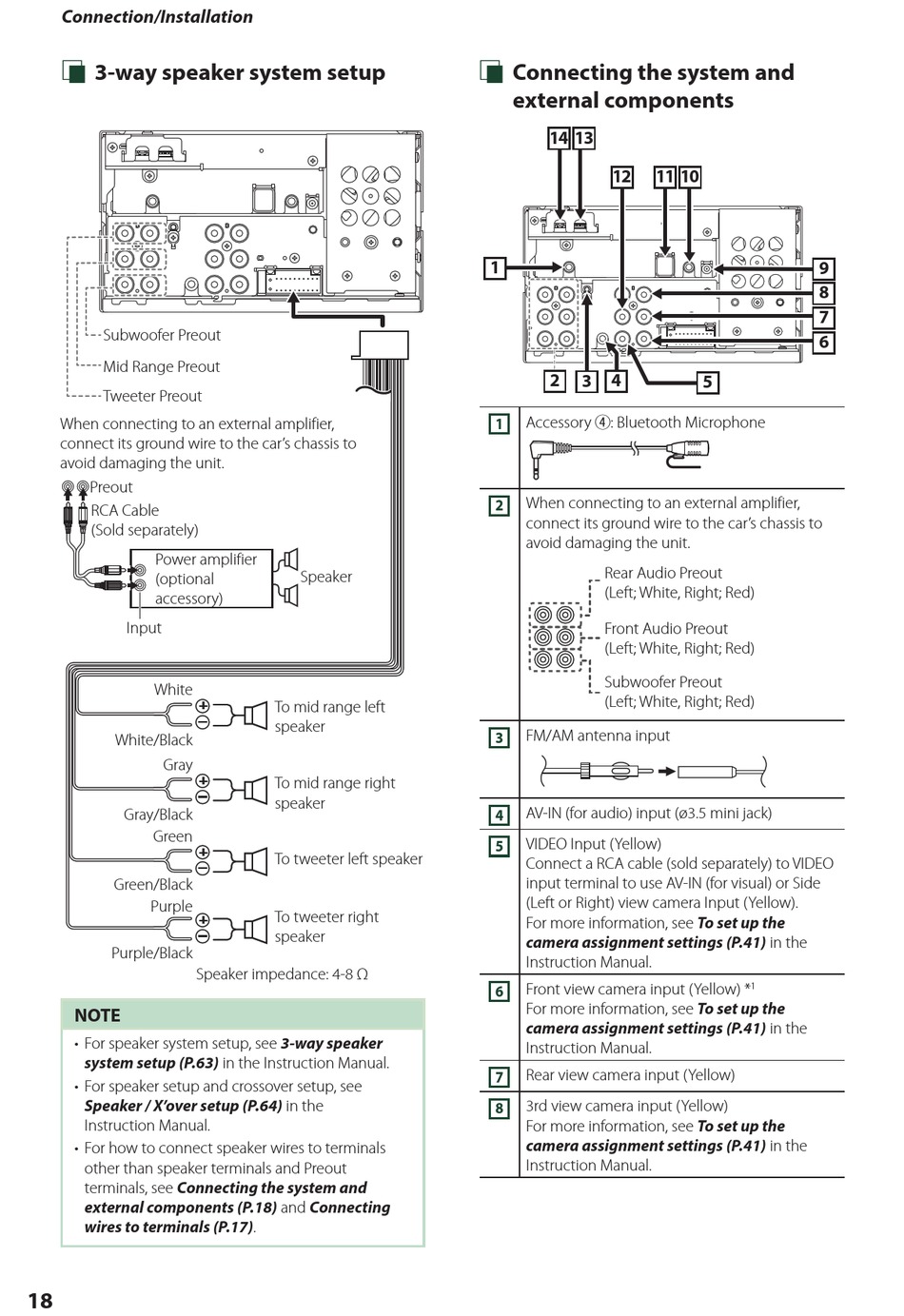

Connection/Installation
Ñ
3-way speaker system setup
Subwoofer Preout
Mid Range Preout
Tweeter Preout
When connecting to an external amplifier,
connect its ground wire to the car's chassis to
avoid damaging the unit.
Preout
RCA Cable
(Sold separately)
Power amplifier
(optional
accessory)
Input
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
Speaker impedance: 4-8 Ω
NOTE
• For speaker system setup, see 3-way speaker
system setup (P.63) in the Instruction Manual.
• For speaker setup and crossover setup, see
Speaker / X'over setup (P.64) in the
Instruction Manual.
• For how to connect speaker wires to terminals
other than speaker terminals and Preout
terminals, see Connecting the system and
external components (P.18) and Connecting
wires to terminals (P.17).
18
Speaker
+
To mid range left
speaker
+
To mid range right
speaker
+
To tweeter left speaker
To tweeter right
+
speaker
Ñ
Connecting the system and
external components
14 13
12
1
2 4
3
1
Accessory 4: Bluetooth Microphone
When connecting to an external amplifier,
2
connect its ground wire to the car's chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
FM/AM antenna input
3
4 AV-IN (for audio) input (ø3.5 mini jack)
VIDEO Input (Yellow)
5
Connect a RCA cable (sold separately) to VIDEO
input terminal to use AV-IN (for visual) or Side
(Left or Right) view camera Input (Yellow).
For more information, see To set up the
camera assignment settings (P.41) in the
Instruction Manual.
6 Front view camera input (Yellow) *
For more information, see To set up the
camera assignment settings (P.41) in the
Instruction Manual.
Rear view camera input (Yellow)
7
8 3rd view camera input (Yellow)
For more information, see To set up the
camera assignment settings (P.41) in the
Instruction Manual.
11 10
9
8
7
6
5
1
