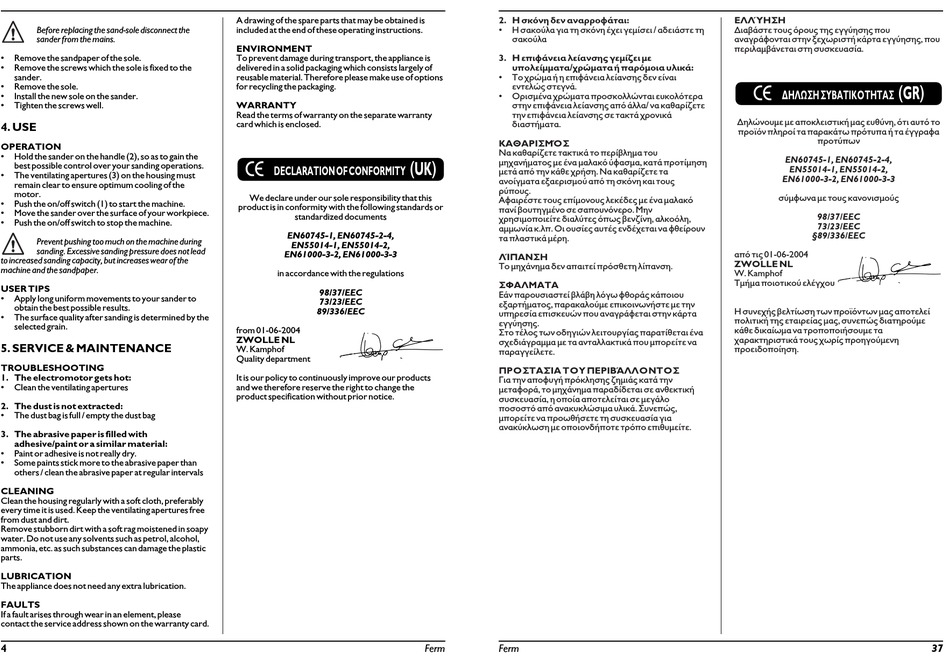

Service & Maintenance - Ferm PSM1012 Gebrauchsanweisung

Before replacing the sand-sole disconnect the
sander from the mains.
• Remove the sandpaper of the sole.
• Remove the screws which the sole is fixed to the
sander.
• Remove the sole.
• Install the new sole on the sander.
• Tighten the screws well.
4. USE
OPERATION
• Hold the sander on the handle (2), so as to gain the
best possible control over your sanding operations.
• The ventilating apertures (3) on the housing must
remain clear to ensure optimum cooling of the
motor.
• Push the on/off switch (1) to start the machine.
• Move the sander over the surface of your workpiece.
• Push the on/off switch to stop the machine.
Prevent pushing too much on the machine during
sanding. Excessive sanding pressure does not lead
to increased sanding capacity, but increases wear of the
machine and the sandpaper.
USER TIPS
• Apply long uniform movements to your sander to
obtain the best possible results.
• The surface quality after sanding is determined by the
selected grain.
5. SERVICE & MAINTENANCE
TROUBLESHOOTING
1. The electromotor gets hot:
• Clean the ventilating apertures
2. The dust is not extracted:
• The dust bag is full / empty the dust bag
3. The abrasive paper is filled with
adhesive/paint or a similar material:
• Paint or adhesive is not really dry.
• Some paints stick more to the abrasive paper than
others / clean the abrasive paper at regular intervals
CLEANING
Clean the housing regularly with a soft cloth, preferably
every time it is used. Keep the ventilating apertures free
from dust and dirt.
Remove stubborn dirt with a soft rag moistened in soapy
water. Do not use any solvents such as petrol, alcohol,
ammonia, etc. as such substances can damage the plastic
parts.
LUBRICATION
The appliance does not need any extra lubrication.
FAULTS
If a fault arises through wear in an element, please
contact the service address shown on the warranty card.
4
A drawing of the spare parts that may be obtained is
included at the end of these operating instructions.
ENVIRONMENT
To prevent damage during transport, the appliance is
delivered in a solid packaging which consists largely of
reusable material. Therefore please make use of options
for recycling the packaging.
WARRANTY
Read the terms of warranty on the separate warranty
card which is enclosed.
ı
( UK )
CE
DECLARATION OF CONFORMITY
We declare under our sole responsibility that this
product is in conformity with the following standards or
standardized documents
EN60745-1, EN60745-2-4,
EN55014-1, EN55014-2,
EN61000-3-2, EN61000-3-3
in accordance with the regulations
98/37/EEC
73/23/EEC
89/336/EEC
from 01-06-2004
ZWOLLE NL
W. Kamphof
Quality department
It is our policy to continuously improve our products
and we therefore reserve the right to change the
product specification without prior notice.
2.
•
3.
/
•
.
•
.
.
.
. .
.
,
.
.
,
,
Ferm Ferm
:
/
:
ı
CE
/
EN60745-1, EN60745-2-4,
,
EN55014-1, EN55014-2,
EN61000-3-2, EN61000-3-3
.
, ,
01-06-2004
ZWOLLE NL
.
W. Kamphof
.
. ,
.
,
.
( GR )
,
98/37/EEC
73/23/EEC
§89/336/EEC
,
37
