Connection

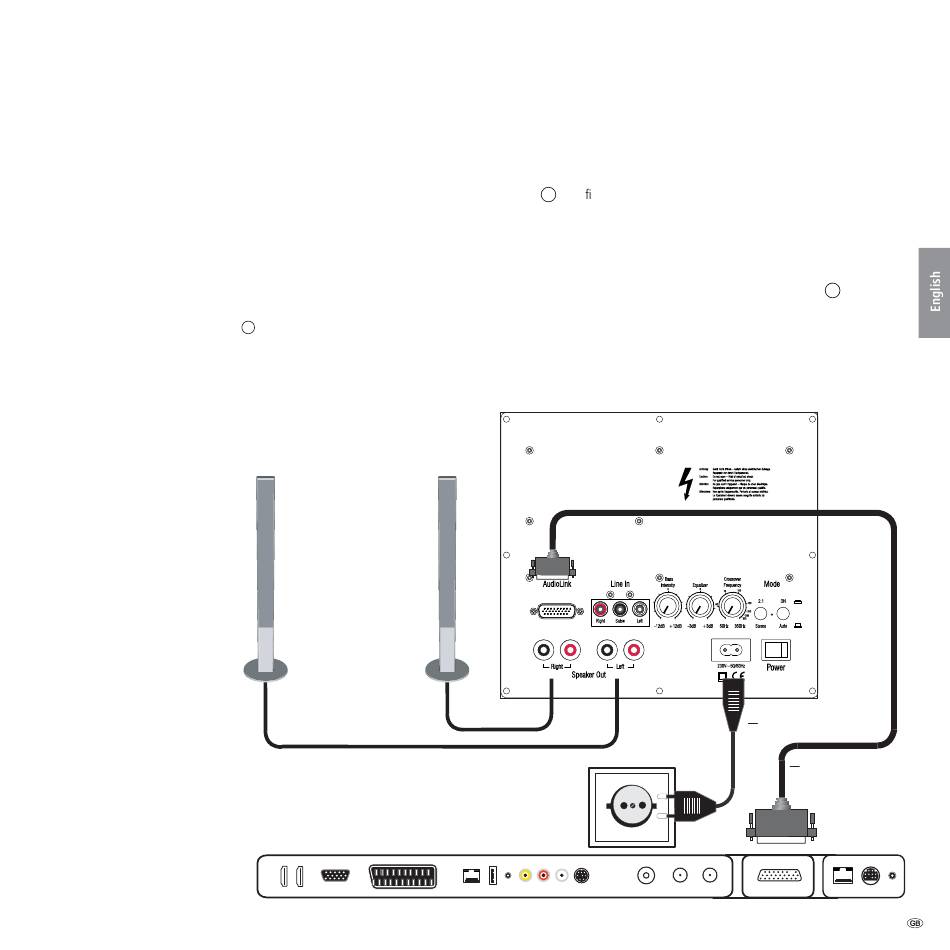

Cabling of Loewe TV set (chassis L27xx/SL1xx) – Subwoofer Compact – speaker
➠
The TV set must be equipped with an integrated digital multi-channel audio
decoder. If this has not been done at the factory, please consult your dealer
and ask them for the suitable Loewe upgrade kit.
You can connect the subwoofer either via an Audio-Link cable or via the
optional upgrade Module Wirless AudioLink wirelessly with a compatible
audio source (e.g. Loewe MediaVision 3D). If you connect the subwoofer via the
Audio-Link cable, install it with the 26-pole connector at the Loewe TV set and
at the subwoofer (socket Audio Link
Connect the speaker cable to the speaker according to the corresponding instal-
lation instructions. One of the two wires is usually marked black. Connect these
wires marked black to the black screw terminal Speaker Out on the Subwoofer
).
2
Front Front
left right
Loewe TV set (L27xx - SL1xx)
Compact (see gure below for connection diagram) and the black terminal
2
on the speaker. For this, turn the screw lock of the relevant terminal on the sub-
woofer anticlockwise about 5 turns. Guide the wire end into the screw terminal
from below and close the screw terminal by turning it clockwise. Connect the
wires marked black to the red terminals.
Use the mains cable provided to connect the 220 - 240 V socket
subwoofer to a 220-240V 50/60 Hz socket.
Loewe Subwoofer Compact
of the
4
Mains cable
Audio link cable
13 -
