Align the safety storage cabinet > Check the alignment of the safety storage cabinet
Personal: Technical specialist employees
n
1. Remove the sealing lip around the bottom tray.
2. Loosen the fastening screws.
3. Loosen the earthing screw.
4. Remove the bottom tray.
5. Screw the adjustable feet in or out using the hexagon key.
6. Replace the bottom tray.
7. Tighten the earthing screw.
8. Tighten the fastening screws.
9. Position the sealing lip.

6.3.3 Check the alignment of the safety storage cabinet

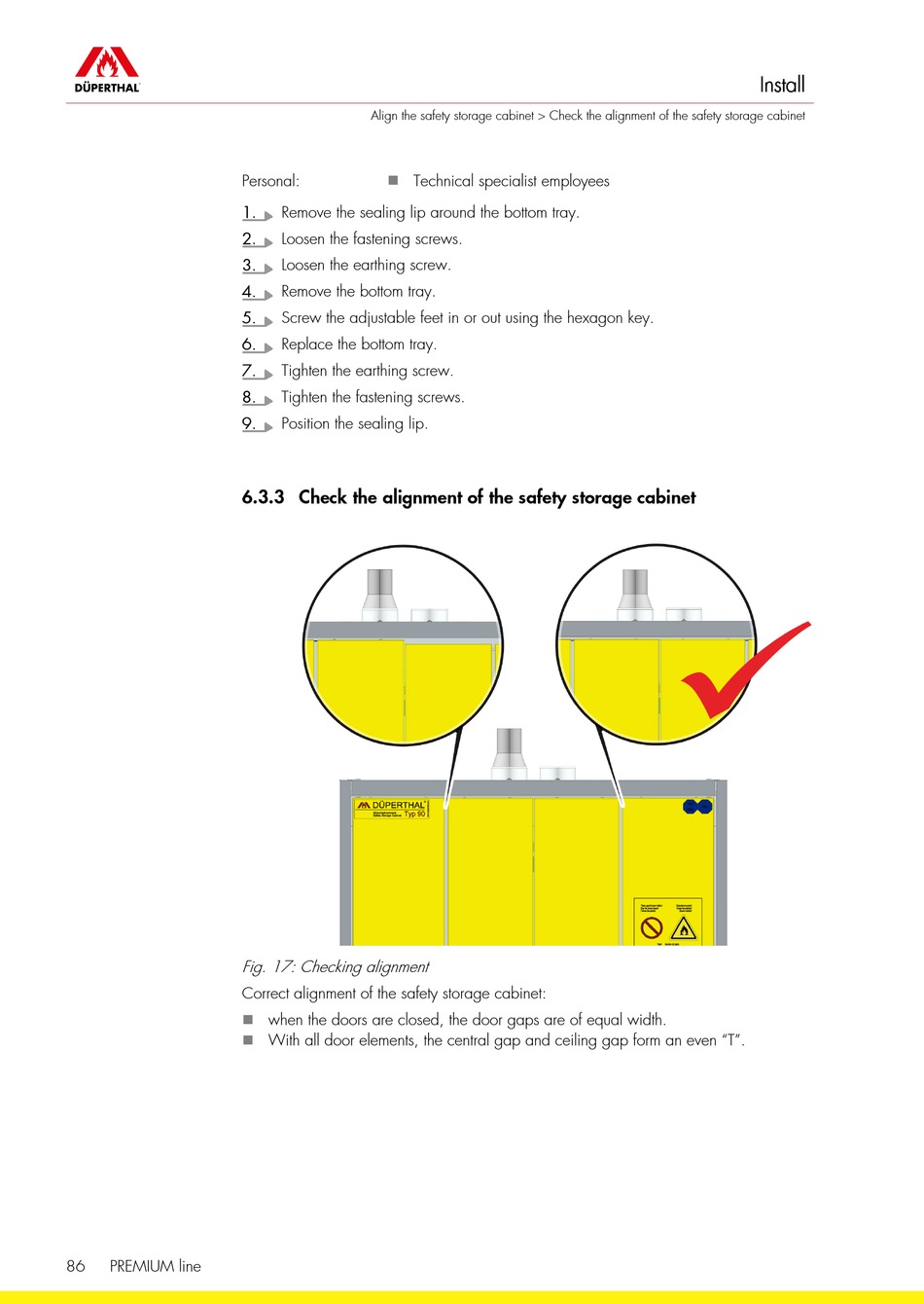

Fig. 17: Checking alignment
Correct alignment of the safety storage cabinet:
when the doors are closed, the door gaps are of equal width.
n
With all door elements, the central gap and ceiling gap form an even "T".
n
