6.2 Mount the plinth panel

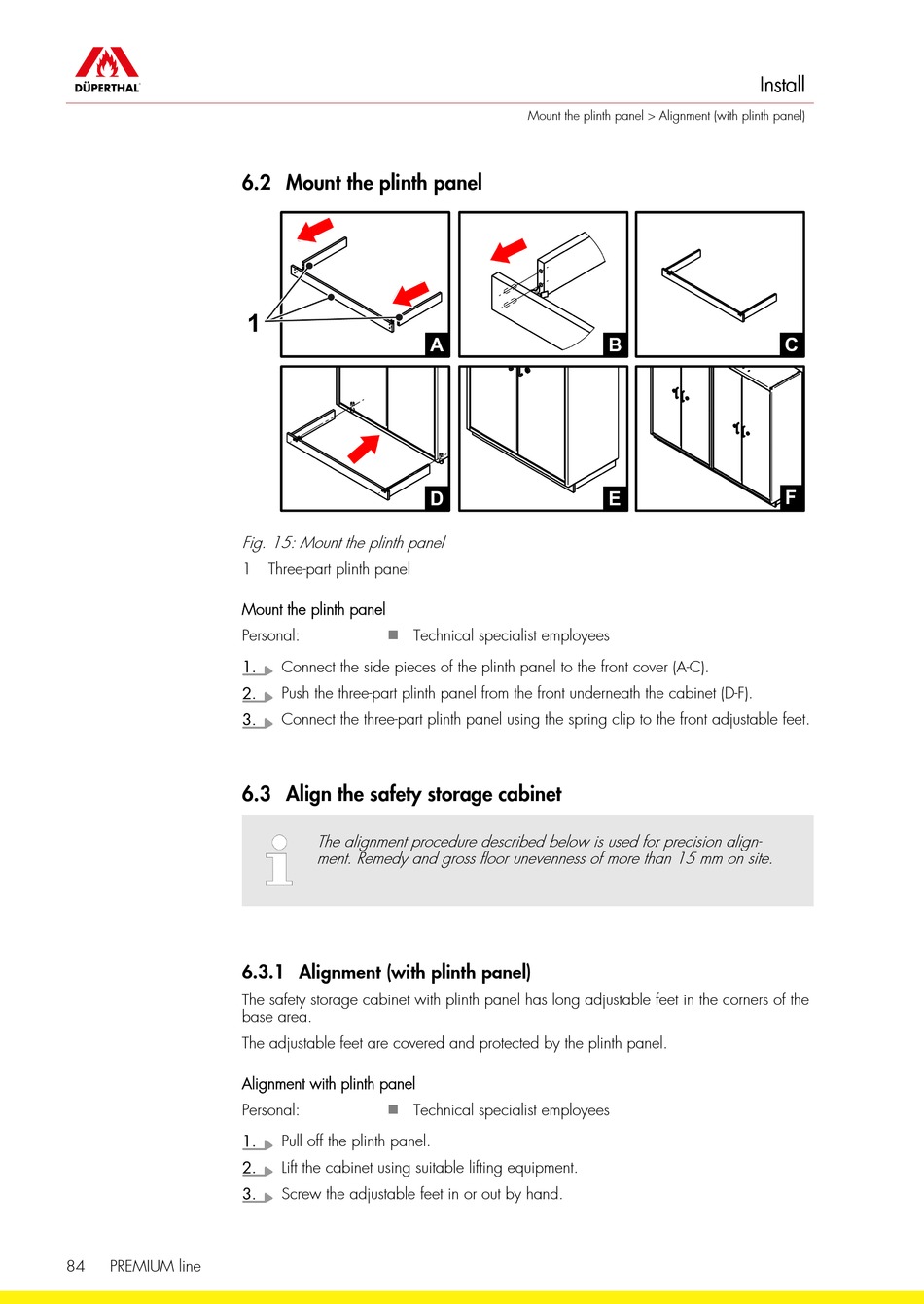

Fig. 15: Mount the plinth panel
1 Three-part plinth panel
Mount the plinth panel
Personal: Technical specialist employees
n
1. Connect the side pieces of the plinth panel to the front cover (A-C).
2. Push the three-part plinth panel from the front underneath the cabinet (D-F).
3. Connect the three-part plinth panel using the spring clip to the front adjustable feet.

6.3 Align the safety storage cabinet

The alignment procedure described below is used for precision align-
ment. Remedy and gross floor unevenness of more than 15 mm on site.

6.3.1 Alignment (with plinth panel)

The safety storage cabinet with plinth panel has long adjustable feet in the corners of the
base area.
The adjustable feet are covered and protected by the plinth panel.
Alignment with plinth panel
Personal: n Technical specialist employees
1. Pull off the plinth panel.
2. Lift the cabinet using suitable lifting equipment.
3. Screw the adjustable feet in or out by hand.
Mount the plinth panel > Alignment (with plinth panel)
