Install

Attaching the adjustable feet

6
6.1 Attaching the adjustable feet

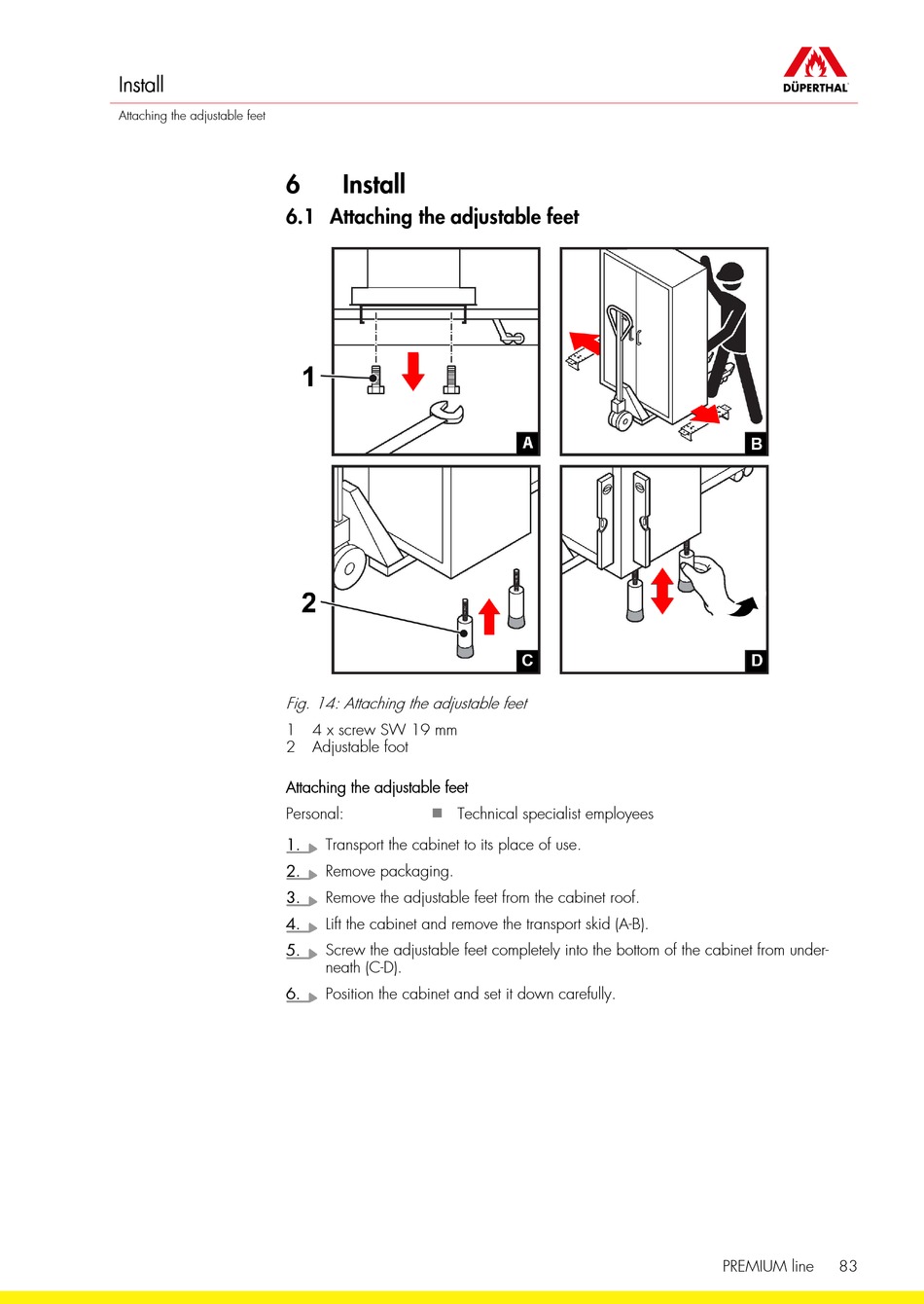

Fig. 14: Attaching the adjustable feet
1
2
Attaching the adjustable feet
Personal:
1.
2.
3.
4.
5.
6.

Install

4 x screw SW 19 mm
Adjustable foot
Technical specialist employees
n
Transport the cabinet to its place of use.
Remove packaging.
Remove the adjustable feet from the cabinet roof.
Lift the cabinet and remove the transport skid (A-B).
Screw the adjustable feet completely into the bottom of the cabinet from under-
neath (C-D).
Position the cabinet and set it down carefully.
PREMIUM line 83
