LEVELING FEET

•
Precautions before operation:
Before operation of accessories, it
shall be ensured that the refrigerator
is disconnected from power.
Before adjusting the leveling feet,
precautions shall be taken to
prevent any personal injury.
•

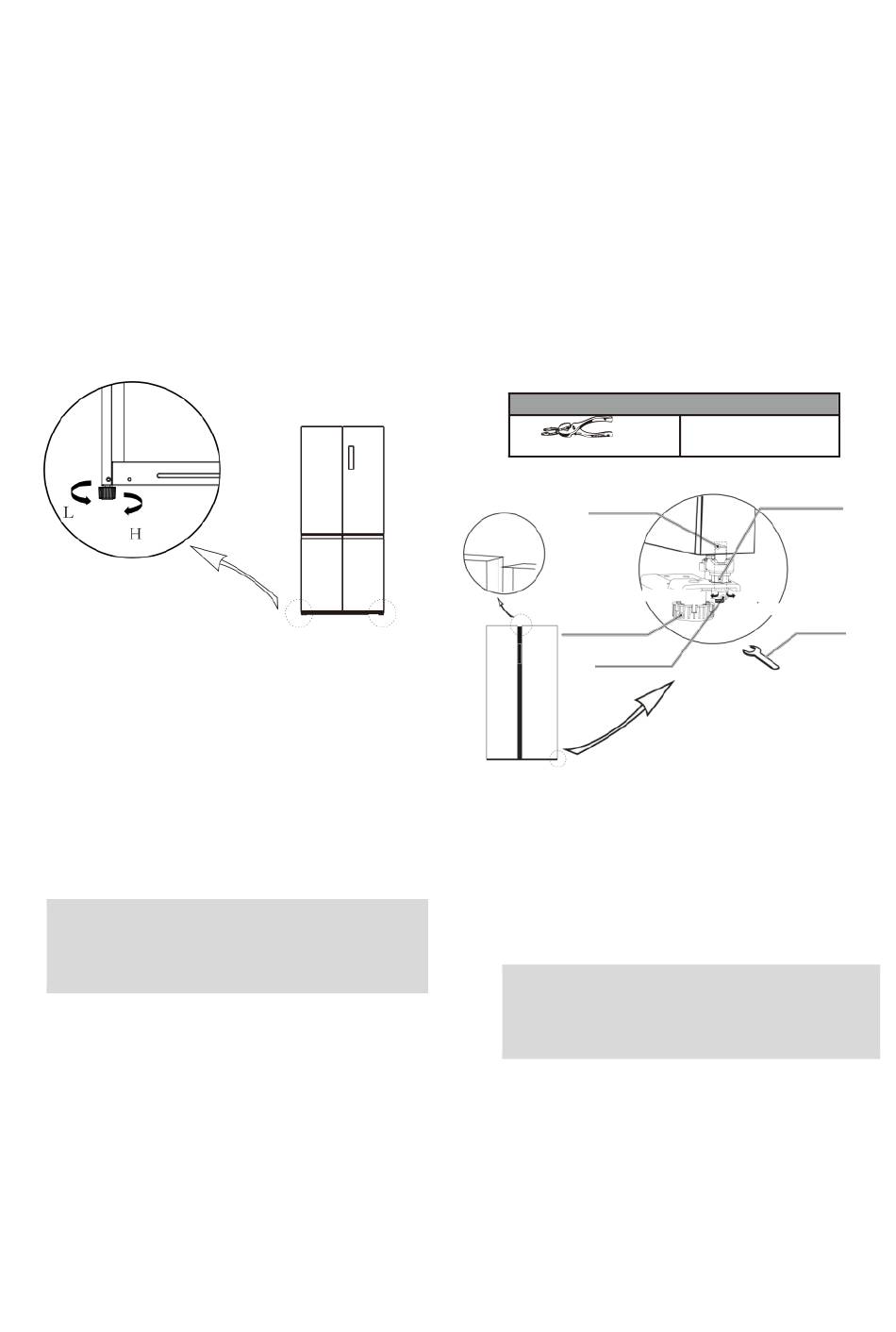

Schematic diagram of the leveling
feet
•
Adjusting procedures:
a. Turn the feet clockwise to raise
the refrigerator;
b. Turn the feet counterclockwise to
lower the refrigerator;
c. Adjust the right and left feet
based on the procedures above to a
horizontal level.
The picture above is only for reference. The
actual configuration will depend on the
physical product or statement by the
distributor

2.7 LEVELING DOOR

•
Precautions before operation:
Before operation of accessories, it
shall be ensured that the refrigerator
is disconnected from power.
Before adjusting the door,
precautions shall be taken to
prevent any personal injury.
•
Schematic diagram of leveling the
door body
List of tools to be provided by the user
Levelling feet
•
Raise the lower door up to the level
of the higher door;
•
Insert the supplied fastener-ring by
using plier in the gap between the
hinge-grommet and the lower hinge.
The number of fasten-rings you will
need to insert depends on the gap.
The picture above is only for reference. The
actual configuration will depend on the
physical product or statement by the
distributor
EN-16
plier
Adjusting nut
Fixed shaft
Left
Right
Locking nut
Wrench
