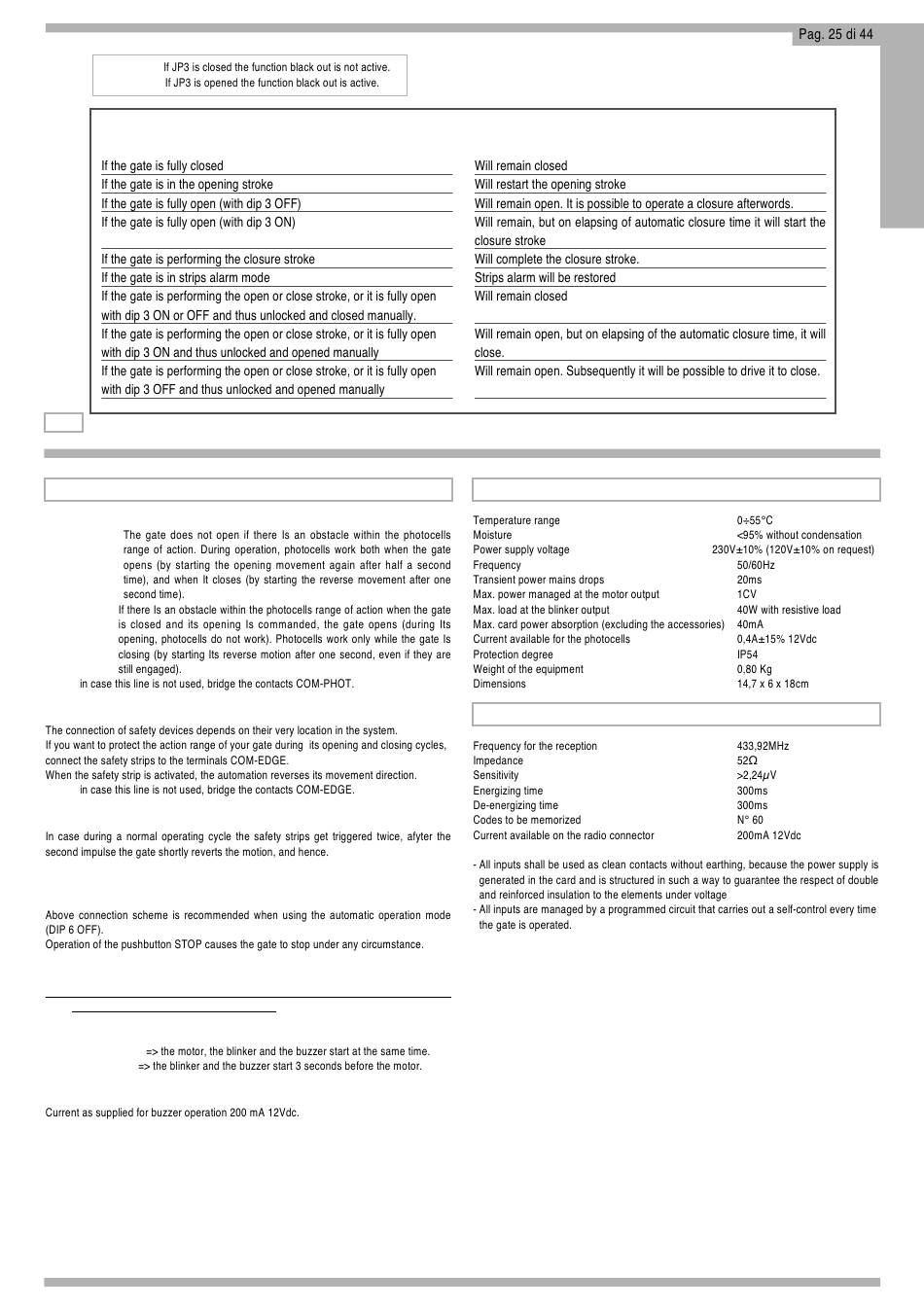

SAFETY ACCESSORIES OPERATION

PHOTOCELL (COM-PHOT.)
If DIP 4 is OFF -
If DIP 4 is ON -
NOTE:
PNEUMATIC MECHANICAL OR ´FOTOCOSTA´ SAFETY STRIPS (COM-EDGE)
NOTE:
SAFETY STRIPS ALARM

STOP BUTTON

(Possible serial connection to common contact of end travel switches)
N.B.: This electric board can supply power ONLY TO BLINKERS WITH (ACG7059)
BLINKING CIRCUIT, with max. 40W lamps.
PRE-BLINKING FUNCTION:
- With DIP 5 on OFF
- With DIP 5 on ON
BUZZER (Optional)
The buzzer emits an intermittent sound signal during opening and closing cycles.
When safety devices are operated (safety edges alarm), the intermittence frequency
of this sound signal Increases.
On power black out
BLINKER
On power restoring
