FASTENING THE INFLATOR

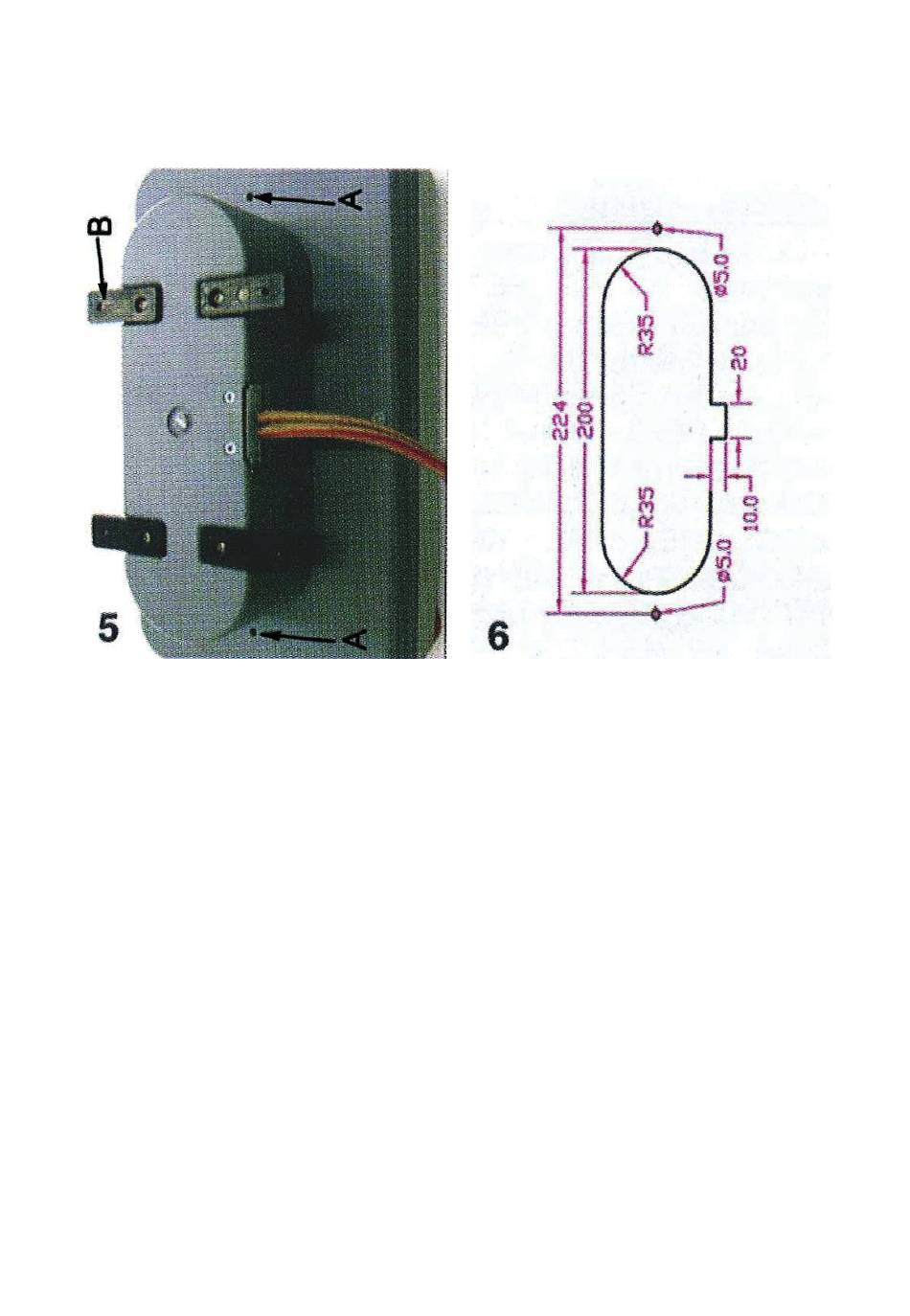

The infl ator can be fastened onto the boat by means of the supplied "B" brackets (fi g. 5). Otherwise, it
can be wall-mounted after drilling a hole (fi g. 6), by fastening it to the "A" holes (fi g. 5) by means of Ø
4.5 mm self-threading screws. The maximum screw length inside the infl ator is 8 mm.
PREPARING THE INFLATION HOSE
Cut the hose to the desired size. Insert the red fi tting into one of the hose ends to connect it to the
infl ator.
At the opposite end, insert and glue the soft PVC reduction unit. Then insert the valve fi tting, taking
care to select from the kit supplied the one that allows the valve to open fully.
