Main Screen - nVent RAYCHEM HWAT-ECO V5 Installationshinweise

Language
selection
EN
DE
DK
CZ
FR
IT
NL
PL
ZH
Test
programme start

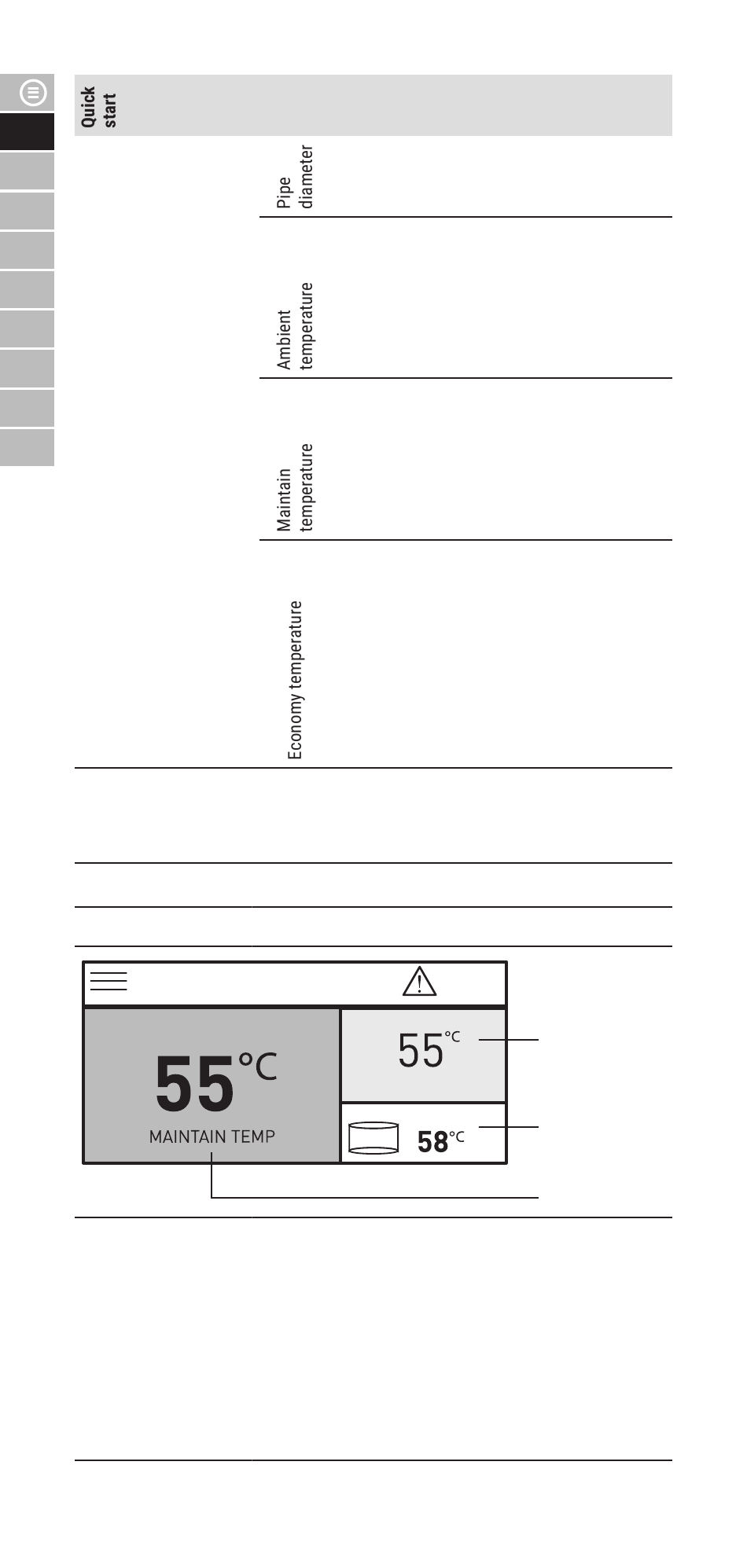

MAIN SCREEN

HOT WATER MAINTENANCE
NOW
Contains 3 areas:
SYSTEM
1. Actual Maintain temperature (red area)
INFO, RESET, SERVICE, TEST....
2. Next event temperature (grey area)
HEATING CABLE & PIPE
CABLE TYPE, PIPE DAIMETER,...
3. Hot water storage temperature
GENERAL SETTINGS
(white area- if boiler sensor is connected and active)
COUNTRY, LANGUAGES, UNITS,...
Additional icons for settings, relay (ON/OFF), key lock or warning will be
WATER TEMP. & PROGRAM
APPARTMENT, MAINTAIN, ECONOMY,....
displayed.When Lock is "on" a password is needed to access the parameter
menus. After the correct 4 number password is entered, each parameter in the
setup can be changed. The unit locks again after a 10 min. time out (no keys
pressed).
INFO
TEST PROGRAM
|
12 nVent.com/RAYCHEM
RESET
Select your language from the language
menu.
Selection range DN 15 up to DN 125.
The ambient temperature is the temperature
inside the room where the heating cable is
installed. Use the +/– keys to select a
temperature from 10°C to 25°C. Clicking on
the "back" icon will store the value and show
it in plumbing settings. Range: from 10°C to
30°C.
The maintain temperature is the water
temperature that you set for normal use. The
minimum temperature is 37°C or the economy
temperature, whichever is higher.
The maximum temperature depends on cable
type, pipe thickness, insulation thickness and
ambient temperature.
The economy temperature is the water
temperature for periods in which the amount
of hot water used is low (at night) or high
(peak period).
Select the temperature using the +/– keys.
The minimum temperature is 37°C in the
programme Kindergarten and 41°C in the
Apartments programme. The maximum
temperature is the selected maintain
temperature.
The test programme runs for 30 minutes,
during which all parameters will be ignored to
check heating cable and connection on site.
You can stop the test programme at any time.
NEXT
ECONOMY TEMP
SETTING
SYSTEM
14 : 14
AT 17:00
BOILER
14 : 17
14 : 17
SELECT LANGUAGE
grey area
SELECT COUNTRY
SELECT DATE
white area
SELECT TIME
SELECT ALARM
red area
SELECT SAVING TIME
SELECT WATER TEMPERATURE
SELECT PROGRAM
PROGRAM TIMER
G
W
