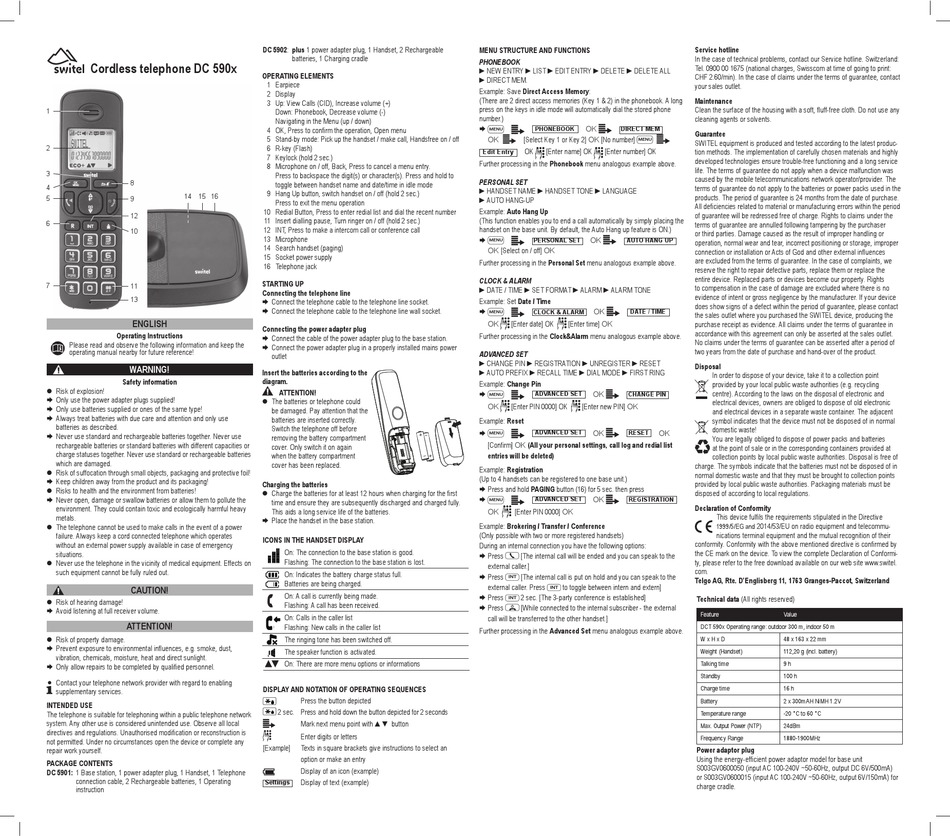

Cordless telephone DC 590x
1
2
3
8
4
14 15 16
5
9
12
6
10
7
11
13
ENGLISH
Operating Instructions
Please read and observe the following information and keep the
operating manual nearby for future reference!
WARNING!
Safety information
Risk of explosion!
Only use the power adapter plugs supplied!
Only use batteries supplied or ones of the same type!
Always treat batteries with due care and attention and only use
batteries as described.
Never use standard and rechargeable batteries together. Never use
rechargeable batteries or standard batteries with different capacities or
charge statuses together. Never use standard or rechargeable batteries
which are damaged.
Risk of suffocation through small objects, packaging and protective foil!
Keep children away from the product and its packaging!
Risks to health and the environment from batteries!
Never open, damage or swallow batteries or allow them to pollute the
environment. They could contain toxic and ecologically harmful heavy
metals.
The telephone cannot be used to make calls in the event of a power
failure. Always keep a cord connected telephone which operates
without an external power supply available in case of emergency
situations.
Never use the telephone in the vicinity of medical equipment. Effects on
such equipment cannot be fully ruled out.
CAUTION!
Risk of hearing damage!
Avoid listening at full receiver volume.
ATTENTION!
Risk of property damage.
Prevent exposure to environmental influences, e.g. smoke, dust,
vibration, chemicals, moisture, heat and direct sunlight.
Only allow repairs to be completed by qualified personnel.
Contact your telephone network provider with regard to enabling
supplementary services.
INTENDED USE
The telephone is suitable for telephoning within a public telephone network
system. Any other use is considered unintended use. Observe all local
directives and regulations. Unauthorised modification or reconstruction is
not permitted. Under no circumstances open the device or complete any
repair work yourself.
PACKAGE CONTENTS
DC 5901: 1 Base station, 1 power adapter plug, 1 Handset, 1 Telephone
connection cable, 2 Rechargeable batteries, 1 Operating
instruction
DC 5902: plus 1 power adapter plug, 1 Handset, 2 Rechargeable
batteries, 1 Charging cradle
OPERATING ELEMENTS
1 Earpiece
2 Display
3 Up: View Calls (CID), Increase volume (+)
Down: Phonebook, Decrease volume (-)
Navigating in the Menu (up / down)
4 OK, Press to confirm the operation, Open menu
5 Stand-by mode: Pick up the handset / make call, Handsfree on / off
6 R-key (Flash)
7 Keylock (hold 2 sec.)
8 Microphone on / off, Back, Press to cancel a menu entry.
Press to backspace the digit(s) or character(s). Press and hold to
toggle between handset name and date/time in idle mode
9 Hang Up button, switch handset on / off (hold 2 sec.)
Press to exit the menu operation
10 Redial Button, Press to enter redial list and dial the recent number
11 Insert dialling pause, Turn ringer on / off (hold 2 sec.)
12 INT, Press to make a intercom call or conference call
13 Microphone
14 Search handset (paging)
15 Socket power supply
16 Telephone jack
STARTING UP
Connecting the telephone line
Connect the telephone cable to the telephone line socket.
Connect the telephone cable to the telephone line wall socket.
Connecting the power adapter plug
Connect the cable of the power adapter plug to the base station.
Connect the power adapter plug in a properly installed mains power
outlet
Insert the batteries according to the
diagram.
ATTENTION!
The batteries or telephone could
be damaged. Pay attention that the
batteries are inserted correctly.
Switch the telephone off before
removing the battery compartment
cover. Only switch it on again
when the battery compartment
cover has been replaced.
Charging the batteries
Charge the batteries for at least 12 hours when charging for the first
time and ensure they are subsequently discharged and charged fully.
This aids a long service life of the batteries.
Place the handset in the base station.
ICONS IN THE HANDSET DISPLAY
On: The connection to the base station is good.
Flashing: The connection to the base station is lost.
On: Indicates the battery charge status full.
Batteries are being charged.
On: A call is currently being made.
Flashing: A call has been received.
On: Calls in the caller list
Flashing: New calls in the caller list
The ringing tone has been switched off.
The speaker function is activated.
On: There are more menu options or informations
DISPLAY AND NOTATION OF OPERATING SEQUENCES
Press the button depicted
2 sec. Press and hold down the button depicted for 2 seconds
Mark next menu point with ▲▼ button
Enter digits or letters
[Example]
Texts in square brackets give instructions to select an
option or make an entry
Display of an icon (example)
Display of text (example)
Settings
MENU STRUCTURE AND FUNCTIONS
PHONEBOOK
►NEW ENTRY ►LIST ►EDIT ENTRY ►DELETE ►DELETE ALL
►DIRECT MEM.
Example: Save Direct Access Memory:
(There are 2 direct access memories (Key 1 & 2) in the phonebook. A long
press on the keys in idle mode will automatically dial the stored phone
number.)
PHONEBOOK
OK
DIRECT MEM
MENU
OK
[Select Key 1 or Key 2] OK [No number]
MENU
[Enter name] OK
[Enter number] OK
Edit Entry
OK
Further processing in the Phonebook menu analogous example above.
PERSONAL SET
►HANDSET NAME ►HANDSET TONE ►LANGUAGE
►AUTO HANG-UP
Example: Auto Hang Up
(This function enables you to end a call automatically by simply placing the
handset on the base unit. By default, the Auto Hang up feature is ON.)
PERSONAL SET
OK
AUTO HANG UP
MENU
OK [Select on / off] OK
Further processing in the Personal Set menu analogous example above.
CLOCK & ALARM
►DATE / TIME ►SET FORMAT ►ALARM ►ALARM TONE
Example: Set Date / Time
OK
DATE / TIME
CLOCK & ALARM
MENU
[Enter date] OK
[Enter time] OK
OK
Further processing in the Clock&Alarm menu analogous example above.
ADVANCED SET
►CHANGE PIN ►REGISTRATION ►UNREGISTER ►RESET
►AUTO PREFIX ►RECALL TIME ►DIAL MODE ►FIRST RING
Example: Change Pin
ADVANCED SET
OK
CHANGE PIN
MENU
OK
[Enter PIN 0000] OK
[Enter new PIN] OK
Example: Reset
ADVANCED SET
OK
RESET
MENU
[Confirm] OK (All your personal settings, call log and redial list
entries will be deleted)
Example: Registration
(Up to 4 handsets can be registered to one base unit.)
Press and hold PAGING button (16) for 5 sec. then press
ADVANCED SET
OK
REGISTRATION
MENU
[Enter PIN 0000] OK
OK
Example: Brokering / Transfer / Conference
(Only possible with two or more registered handsets)
During an internal connection you have the following options:
Press
[The internal call will be ended and you can speak to the
external caller.]
Press
[The internal call is put on hold and you can speak to the
INT
external caller. Press
to toggle between intern and extern]
INT
Press
2 sec. [The 3-party conference is established]
INT
Press
[While connected to the internal subscriber - the external
call will be transferred to the other handset.]
Further processing in the Advanced Set menu analogous example above.
Service hotline
In the case of technical problems, contact our Service hotline. Switzerland:
Tel. 0900 00 1675 (national charges, Swisscom at time of going to print:
CHF 2.60/min). In the case of claims under the terms of guarantee, contact
your sales outlet.
Maintenance
Clean the surface of the housing with a soft, fluff-free cloth. Do not use any
cleaning agents or solvents.
Guarantee
SWITEL equipment is produced and tested according to the latest produc-
tion methods. The implementation of carefully chosen materials and highly
developed technologies ensure trouble-free functioning and a long service
life. The terms of guarantee do not apply when a device malfunction was
caused by the mobile telecommunications network operator/provider. The
terms of guarantee do not apply to the batteries or power packs used in the
products. The period of guarantee is 24 months from the date of purchase.
All deficiencies related to material or manufacturing errors within the period
of guarantee will be redressed free of charge. Rights to claims under the
terms of guarantee are annulled following tampering by the purchaser
or third parties. Damage caused as the result of improper handling or
operation, normal wear and tear, incorrect positioning or storage, improper
connection or installation or Acts of God and other external influences
are excluded from the terms of guarantee. In the case of complaints, we
reserve the right to repair defective parts, replace them or replace the
entire device. Replaced parts or devices become our property. Rights
to compensation in the case of damage are excluded where there is no
evidence of intent or gross negligence by the manufacturer. If your device
does show signs of a defect within the period of guarantee, please contact
the sales outlet where you purchased the SWITEL device, producing the
purchase receipt as evidence. All claims under the terms of guarantee in
accordance with this agreement can only be asserted at the sales outlet.
No claims under the terms of guarantee can be asserted after a period of
two years from the date of purchase and hand-over of the product.
Disposal
In order to dispose of your device, take it to a collection point
provided by your local public waste authorities (e.g. recycling
centre). According to the laws on the disposal of electronic and
electrical devices, owners are obliged to dispose of old electronic
and electrical devices in a separate waste container. The adjacent
symbol indicates that the device must not be disposed of in normal
domestic waste!
OK
You are legally obliged to dispose of power packs and batteries
at the point of sale or in the corresponding containers provided at
collection points by local public waste authorities. Disposal is free of
charge. The symbols indicate that the batteries must not be disposed of in
normal domestic waste and that they must be brought to collection points
provided by local public waste authorities. Packaging materials must be
disposed of according to local regulations.
Declaration of Conformity
This device fulfils the requirements stipulated in the Directive
2014/53/EU on radio equipment and telecommu-
1999/5/EG and
nications terminal equipment and the mutual recognition of their
conformity. Conformity with the above mentioned directive is confirmed by
the CE mark on the device. To view the complete Declaration of Conformi-
ty, please refer to the free download available on our web site www.switel.
com.
Telgo AG, Rte. D'Englisberg 11, 1763 Granges-Paccot, Switzerland
Technical data (All rights reserved)
Feature
Value
DCT 590x Operating range: outdoor 300 m, indoor 50 m
W x H x D
48 x 163 x 22 mm
Weight (Handset)
112,20 g (incl. battery)
Talking time
9 h
Standby
100 h
Charge time
16 h
Battery
2 x 300mAH NiMH 1.2V
Temperature range
-20 °C to 60 °C
Max. Output Power (NTP)
24dBm
Frequency Range
1880-1900MHz
Power adaptor plug
Using the energy-efficient power adaptor model for base unit
S003GV0600050 (input AC 100-240V ~50-60Hz, output DC 6V/500mA)
or S003GV0600015 (input AC 100-240V ~50-60Hz, output 6V/150mA) for
charge cradle.
Werbung
