Introduction
2 years in the making, introducing the FMS 80mm Rafale.
Designed by the French Dassault company, the Rafale is a
highly maneuverable delta-winged fighter with a full-flying
canard. The excellent dogfighting, carrier operations and air to
surface attack performance of the Rafale has allowed it to gain
worldwide sucess.
Like its full-scale counterpart, the FMS 80mm Rafale features
an attractive trim scheme, excellent scale details and fully
functional canards- allowing the aircraft to be truly unique when
compared to other 80mm EDF aircraft on the market today.
Developed to replicate both the looks and performance of the
real aircraft, FMS has dedicated it's decades long experience
into designing the 80mm Rafale. Details such as the pilot,
cockpit interior, panels, removable armaments, auxiliary fuel
tanks, refueling probe, targeting sensor etc; dynamic features
such as functional LED navigation and landing lights, CNC
shock-absorbing electric retracts, functional canards and flaps
etc.
Like all other FMS aircraft, the 80mm Rafale was designed to
reduce build time to a minimum. Utilising screws, latches and
quick connectors, experienced builders can complete the build
process in as little as 5 minutes.
Functions such as delta-mixing, sequential landing gear bay
doors, alternating flash navigation lights, nose gear landing
lights, slowed flaps etc are all controlled by a central control
board. An 80mm 12 bladed EDF with a platinum edition 3280
inrunner motor and 100A high performance ESC easily accom-
plishes fighter jets maneuvers with realistic sound and speed.
Don't miss out on your chance to own one of the best looking
modern fighters- the FMS 80mm Rafale!

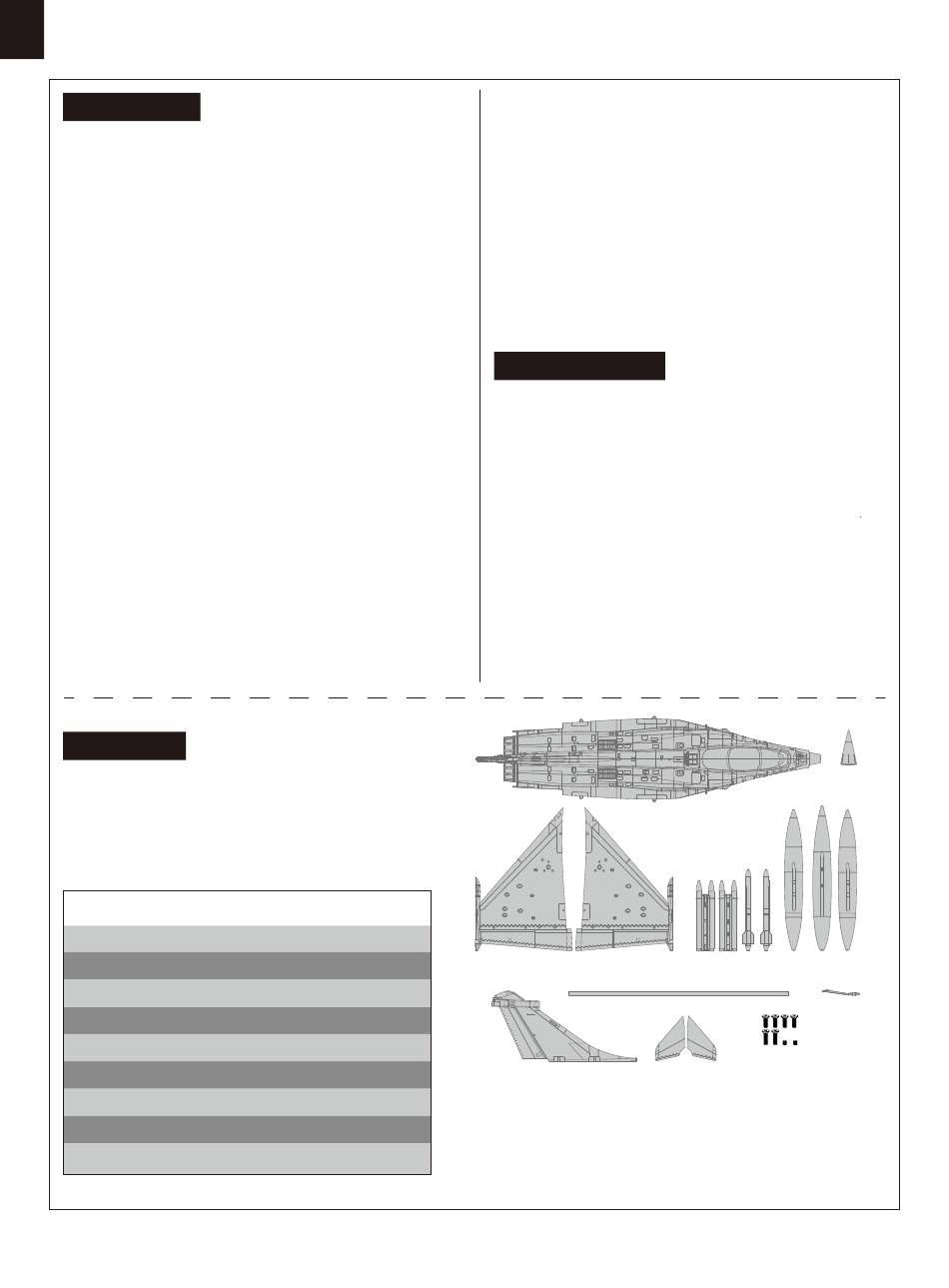

Kit contents
Before assembly, please inspect the contents of the kit. The
photo below details the contents of the kit with labels. If any
parts are missing or defective, please identify the name or
part number (refer to the spare parts list near the end of the
manual) then contact your local shop or email us: support
@fmsmodel.com.
Specifications
Wingspan: 974mm /38.3 in
Overall Length: 1409mm /55.5 in
Flying Weight: Around 3280g
Motor Size: 3280 KV2100
Wing Load: 85.2g/dm² (0.17oz/in²)
Wing Area: 38.5dm² (596.6 sq.in)
ESC: 100A
Servo: 13g X 7pcs,9g X 2pcs
Recommended Battery: 22.2V4000mAh-5000mAh 45c
Features：
• 3280-2100KV platinum edition inrunner motor with a
high-performance 100A ESC
• Delta wing design with full flying canards and functional flaps
• CNC metal shock-absorbing landing gear
• Functional navigation and landing lights
• Central function controller
• Functional and static details lovingly replicated
• Water based vibrant trim scheme
Table of contents
..............................................................
..............................................................
Kit contents
........................................................
.....................................................
......................................................
......................................................
............................................................
........................................................
A.
C.
F.
G.
A:
Fuselage
E:
Auxiliary fuel tanks
B:
Nose cone
F:
Vertical stabilizer
C:
Main wing
G:
Wing spar
D:
Weapons
H:
Fuel probe
package
3
.........................................
..............................
.................................................
...............................................
...............................................
....................
E.
D.
H.
I.
J.
I:
Canard
J:
Screw set
（HKM3.0x16*4
HKM3.0x20*2
4x3mm set screw*2）
3
3
4
10
10
