Christopeit Sport TOTAL EXERCISER TE1000 Montage- Und Bedienungsanleitung Seite 11

GB

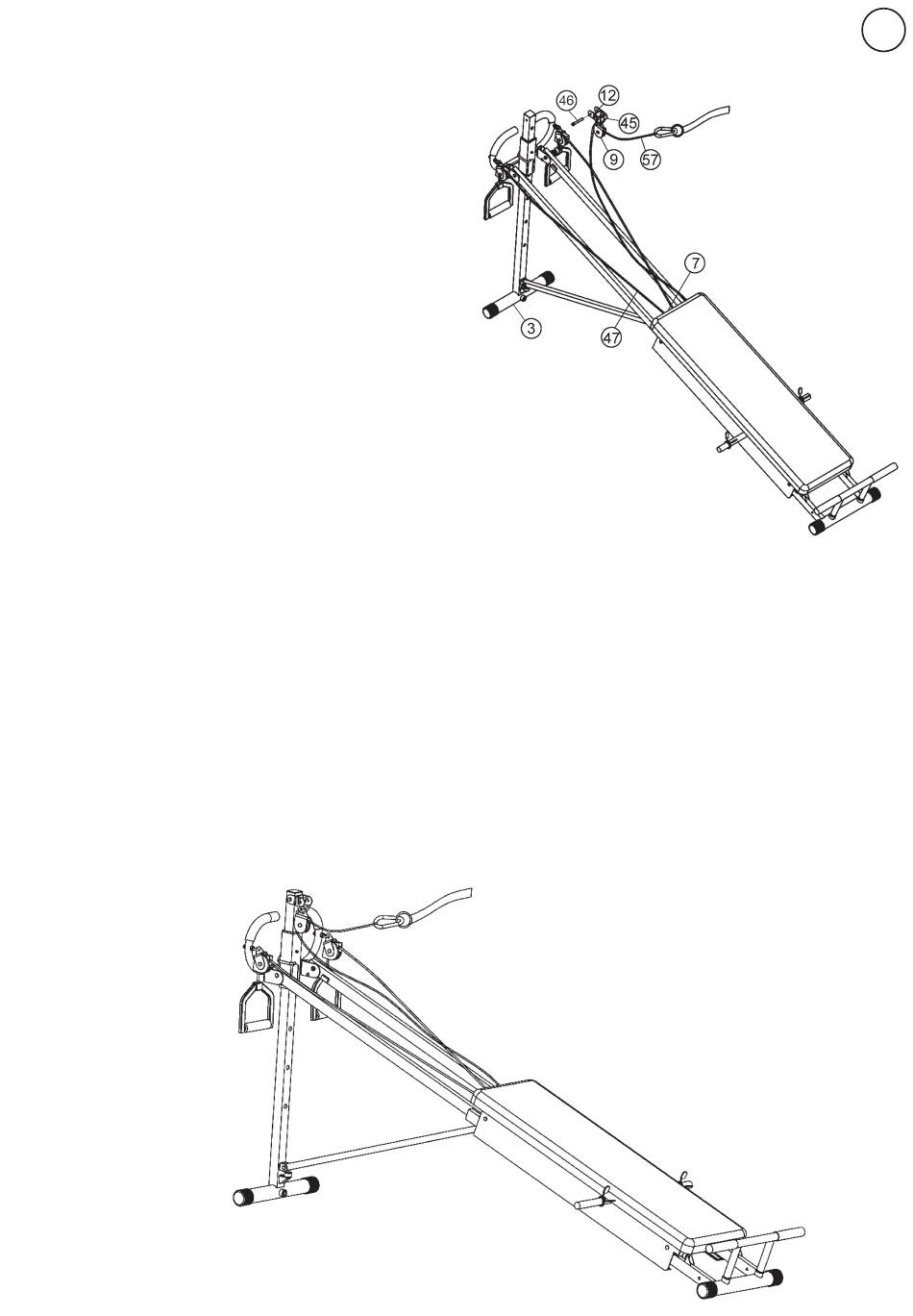

STEP 3
Attach the rope for ankle strap (57).
1. Attach the ring bracket (12) at highest position of rear foot
(3) in right position, so that you can put in the D shape ring (45)
from above into the ring bracket (12). Secure the ring bracket
(12) with locking pin 2 (46) at rear foot (3).
2. Hang in the pulley bracket 1 (9) of the rope for ankle strap
(57) from above into the D shape ring (45) and put the D shape
ring (45) into the ring bracket (12). The rope for ankle strap
(57) must come out on top of the pulley.
3. Connect the rear end of rope for ankle strap (57) with
carbine hook (54) at roller slide.
Attention! Only one rope has to connect with the roller slide to
avoid a tangling of ropes and disturb of exercise.
CHECKS
1. Check the correct installation and function of all screwed
and plug connections. Installation is thereby complete.
2. When everything is in order, familiarize yourself with the
machine at a low resistance setting and make your individual
adjustments.
Note: Please keep the tool set and the instructions in a safe
place as these may be required for repairs or spare parts or-
ders becoming necessary later.
