ASSEMBLY INSTRUCTIONS
Before beginning assembly, be sure to observe our
recommendations and safety instructions. Some parts are
pre assembled.

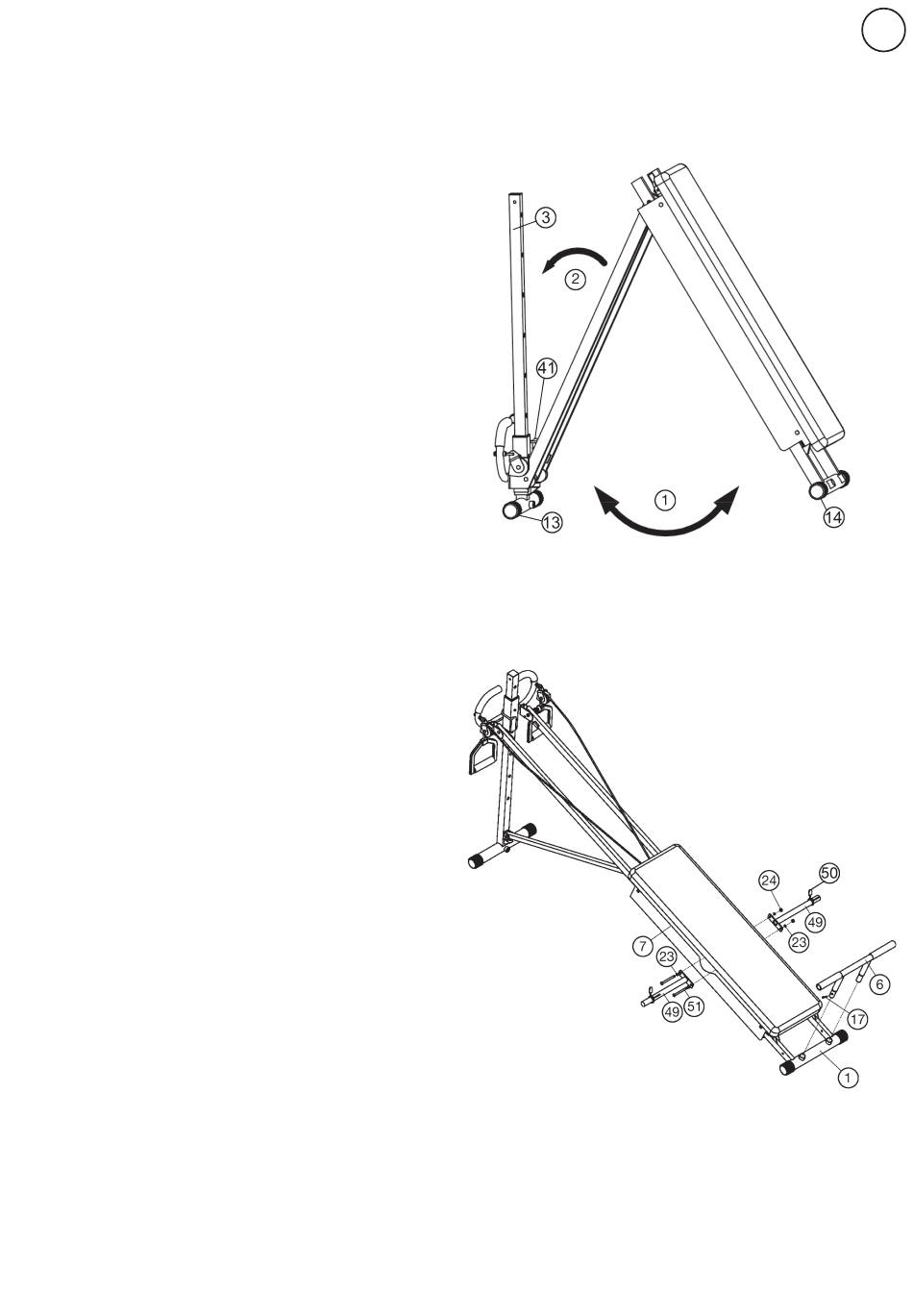

STEP 1
Fold out the exercise equipment.
1. Remove the pre-assembled unit from packaging and put it
with foot caps (13+14) on the floor.
2. Fold out the pre-assembled unit a little bit for the first step
like arrow (1) shows.
3. Pull out the unlock pin (41) and go on with folding out with
rear foot (3) as arrow 2 shows. Only by pulling out unlock pin
(41) you can fold out completely the exercise equipment.
Attention! Folding in and out the TE1000 needs special
attention and very carefully move, because of squeezing
danger. If necessary ask a 2nd person for help.
STEP 2
Attach the free weight bar (49) and foot support (6).
1. Attach the free weight bars (49) on both sides of the roller
slide (7) by using screws (51), washers (23) and nuts (24).
2. Slide on the spring clamps (50) onto the free weight bars
(49) to secure optionally weight disks.
3. Put the foot support (6) into the appropriate holder of front
foot (1) and secure position with locking pin 1 (17).
Note: It depends on the exercise if the foot support (6) is
assembled or not. If you do exercise with foot support (6) you
have to secure the position with locking pin 1 (17), because of
safety reasons.
