Operation Manual / Power2 850-M / High-pressure stage

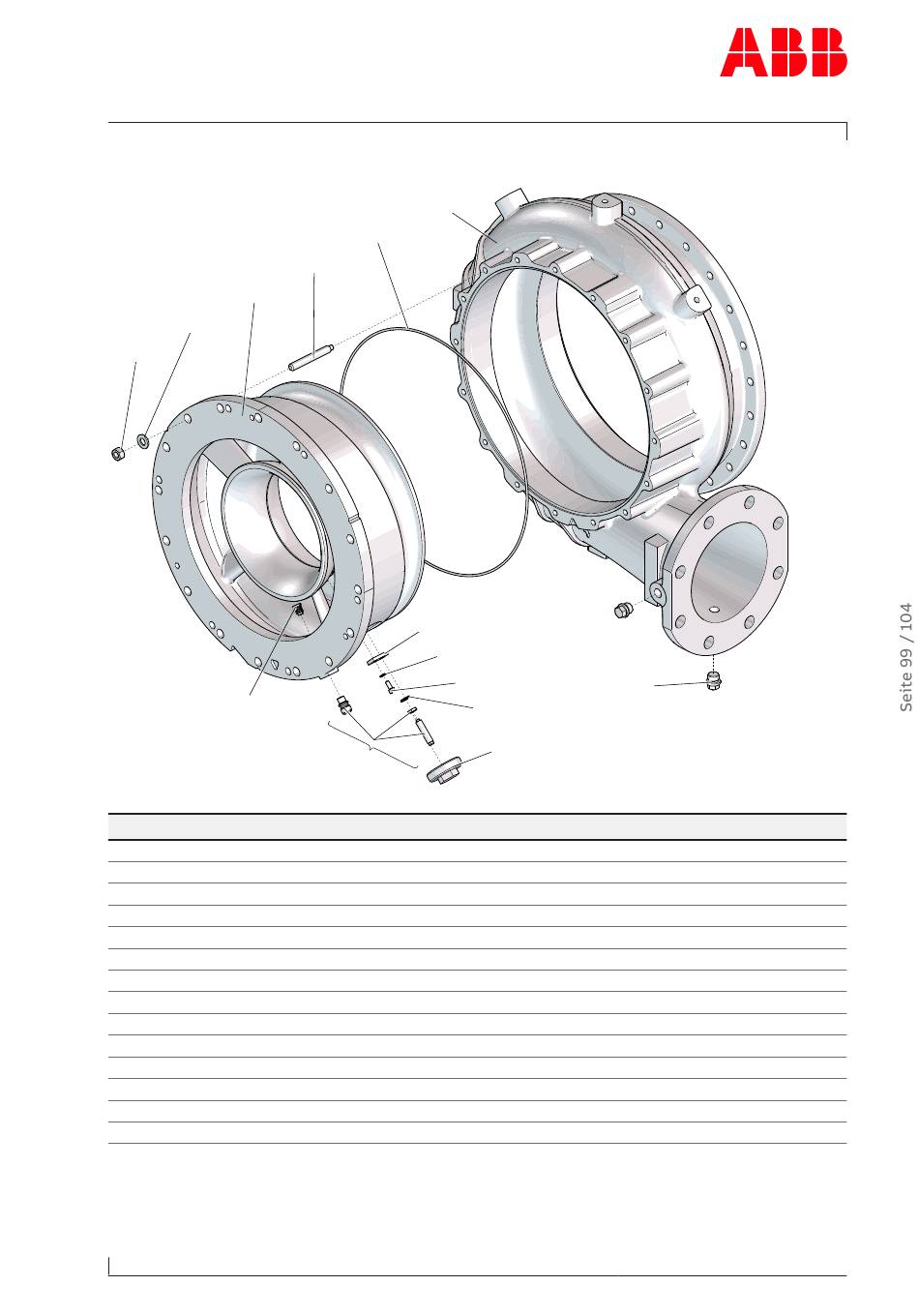

13 Ersatzteile / 13.2 Spare part – Illustrations
Compressor casing
77000
72003*
72004*
86516
* = Available within the spare part set
Part no.
72000
72002
72003*
72004*
72005
77000
77012
77040*
86505
86507
86508
86509
86510
86516
Tab. 58
© Copyright 2022 ABB. All rights reserved.
72000
77040*
72002
86507
86508
86510
86505
Designation
Compressor casing
Stud
Washer
Hexagon nut
Screw plug
Wall insert
Screw plug
O-ring
Speed sensor
Plate
Wedge lock washer
Wedge lock washer
Socket screw
Grommet
