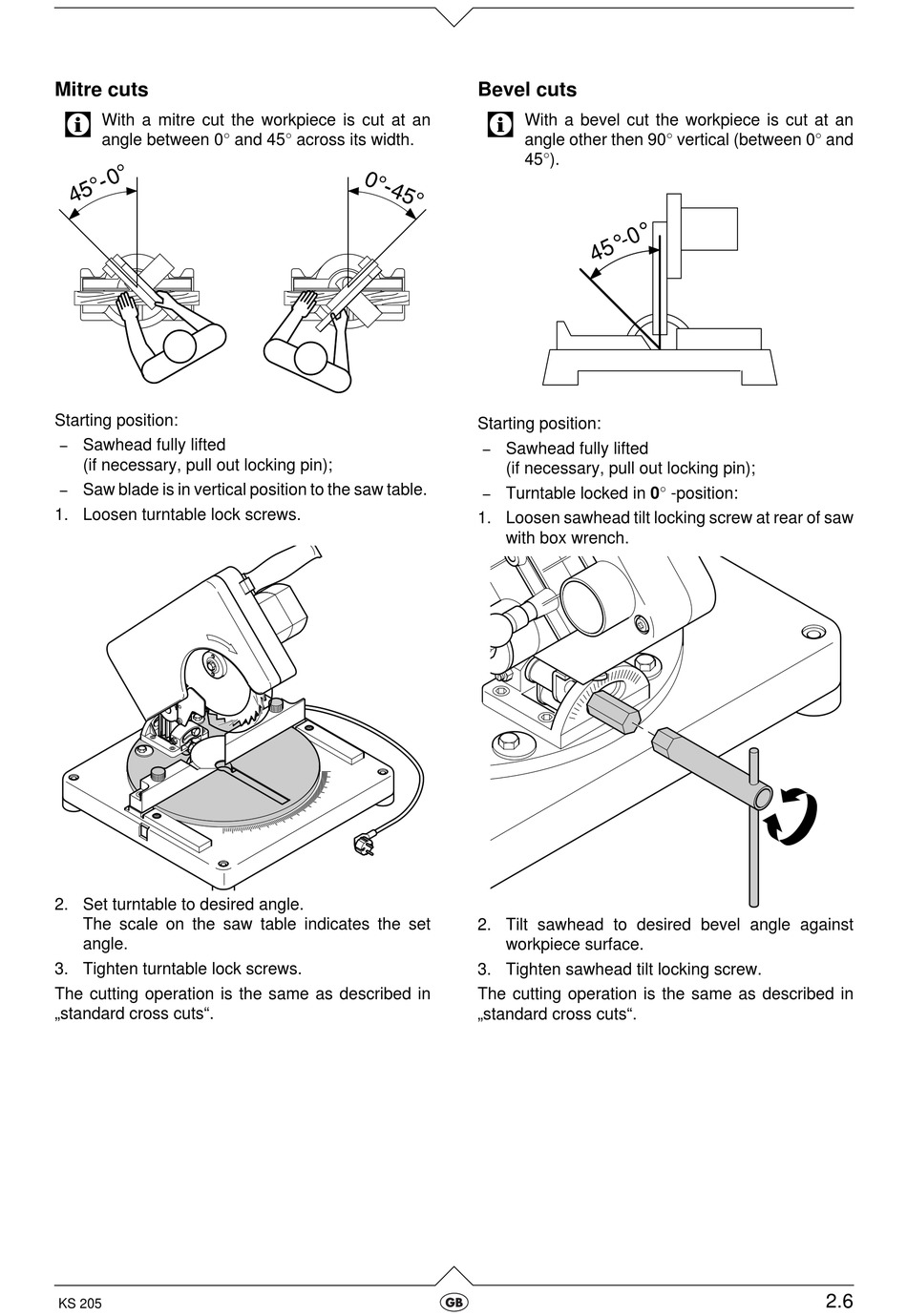

Mitre cuts

3
With a mitre cut the workpiece is cut at an
angle between 0° and 45° across its width.
Starting position:
- Sawhead fully lifted
(if necessary, pull out locking pin);
- Saw blade is in vertical position to the saw table.
1. Loosen turntable lock screws.
2. Set turntable to desired angle.
The scale on the saw table indicates the set
angle.
3. Tighten turntable lock screws.
The cutting operation is the same as described in
„standard cross cuts".
KS 205

Bevel cuts

3
With a bevel cut the workpiece is cut at an
angle other then 90° vertical (between 0° and
45°).
Starting position:
- Sawhead fully lifted
(if necessary, pull out locking pin);
- Turntable locked in 0° -position:
1. Loosen sawhead tilt locking screw at rear of saw
with box wrench.
2. Tilt sawhead to desired bevel angle against
workpiece surface.
3. Tighten sawhead tilt locking screw.
The cutting operation is the same as described in
„standard cross cuts".
2.6
