Back Box Installation in Drywalls

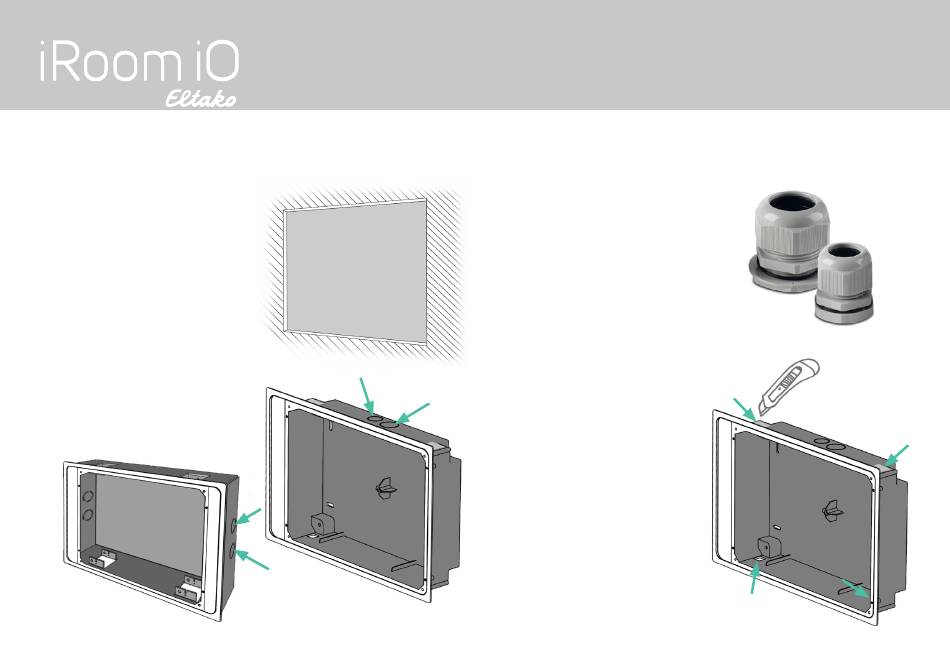

1. Prepare the recess in the wall
using the included cut-out
template. See also cut-out
dimensions on page 24.
2. Remove the knockout(s) for the
power cable from the back box.
touchDock-mini
Back Box
touchDock
Back Box
3. Feed the power cable through
the opening in the back box.
Use the included cable fitting(s)
that provide strain-relief.
4. This step applies only to
touchDock, not to touchDock
mini:
With a cardboard knife, cut
small holes into the silver
safety strips that cover the
corner openings for the
mounting clamps.
Do not remove the safety
strips since they protect your
docking station from dust and
dirt buildup.
