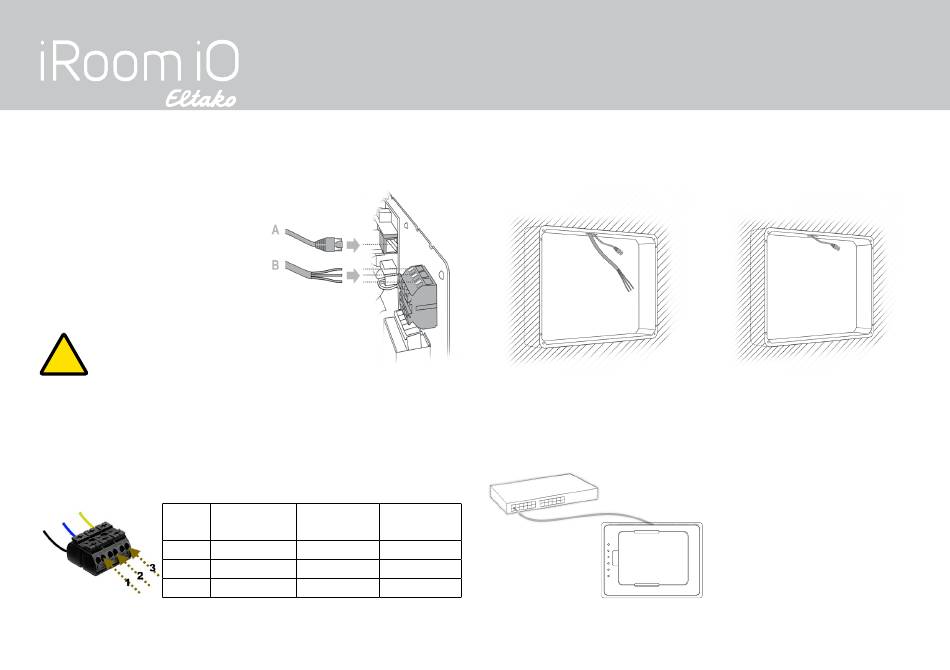

Connect Power / Ethernet Cables to the Docking Station
Connect network cable (A) and
optional power wires (B) to the
connectors on the mainboard of
the docking station. Power wires
are only needed if you choose
to power the unit through 100 -
240 V AC.
Important Note
!
Please refer to the Electrical
Safety Information on page 25.
Option I: Connecting 100-240VAC
Connect the wires to the terminal according to color-code.
Number
1
2
3
This information is supplied without liability.
European stan- US standard
dard color code color code
black/brown black
blue white neutral (N)
yellow/green green ground (PE)
Option I: LAN & 100-240V AC
iRoom touchDock with device
Option II: PoE+ Switch or Injector
iRoom touchDock without device
Naming
PoE+ CAT5e/6
cable
hot (L)
iRoom touchDock simple
Option II: PoE+ (IEEE 802.3at)
iRoom touchDock 2020 Lineart
Important Note
PoE+ (IEEE 802.3at)
If you use a managed PoE+
Switch or Injector
switch set the PoE+ port
power output for your
docking station to 30 Watts
(IEEE 802.3at). touchDock
will not work with 15 Watts
(IEEE 802.af) or passive
PoE 24V.
