Installation
touchDock or touchDock mini may only be used with the included
back box! Operating the device without the back box leads to a loss of
warranty rights. Use for purposes not intended by the manufacturer
will void warranty.
The following products and tools are
mandatory for proper installation:
• Back Box with pre-assembled Aluminum
Frame. Installation without iRoom's
back box voids warranty!
• Prepared wiring
• Screwdriver Slotted
(only for touchDock;
not needed for touchDock mini)
• Screwdriver Phillips #2
• Screwdriver Torx 10
• Wire stripper and cutter
• Free App is required to configure the
touchDock

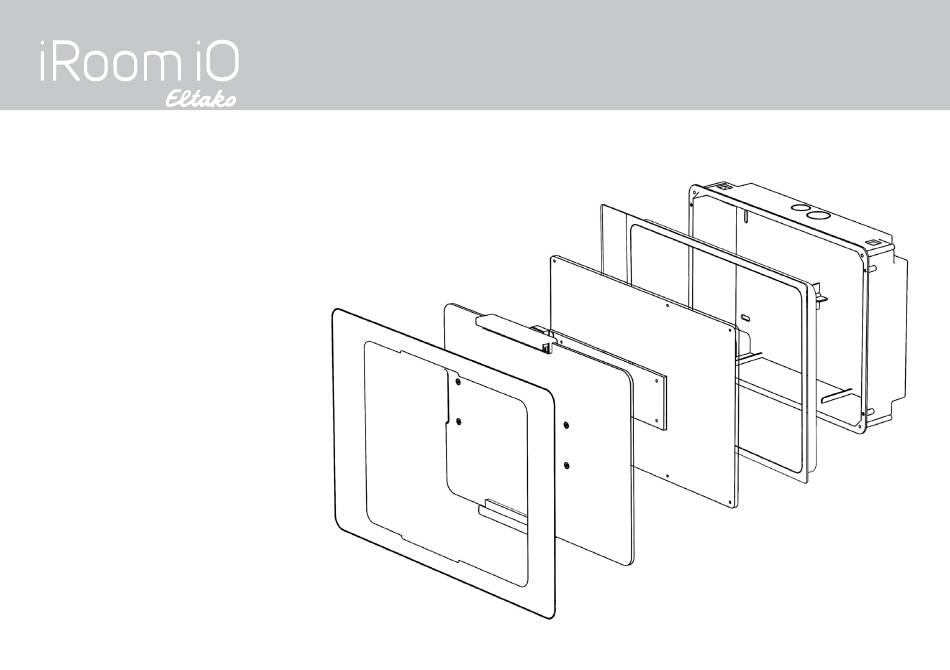

Aluminum Frame
(attached to Back Box)
Glass Panel
Magnetic Glass Frame
Back Box
Docking Station
