Back Box Installation in Masonry

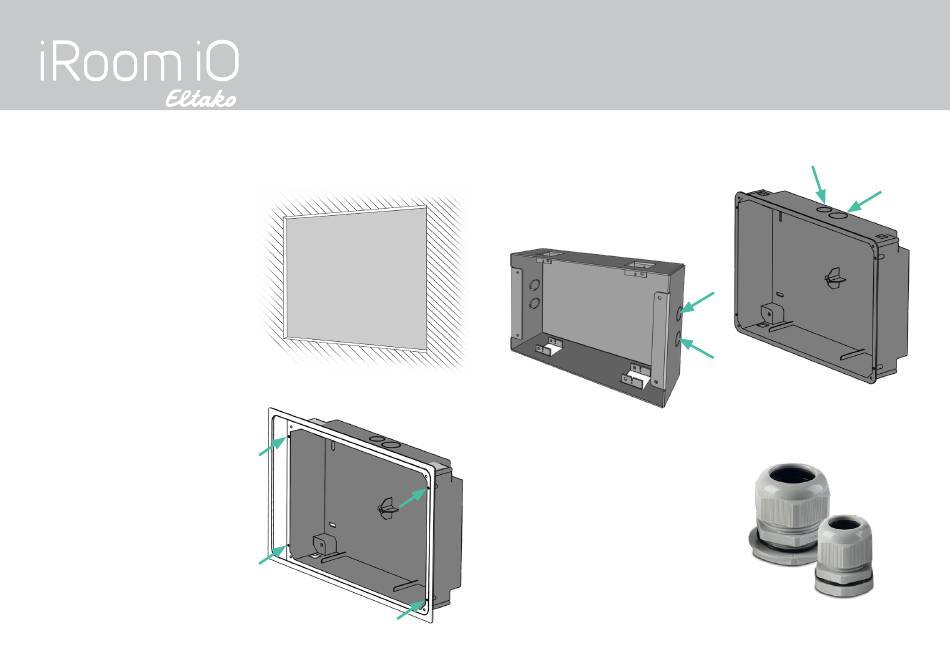

1. Prepare the recess in the wall
using the included cut-out
template. See also cut-out
dimensions on page 24.
2. Unscrew the 4 screws to
detach the aluminum frame
from the plastic back box
3. Remove the knockout(s) for the
power cable from the back box.
touchDock-mini
Back Box
4. Feed the power cable and/
or network cable through the
openings in the back box. Use
the included cable fittings that
provide strain-relief.
touchDock
Back Box
