MANUAL

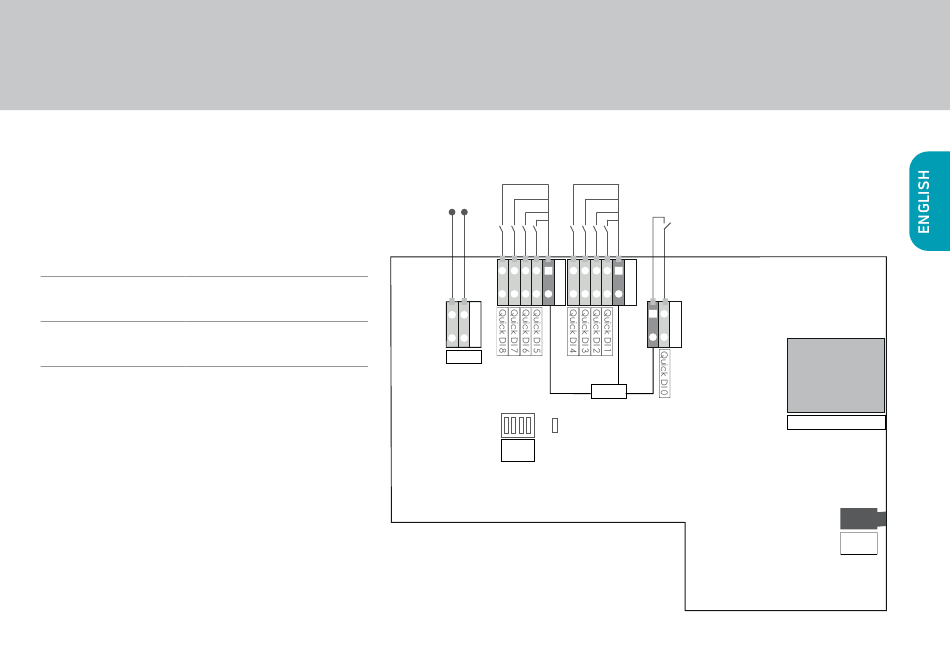

Main Board Schematic
Before installation please become familiar with the
main PCB of your docking station.
Relay & Terminals
Relay0 Contact Rating
30VDC, 1A / 125VAC, 0.3A
(resistive)
Terminal Specifications
26-20 AWG / 0.13-0.52 mm²
(9 x DI / 1 x DO)
Page 25
Relay
GND
4 3 2 1
LED
off
on
DIP
SWITCH
for iRoom's touchDock
RJ45 PoE+ (IEEE802.3at)
Audio
3,5 mm
