SOLARWATT AC-Sensor Flex Installationsanleitung Seite 37

1 2 3
On On On On
On On On Off
On On Off On
On On Off Off
On Off On On
On Off On Off
On Off Off On
On Off Off Off
Subject to changen | © 2021 Solarwatt GmbH

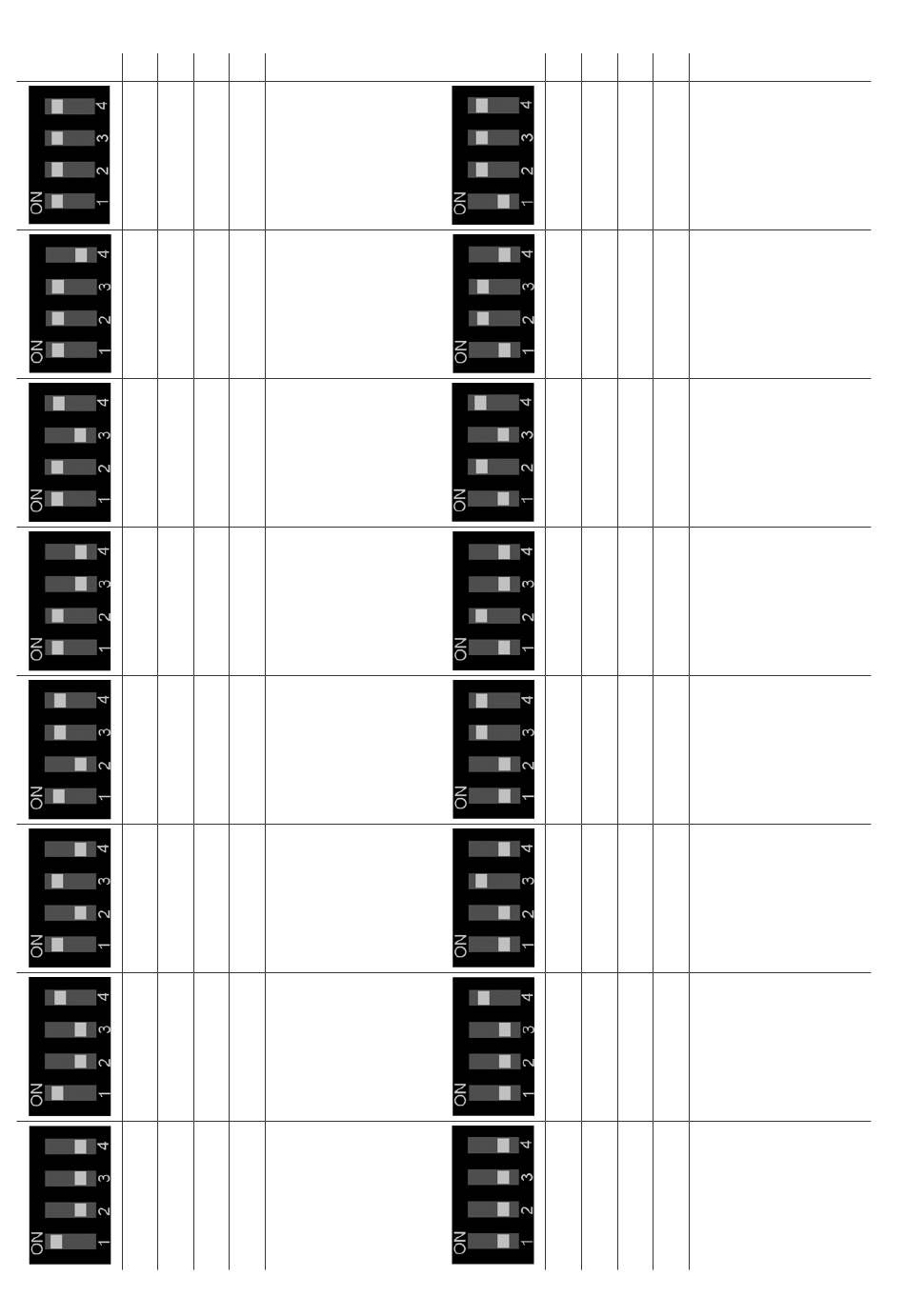

4 Measurement
Direct measurement
max. 63 A/phase
75 A/1 A CT-clamp
100 A/1 A CT-clamp
150 A / 1A CT-clamp
200 A / 1A CT-clamp
250 A / 1A CT-clamp
300 A / 1 A CT-clamp
400A / 1 A CT-clamp
1 2 3 4
500 A / 1 A CT-clamp
Off On On On
1000 A / 1 A CT-clamp
Off On On Off
1500 A / 1 A CT-clamp
Off On Off On
2000 A / 1 A CT-clamp
Off On Off Off
2500 A / 1 A CT-clamp
Off Off On On
3000 A / 1 A CT-clamp
Off Off On Off
4000 A / 1 A CT-clamp
Off Off Off On
4500 A / 1 A CT-clamp
Off Off Off Off
Measurement
37
