CT CLAMP MEASUREMENT
• Mount the ACS in a DIN-rail: hook the device on the upper
edge of the DIN-rail and press down until it clicks in place.
• Connect the ACS according to the relevant wiring diagram
("single ACS", "ACS and MyReserve").
• Select fuse protection for the power supply cables according to
the conductor cross section.

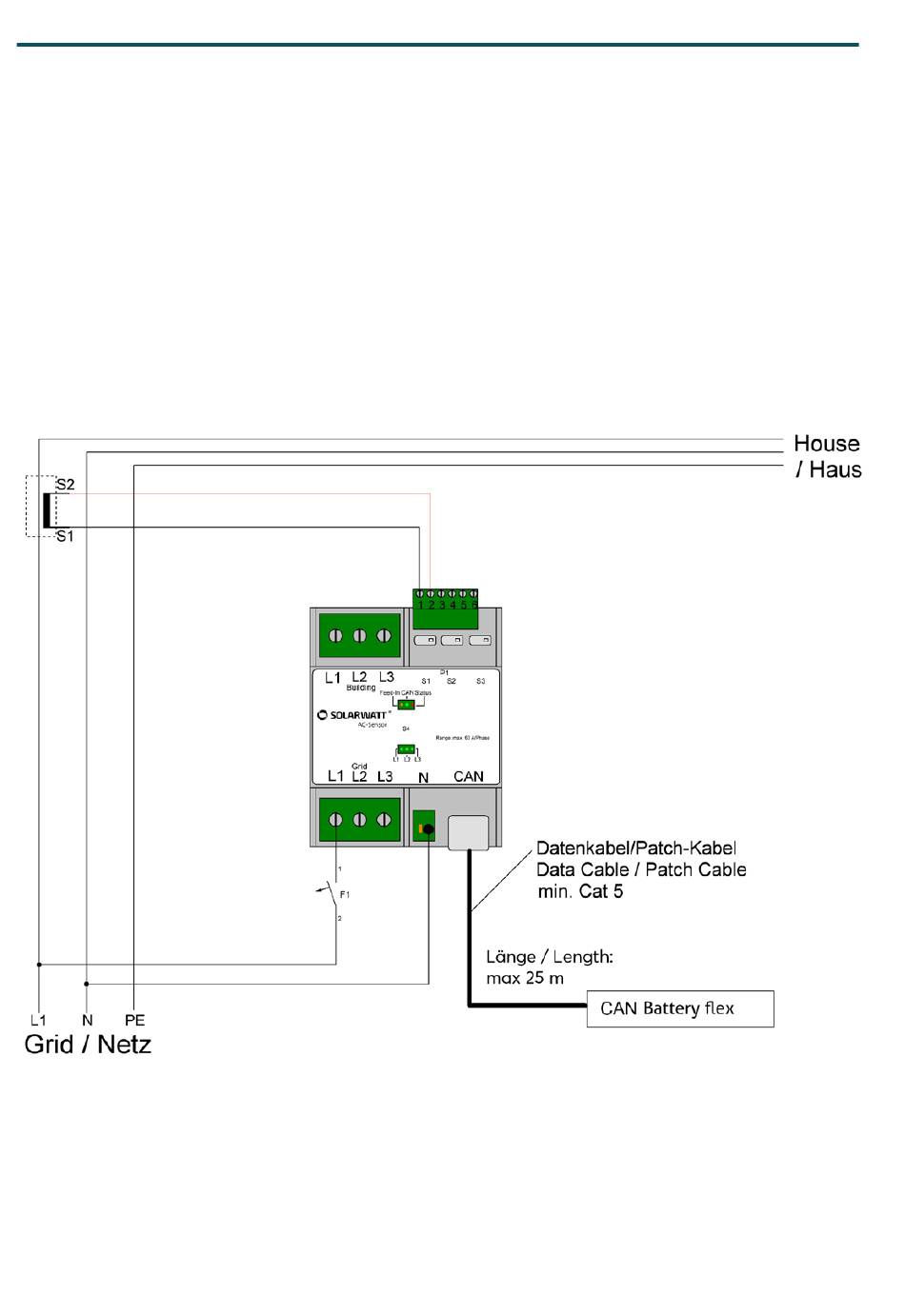

single ACS (1-phase)
