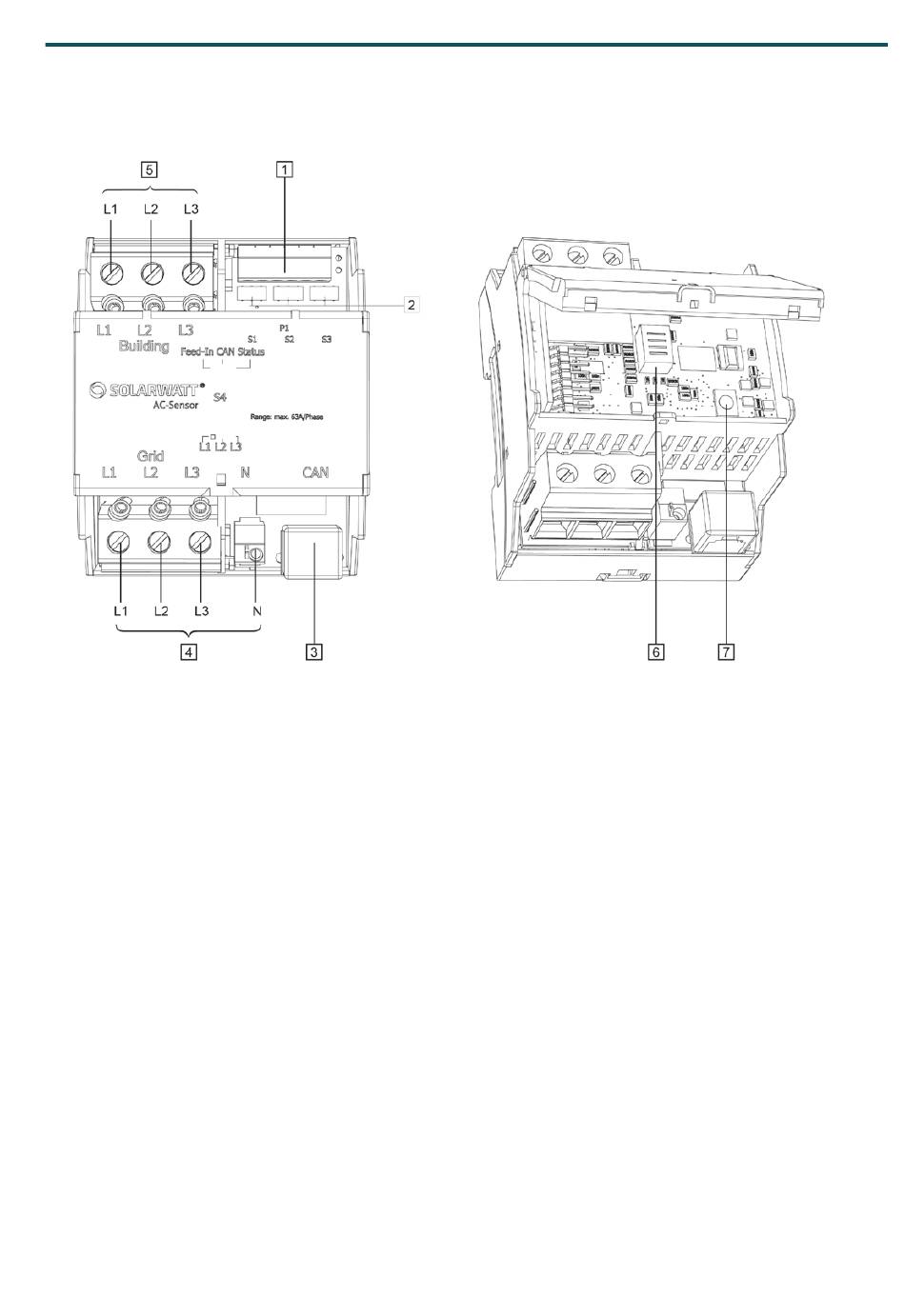

LAYOUT
1 Connection terminal for
external CT-clampsr
2 DIP-switches S1, S2, S3 for
activation of CT-clamp
measurement
3 CAN connection Battery flex
(RJ45)
4 Grid-side connections
5 House-side connections
24
6 DIP-switch S4
Current ratio settings
7 Reset switch
