SOLARWATT AC-Sensor Flex Installationsanleitung Seite 36

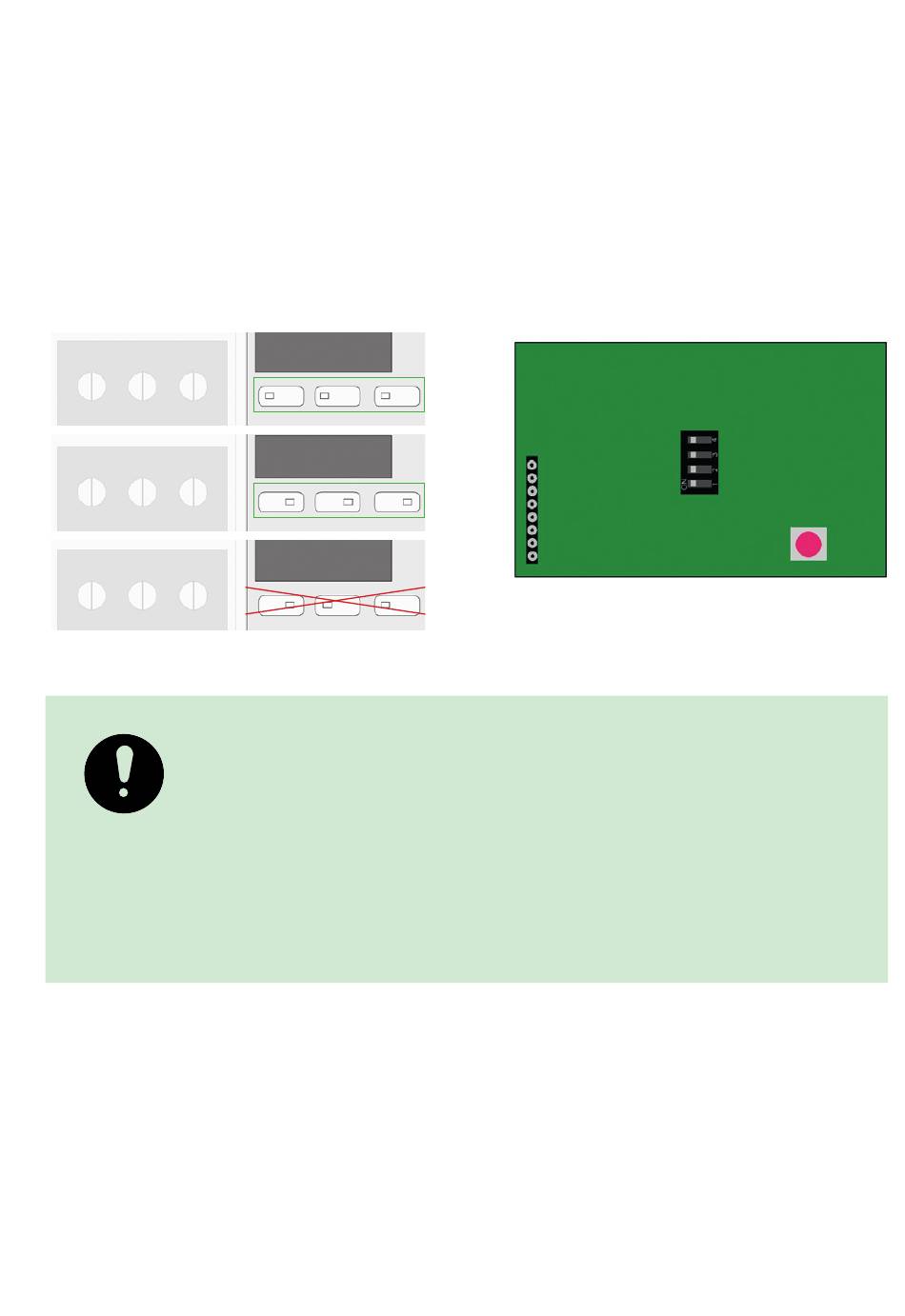

• Activate CT clamp measurement via DIP switches S1, S2 and
S3. All switches must be in the same position (see figure on the
left).
• Set CT clamp ratio via DIP switch S4 (under case cover).
• See setting details in the table.
• Close/secure the case cover using the enclosed cable ties.
Direct measurement
up to max. 63 A/phase
CT clamp measurement
activated
Invalid
switch position
NOTE
The CT clamps must have a secondary current of ≤
1 A and a minimum output power of 0.2 VA.
Observe the current flow direction of the CT
clamps and follow the instructions in the manufac-
turer's installation manual.
36
S1 S2 S3
S1 S2 S3
S1 S2 S3
Subject to change | © 2021 Solarwatt GmbH
S4
