• Establish CAN connection between the Battery flex base and
ACS using a patch cable
NOTE
If you use a network installation cable instead of a
patch cable, the corresponding attachable RJ45
plugs are available from the Solarwatt web shop
(DELOCK 86287 RJ45 plugs).
Make sure that the wires H (wire 1), L (wire 2) and
GROUND (wire 7 or 8) are connected to the Batte-
ry flex base and to the AC Sensor using the same
assignment configuration (see diagram below).
Subject to changen | © 2021 Solarwatt GmbH

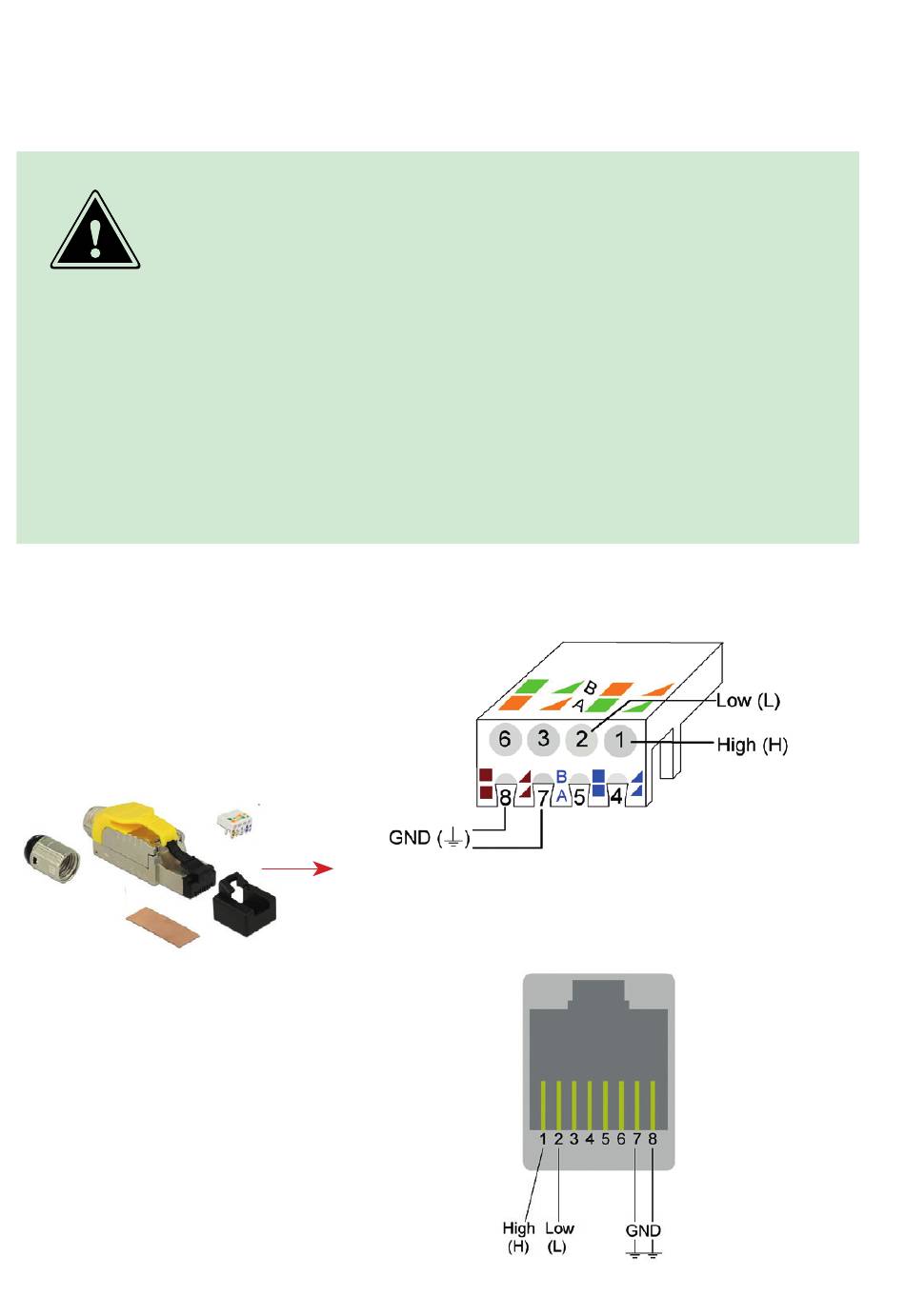

PIN assignment for CAN (RJ45) on the Battery flex base
PIN assignment for CAN (RJ45) on the AC Sensor Flex
