Seite 2

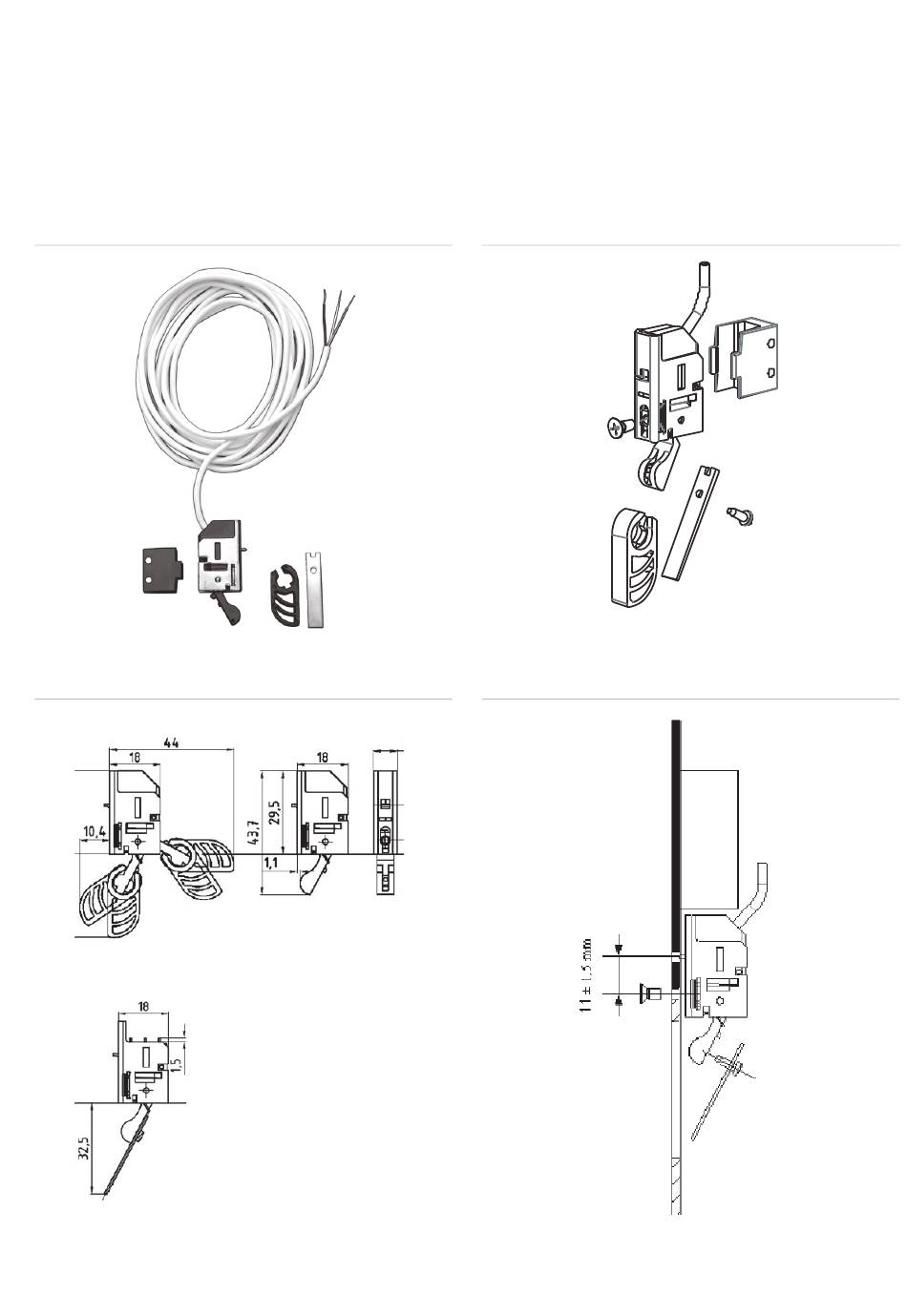

3,5 +/- 2 mm EN: Installation Sheet Mounting location and installation method A schematic drawing can be found in Figure 4. Mounting location The standard installation takes place frontally at the closing The bolt contact is suitable for the mounting at the door closing plate on the door.
Seite 3

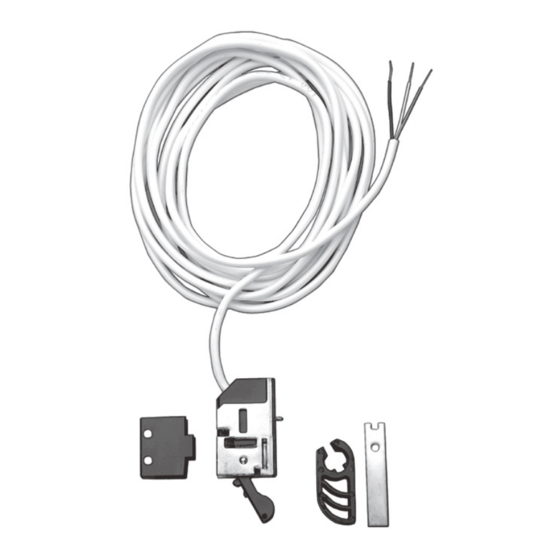

(NC) Single pole NC contact - green (NO) Single pole NO contact - brown Montageort Technical data Der Riegelschaltkontakt ist zur Montage u.a. im SKA-100L Türschließblech zur Verschlussüberwachung der Verriegelung Item No. RK100N-S60 geeignet. Die Betätigung des Riegelschaltkontaktes erfolgt Contact termination Cable LIYY 3 ×...
Seite 4
2002/95/EG entspricht. Kontakt-Informationen Farben: Kontaktinformationen finden Sie auf unserer Webseite: (CO) Gemeinsam - weiss www.interlogix.com. (NC) Öffner - grün (NO) Schliesser - braun Technische Daten SKA-100L Artikel-Nr.: RK100N-S60 Anschlussart Leitung LIYY 3 × 0,14mm² Schutzart nach DIN IP67 40050 VdS Klasse VdS-Nr.
