Construction - Scope Of Delivery - tuxhorn tubra-PGS XL Montage- Und Bedienungsanleitung

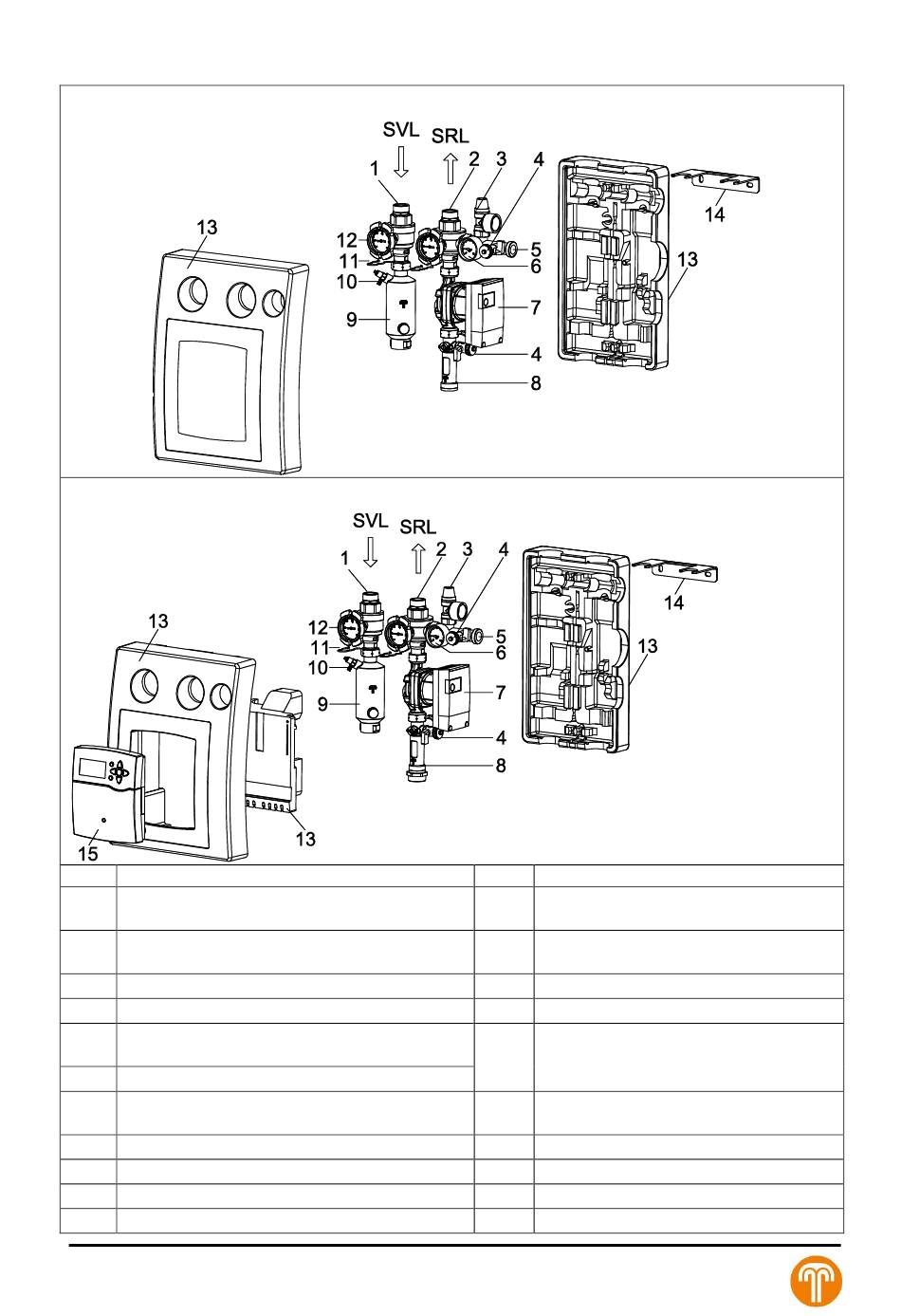

2 C o n s t r u c t i o n - s c o p e o f d e l i v e r y
®
tubra -PGS XL
®
tubra -PGS-C XL
Item Designation
Supply ball valve with integrated
1
Gravity brake
Return ball valve with integrated
2
Gravity brake
3 Solar safety valve, 6 bar
4 Boiler filling and drain valve
Connection to membrane expansion ves-
5
sel
6 Pressure gauge
Circulation pump (depending on the mod-
7
el)
8 Flow meter
8 Volume flow sensor (optional)
®
tubra -air-jet air collector
9
10 Ventilation nipple
Code no. 977.25.02.00
Dated 06/2018
Item Designation
11 Locking spring
12 Dial thermometer
13 Insulation, complete
14 Assembly jig
15 Control unit (only PGS-C XL)
(optional, depending on the model)
SSL Solar supply line
SRL Solar return line
