Water Pipes Connection; Connecting Power Wire; Electric Wiring Diagram - COMFORTPOOL Inverter Pro Benutzer- Und Wartungshandbuch

2.1.

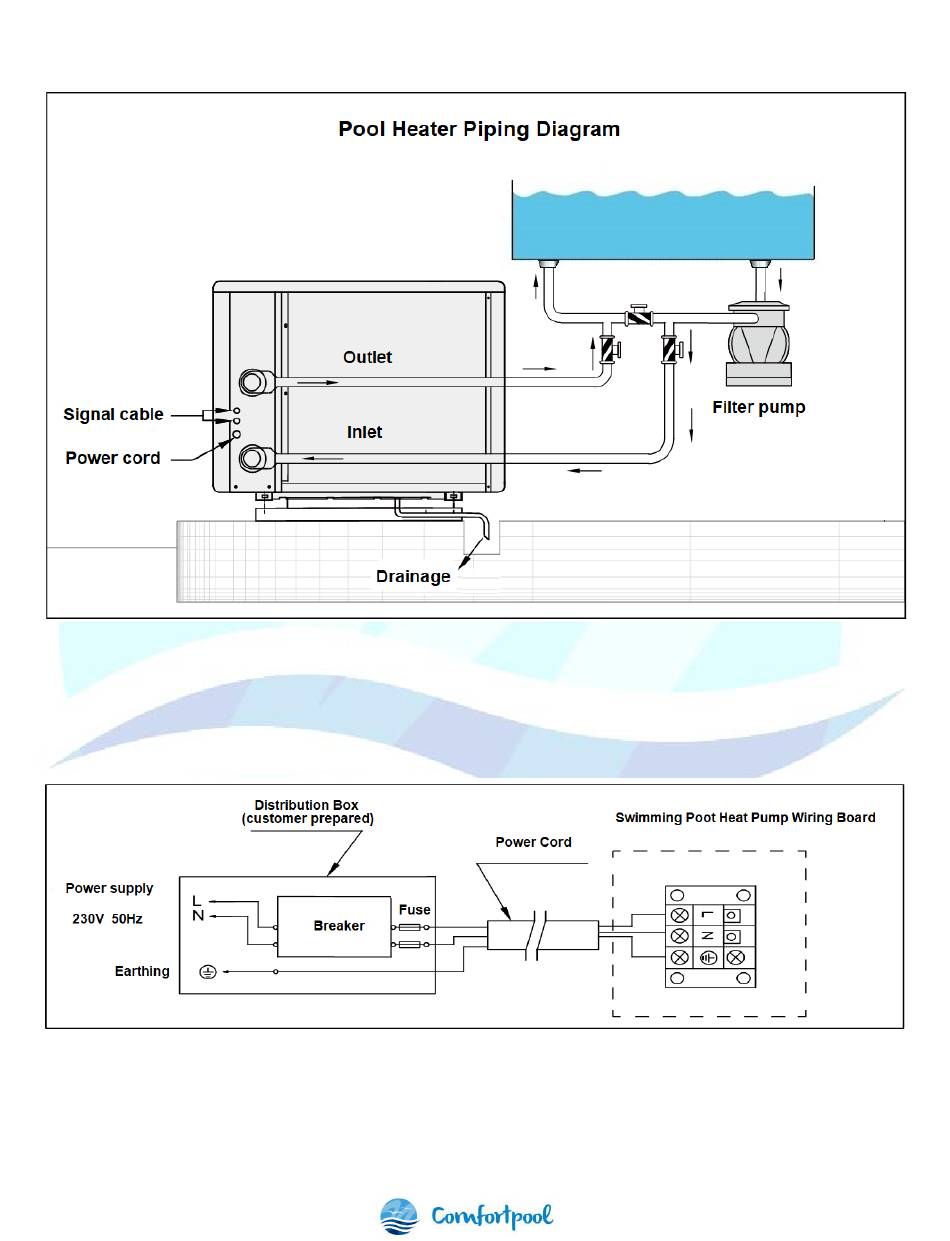

Water pipes connection

* Above drawing is just for demonstration, and the layout of the pipes is only for reference.
2.2.

Connecting power wire

For power supply: 230V 50 Hz
* The swimming pool heater must be earthed well.
2.3.

Electric wiring diagram

Options for protecting devices and cable specification:
