2.4

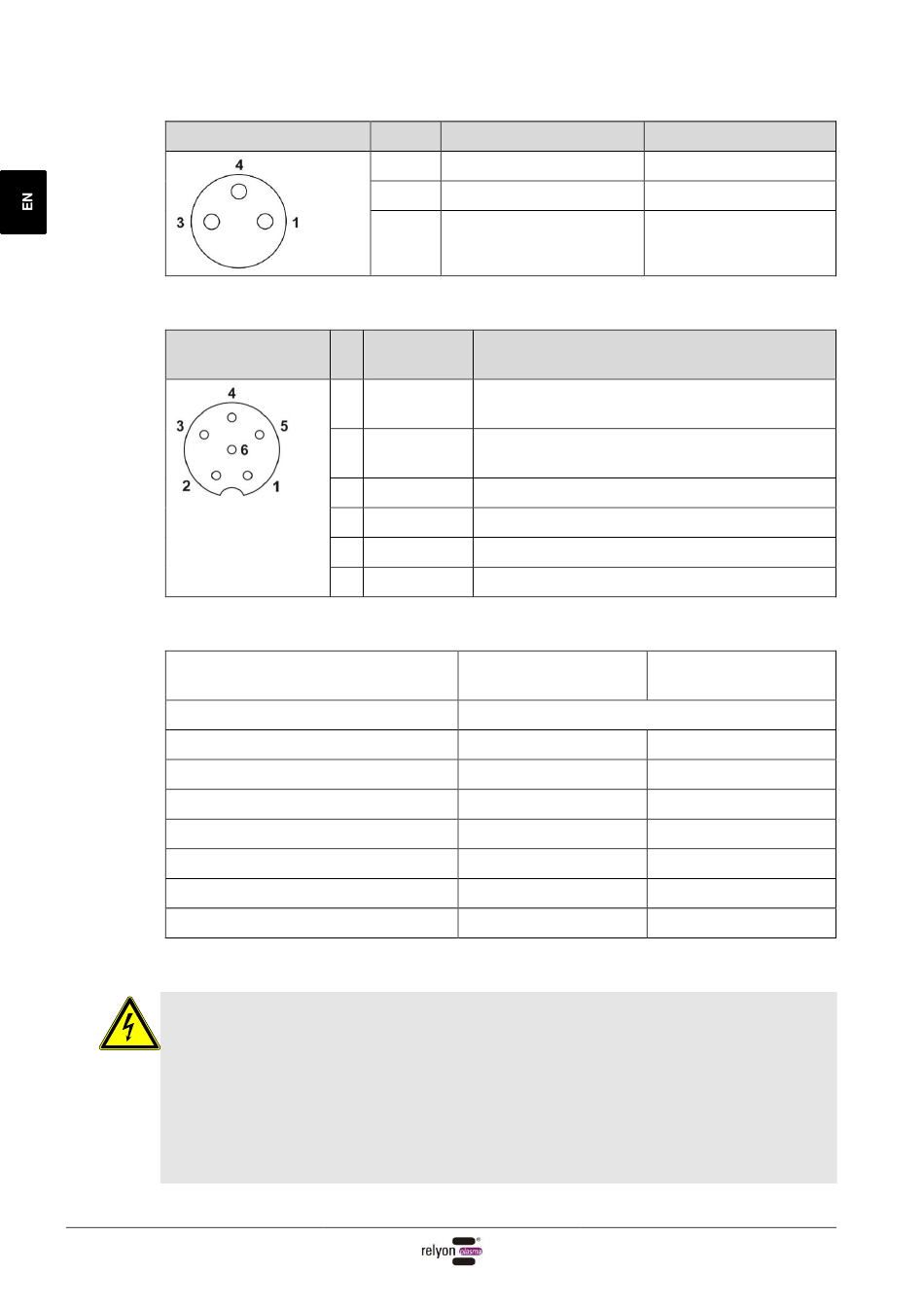

Assignment of connecting lines

The DC connecting line must be assigned as follows:
The communication connecting line must be assigned as follows:
Specification for connecting lines:
Standard
Number of poles
Head shape
DC reference voltage [V]
Reference current [A]
Coding
Cable cross-section
Maximum length
Caution – Electrical voltage!
The wires may only be connected to the power supply unit or control system
by authorised electrically skilled persons!
If there is any visible damage to the wiring:
- do not start up the device;
- arrange to have the damaged parts repaired by a qualified person or
replace them.
12
# Colour
1 brown
3 blue
4 black
# Colou Signal
r
1 brown Plasma on (input 0 to 10 V analogue,
up to 24 V voltage-proof)
2 white Plasma OK (output 0 V / 24 V at max.
20 mA)
3 blue Error (output 0 V / 24 V at max. 20 mA)
4 black Not assigned
5 grey GND
6 pink Not assigned
DC connecting
line
M8 plug connector IEC 61076-2-104
3
Socket/female
60
4
A /Standard
3x 0.25 mm²
30 m
Signal
24V DC
GND
Not assigned
Communication
connecting line
6
Plug/male
30
1.5
A/ Standard
6x 0.14 mm²
30 m
