Description of the device

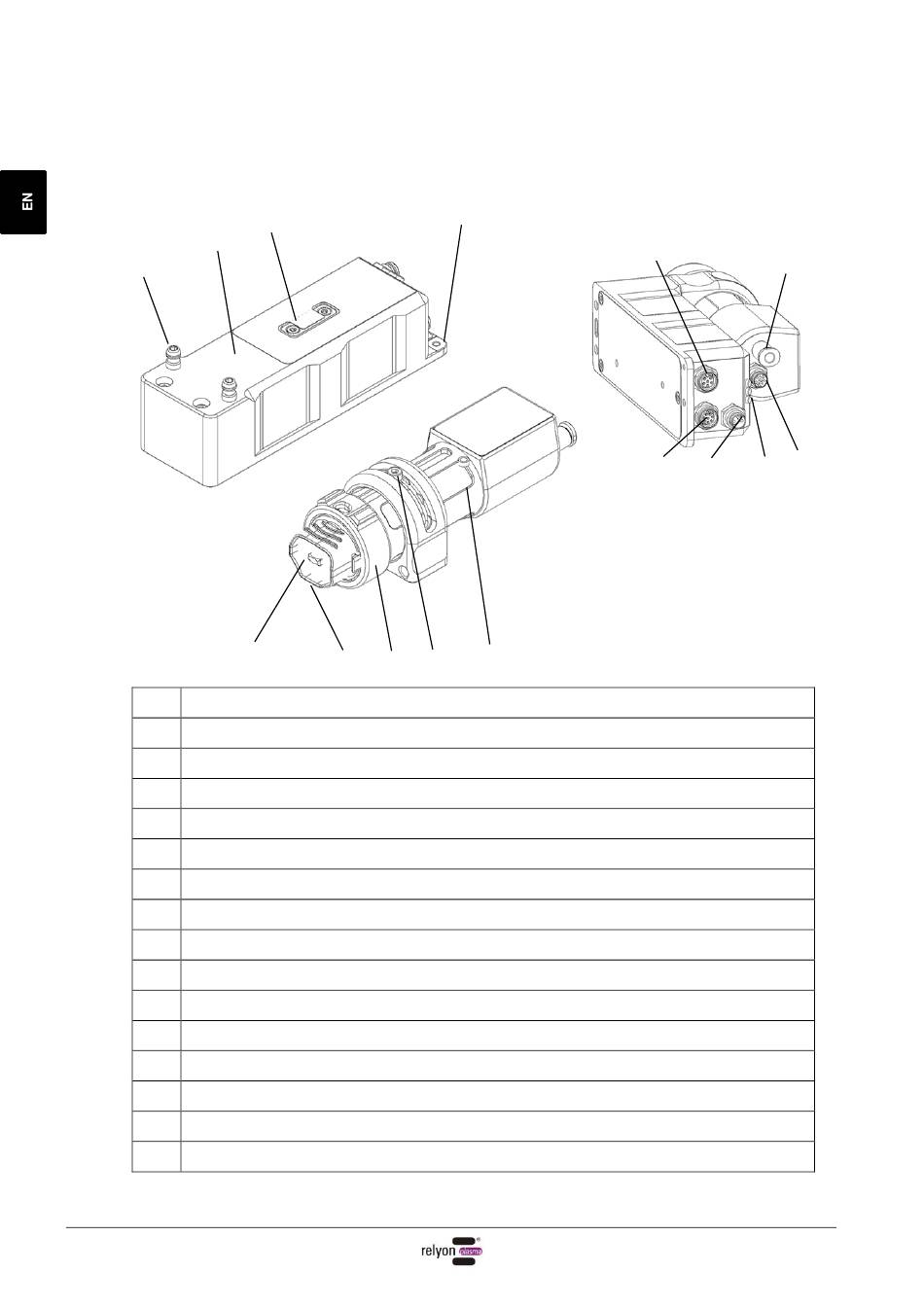

The individual parts of the device are shown and named in the diagram below. These terms
are used at corresponding points in the operating instructions
4
14
No.
Component description
Module 'Standard' (shown here installed in the device; not included)
1
2
Piezo element (firmly installed in the exchange module)
3
Integration unit (module carrier)
4
Integration unit (driver unit)
5
Locking ring
6
CONFIG cover
'Digital I/O' interface
7
'Module out' interface
8
'DC in' interface
9
'Module in' interface
10
'Gas in' interface
11
12
LED status display (3 LED: Plasma / Warning / Error)
13
Adjustment screw for module carrier
14
Locating pins for module carrier
15
Functional earth connection (M3)
10
6
1
5
2
13
15
3
7
11
8
12
10
9
