1. Switch on position. "M " symbol is displayed
2. Insert the test leads into the jacks, the red plug into VmAμA jack and black plug into COM jack
3. Connect the test leads to the circuit under test (see Fig. 4). The resistance value is displayed
4. If the message "O.L" is displayed the higher range is reached
5. For use of HOLD and RANGE functions please refer to chapter 4.2
5.3. Resistance measurement
CAUTION
Before taking resistance
measurements in circuit
remove power from the circuit
being tested and discharge
all capacitors.

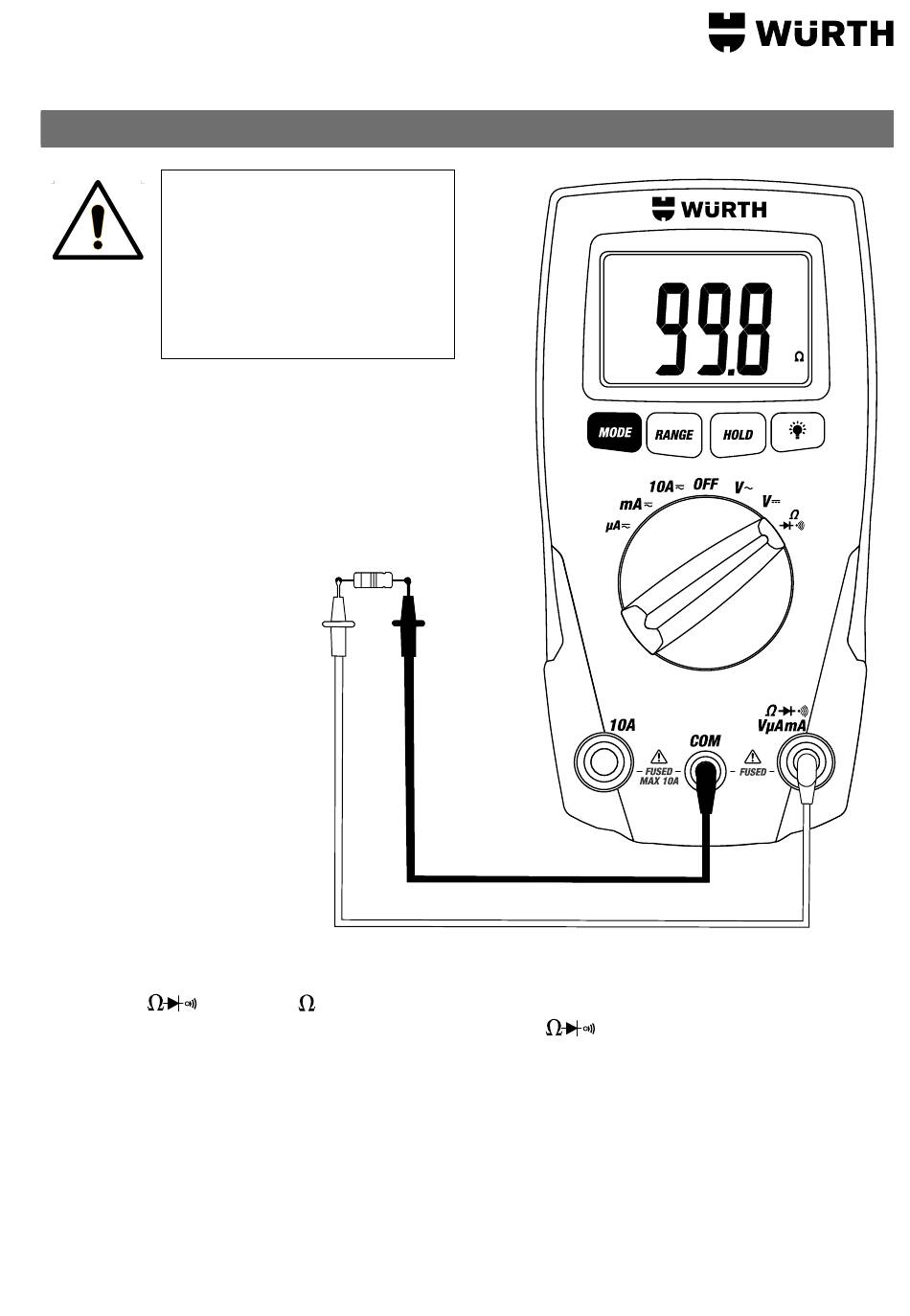

Fig. 4:
Using the instrument
for Resistance measurement
AUTO
MAX 200mA
