5.1. Equal voltage measurement-DC

CAUTION
The maximum input for DC
voltage is 600V. Do not
attempt to measure higher
voltages to avoid electrical
shocks or damages to the
instrument.
1. Switch on V position. "DC" symbol is displayed
2. Insert the test leads into the jacks, the red plug into VmAμA jack and black plug into COM jack
3. Connect the red and black test leads to the positive and negative poles of the circuit under test respec-
tively (see Fig. 2). The voltage value is displayed
4. If the message "O.L" is displayed the higher range is reached
5. The symbol "-" on the instrument display indicates that voltage has opposite direction with regard to the
connection of Fig. 2
6. For use of HOLD and RANGE functions please refer to chapter 4.2

5. Operating instructions

+
-

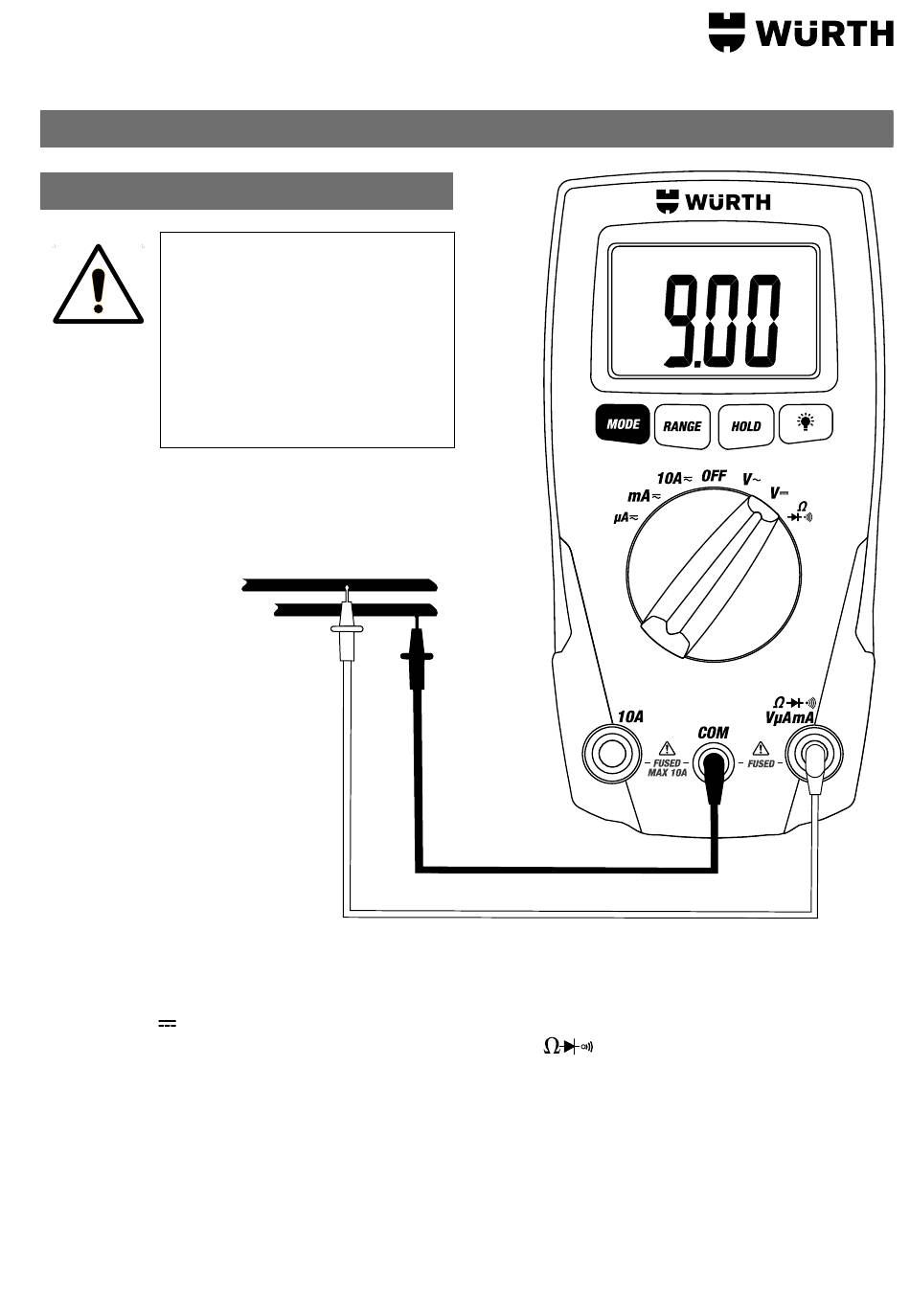

Fig. 2:
Using the meter for
equal voltage measurement-DC
AUTO
DC
MAX 200mA
V
